Startech 8 Port 1u Rackmount Dvi Usb Kvm Switch - Usb Dvi Kvm Switch - Dvi Kvm Switch - Usb Kvm
QUICK OVERVIEW
Overview

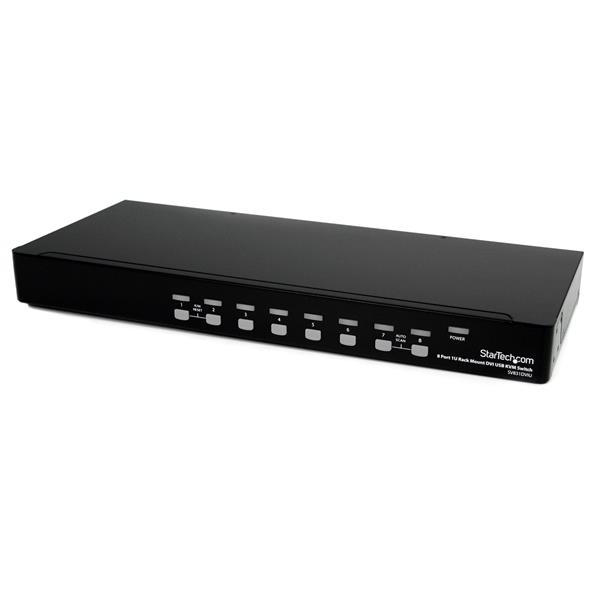

The SV831DVIU 8-Port 1U Rack Mount DVI USB KVM Switch lets you control up to 8 USB-connected computers (each with DVI or HDMI display output) from a single keyboard, mouse and monitor.
The KVM switch offers maximum control, allowing you to switch computers using hot-key commands or front panel push-buttons. Supporting digital resolutions up to 1920x1200 via DVI or HDMI connection (using DVI to HDMI adapter - see accessories), the KVM provides the high resolutions recommended for newer displays, allowing you to take full advantage of your monitor/screen capability.
A perfect addition to any server room or software test lab, this rugged 8-port switch can be rack-mounted into 1U of cabinet space.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note: This KVM supports digital signals only, and cannot be used with DVI-to-VGA adapters.
The StarTech.com Advantage
- High-resolution 1920x1200 DVI connections support control of DVI systems or HDMI systems (with adapter)
- Supports wireless and combo style mouse and keyboard sets for added flexibility
- Rugged, solid steel rack-mountable case offers durability even in harsh environments
| Connector(s) | |
| Console Interface(s) | DVI-I (29 pin) Female |
| USB Type-A (4 pin) USB 2.0 Female | |
| Host Connectors | DVI-I (29 pin) Female |
| USB B (4 pin) Female | |
| Environmental | |
| Humidity | 0~80%RH |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Storage Temperature | -20?C to 60?C (-4?F to 140?F) |
| Hardware | |
| Audio | No |
| Cables Included | No |
| Daisy-Chain | No |
| KVM Ports | 8 |
| Number of Monitors Supported | 1 |
| PC Interface | USB |
| PC Video Type | DVI |
| Rack-Mountable | Yes |
| U Height | 1U |
| Packaging Information | |
| Shipping (Package) Weight | 4 kg [8.8 lb] |
| Performance | |
| DVI Support | Yes - Single Link |
| Hot-Key Selection | Yes |
| IP Control | No |
| Maximum Analog Resolutions | 1920 x 1200 |
| Maximum Cable Length | 4.6 m [15 ft] |
| Maximum Number of Users | 1 |
| MTBF | 45, 254 Hours |
| On-Screen Display | No |
| Port Selection Support | Push Button and Hotkeys |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Height | 44 mm [1.7 in] |
| Product Length | 180 mm [7.1 in] |
| Product Weight | 3500 g [123.5 oz] |
| Product Width | 438 mm [17.2 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 1.8A |
| Input Voltage | 110V-240V AC |
| Output Current | 4A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 48 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| Special Notes / Requirements | |
| Note | Supports SUN keyboard emulation |
| What's in the Box | |
| Included in Package | 8 Port DVI USB KVM Switch |
| Set Rack-mount brackets | |
| Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand | |
| User Manual | |
| Marketing Text | The SV831DVIU 8-Port 1U Rack Mount DVI USB KVM Switch lets you control up to 8 USB-connected computers (each with DVI or HDMI display output) from a single keyboard, mouse and monitor. |
| PI Date | Jan 2018 |
| Brand Name | Startech |
| Manufacturer Web Site | http://www.startech.com |
| Product Type | KVM Switch |
| Form Factor | 1U |
| No. of Computers | 1 |
| No. of Users | 1 |
| No. of Ports | 8 |
| Graphics Resolution Supported | 1920 x 1200 |
| Enclosure | Steel |
| Depth (mm) | 180.0 |
| Height (mm) | 44.0 |
| Width (mm) | 438.0 |
| Weight (Kg) | 3.5 |
| Color | Black |
| Cable Length | 4.6meter |
| Operating Temperature | 0 to 40°C |
| Product Includes | * 1 - 8 Port DVI USB KVM Switch * 1 - Set Rack-mount brackets * 1 - User Manual |
| Compliance Standards | * RoHS |
| Other Features | * MTBF: 45254 Hours * Front panel push-buttons and Hot-key functions allow for easy switching |
| Warranty Information | 3 Years |
