Startech 8 Port Usb-to-serial Adapter Hub - Usb To Rs232 Serial Portadapter With Daisy Chain -
SKU
234651
Brand
MPN
ICUSB23208FD
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$517.00
Buy Now And Earn 517 Reward Points!
QUICK OVERVIEW

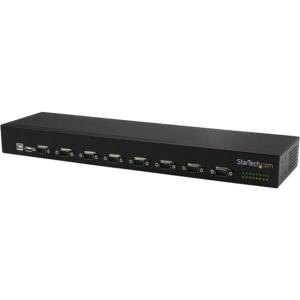

Rackmount - RS232 Multiplexer - Serial Converte ICUSB23208FD
Convert a single USB port into eight serial ports, and connect multiple hubs together for a scalable solution
| .jpg) |
A scalable solution for changing needs This rack-mountable USB serial hub (FTDI) lets you add eight serial ports (RS232), with full control from your desktop or laptop computer system using a single USB port. The daisy-chain function gives you a cost-effective and scalable way to increase your serial port count and expand as your needs grow, without investing in a more expensive serial hub. Providing full control of your serial components from a single device, the USB serial hub is ideal for a multitude of applications including industrial automation, self-serve automated kiosks, and monitoring of cameras and security systems. |  |
 | Built-in convenience The hub features COM port retention, which retains the assigned serial COM port values. This ensures that the same values are automatically re-assigned to the port provided by the adapter, in the event it is disconnected and re-connected to the host computer. The hub features a reliable FTDI USB-to-serial chipset, which provides easy installation into a broad range of operating systems. |
Meets the demands of industrial environments With its all-metal chassis, this rugged, rack-mountable hub fits into standard 19-inch server storage racks to provide an efficient industrial serial solution. It supports an extended operating temperature range of -40°C to 85°C (-40°F to 185°F), ensuring reliable performance even in the harshest environments. The USB-serial hub includes both an AC adapter and terminal block power, providing versatile power options. The ICUSB23208FD is backed by a StarTech.com 2-year warranty and free lifetime technical support. |  |
Applications
- Ideal for industrial automation on factory and manufacturing floors
- Provides full control of your server room serial components from a single device
- Control and monitoring of surveillance and security cameras and systems
- Self-service automated machines and kiosks (grocery, airport) to control serial devices such as scales, touchscreens, magnetic-card readers, barcode scanners, receipt printers, label printers
- POS control of keyboards, cash drawers, receipt printers, card readers and card swipes, scales, and elevated displays on poles
- Bank teller workstations, in either full-profile or low-profile versions, to control serial devices such as cash drawers, card readers and card swipes, printers, keypads and pin pads, pen pads
| Packaging Information | |
| Shipping (Package) Weight | 2100 g [74.1 oz] |
| Performance | |
| Data Bits | 7, 8 |
| FIFO | 256 Bytes |
| Max Baud Rate | 921.6 Kbps |
| Maximum Data Transfer Rate | 480 Mbps |
| Parity | Odd, Even, Mark, Space, None |
| Serial Protocol | RS-232 |
| Stop Bits | 1, 2 |
| Physical Characteristics | |
| Cable Length | 900 mm [35.4 in] |
| Color | Black |
| Enclosure Type | Aluminum |
| Product Height | 45 mm [1.8 in] |
| Product Length | 430 mm [16.9 in] |
| Product Weight | 1365 g [48.2 oz] |
| Product Width | 120 mm [4.7 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 1.5 A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 3 A |
| Output Voltage | 12 DC |
| Plug Type | B |
| Power Consumption (In Watts) | 36 |
| What's in the Box | |
| Included in Package | 18 in. [46 mm] USB 2.0 cable |
| 8-port USB to RS232 hub | |
| DIN-rail mounting brackets | |
| DIN-rail mounting screws | |
| driver CD | |
| nuts | |
| quick-start guide | |
| rack-mounting brackets | |
| rack-mounting screws | |
| terminal block plug | |
| universal power adapter (NA/JP, UK, EU, ANZ) | |
| Indicators | |
| LED Indicators | Data Transmit |
| Data Receive | |
| Hardware | |
| Ports | 8 |
| Port Style | External Hub |
| Interface | Serial |
| Chipset ID | FTDI - FT4232 |
| Bus Type | USB 2.0 |
| Environmental | |
| Storage Temperature | -65?C to 150?C (-85?F to 302?F) |
| Operating Temperature | -40?C to 85?C (-40?F to 185?F) |
| Humidity | 20~80% RH (Non-condensing) |
| Connector(s) | |
| Connector Type(s) | USB B (4 pin) Female |
| DB-9 (9 pin, D-Sub) Male | |
| What's in the Box | |
| Included in Package | washers |
