Optex Curtain Pir 5M Adj Stack Balcony Anti-Mask Pet IP55 Wireless Opt -2Yrs 8700
SKU
424344
Brand
MPN
8700
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$190.00
Buy Now And Earn 190 Reward Points!

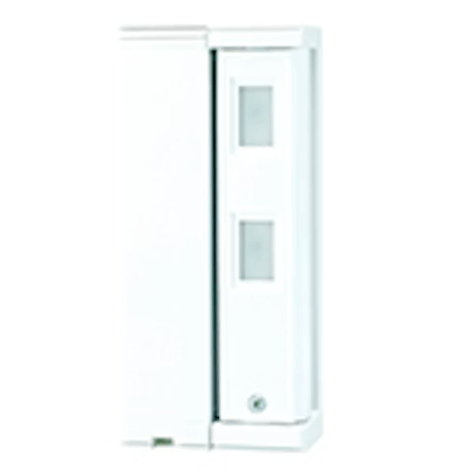

FTN-RAM Wireless outdoor curtain PIR with antimasking.
The FTN series provides a short range curtain detection that can be adjusted with a switchable lens up to 2m or up to 5m which is ideal to protect front door, windows and balconies. The FTN-RAM is a battery-operated and anti-masking model whose detachable backbox can accommodate most wireless transmitter available on the market.
The FTN-RAM doesn't require any cable or wire at all to be installed. The low-current sensor is powered by batteries (not provided) which can last up to 3 years and has a backbox big enough to accommodate most wireless transmitters available on the market. The FTN-RAM can be easily added onto a wireless alarm panel and extend the protection of the house or building to the outside.
- Super Multi Dimension Analysis Logic
- Adjustable detection range 2 and 5m
- Animal tolerant and digital analysis
- Battery-powered suitable for wireless transmitters
The FTN series provides a short range curtain detection that can be adjusted with a switchable lens up to 2m or up to 5m which is ideal to protect front door, windows and balconies. The FTN-RAM is a battery-operated and anti-masking model whose detachable backbox can accommodate most wireless transmitter available on the market.
The FTN-RAM doesn't require any cable or wire at all to be installed. The low-current sensor is powered by batteries (not provided) which can last up to 3 years and has a backbox big enough to accommodate most wireless transmitters available on the market. The FTN-RAM can be easily added onto a wireless alarm panel and extend the protection of the house or building to the outside.
- Super Multi Dimension Analysis Logic
- Adjustable detection range 2 and 5m
- Animal tolerant and digital analysis
- Battery-powered suitable for wireless transmitters
| Weight | 190g |
| Power input | 2.5~10VDC |
| Sensitivity | 2.0°C (at 0.6 m/s) (3.6°F (at 2'/s)) |
| Alarm Period | 2.0 (+/- 1sec) |
| LED indicator | Enable: During DIP switch 1 (WALK TEST MODE) or DIP switch 4 (LED) ON Disable: During normal operation Light/Blink: Warm-up, alarm, masking detection (FTN-RAM only) |
| Alarm output (R) | N.C./N.O. Selectable-Solid State Switch 10 VDC 0.01 A (max.) |
| DETECTION METHOD | Passive IR |
| Detectable speed | 0.3~1.5 m/s |
| Detection Coverage | 2 m, 5 m (6'7", 16'5") |
FTN-RAM Wireless outdoor curtain PIR with antimasking.
