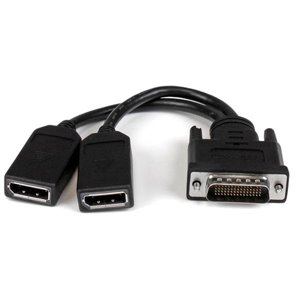

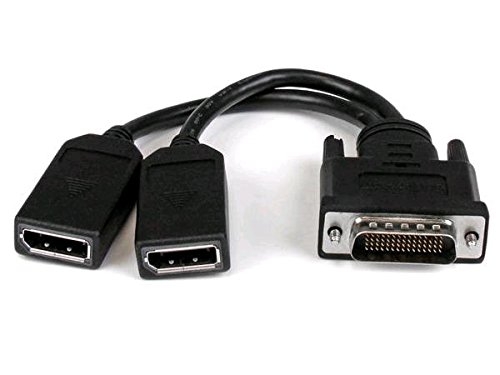

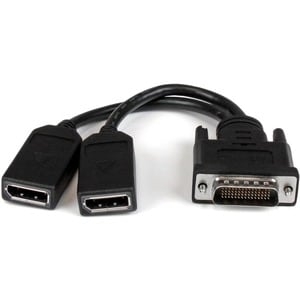

8in Dms-59 To Dual DisplayPort Cable DMSDPDP1
SKU
223646
Brand
MPN
DMSDPDP1
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$41.00
Buy Now And Earn 41 Reward Points!
QUICK OVERVIEW
gnal From Dms/Lfh 59/Lfh 60 Graphics Card To 2x DP Monitors/displays - Dms 59 To DP Cable Works W/ Ati Radeon X1300/Nvidia Quadro Nvs 440 DMSDPDP1
StarTech.com 8" DMS-59 to Dual DisplayPort Adapter Cable, 4K x 2K, DMS 59 pin (M) to 2x DP 1.2 (F) Splitter Y Cable, LFH to 2x DP Monitors - 7.8in DMS-59 to Dual DisplayPort adapter; 4K x 2K (3840x2160p 60Hz)/21.6Gbps/HBR2 - Y-cable to split the video signal from DMS/LFH 59/LFH 60 graphics card to 2x DP monitors/displays - DMS 59 to DP cable works w/ ATI Radeon X1300/NVIDIA Quadro NVS 440
| Cable Length | 20.32 cm |
| Product Type | A/V Cable |
| Shielding | Yes |
| Brand Name | StarTech.com |
| Cable Characteristic | Splitter Cable |
| Cable Type | DMS-59/DisplayPort |
| Connector Type on First End | DMS-59 Video - Male |
| Connector Type on Second End | DisplayPort 1.2 Digital Audio/Video - Female |
| Product Color | Black |
| Color Family | Black |
| Manufacturer Part Number | DMSDPDP1 |
| Manufacturer Website Address | http://www.startech.com/au |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | 8in LFH 59 Male to Dual Female DisplayPort DMS 59 Cable |
| Compatibility | • AMD Fire ProW9100/8100, NVS 810/510 Graphic Card • Microsoft- Surface Pro 1-6 |
| Environmentally Friendly | Yes |
| REACH Declaration URL | https://media.startech.com/cms/pdfs/dmsdpdp1_rohs.pdf |
| EU RoHS Declaration URL | https://media.startech.com/cms/pdfs/dmsdpdp1_rohs.pdf |
| End of Life Manual Availability | Yes |
| REACH free of SVHC | Yes |
| WEEE Statement | https://media.startech.com/cms/pdfs/dmsdpdp1_weee.pdf |
| Weight (Approximate) | 79.4 g |
| Shipping Height | 17.02 mm |
| Shipping Width | 145.03 mm |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Conductor | Copper |
| Data Transfer Rate | 21.6 Gbit/s |
| Device Supported | MacBook Air, Graphics Card, MacBook Pro, Monitor, Tablet, Audio/Video Device |
| Features | Strain Relief, Multi-Stream Transport (MST) Support, Molded, Fray Resistant, Flexible, EMI Protection, Damage Resistant |
| Connector Plating | Nickel |
| American Wire Gauge | 32 AWG |
| Supported Resolution | 3840 x 2400 |
| Connector on First End Details | 1 x 59-pin DMS-59 Video - Male |
| Connector on Second End Details | 2 x 20-pin DisplayPort 1.2 Digital Audio/Video - Female |
| Shipping Dimensions | Height 1.5, Width 6.5, Length 21.5, Shipping Weight 0.08 KG |
8in DMS-59 to Dual DisplayPort Cable
