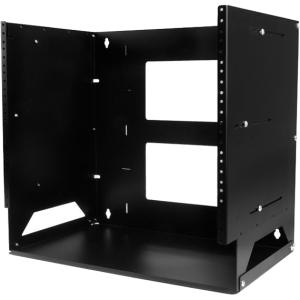

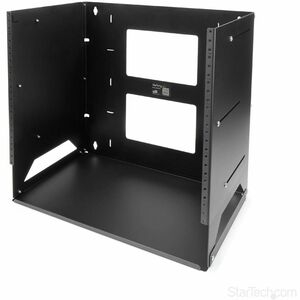

Startech Wall-mount Server Rack With Built-in Shelf - Solid Steel - 8u Wallshelf8u

Name: Startech Wall-mount Server Rack With Built-in Shelf - Solid Steel - 8u Wallshelf8u
Brand: Startech
SKU: 234676
Price: 295 AUD
Availability: InStock

SKU

234676

Brand

Startech

Manufacturer Link

MPN

WALLSHELF8U

Manufacturer Product Link

Warranty

Standard Manufacturer's Warranty

Availability

Preorder (Contact Us)

Freight Estimate

$295.00

Buy Now And Earn 295 Reward Points!

View larger

Customize Your Setup

The wall-mount bracket features a dual-position 12 in. shelf, that depending which way you mount the rack, can be positioned at either the top or the bottom. This shelf gives you a stable surface for placing equipment that's not rack-mountable or storing your tools. Because the shelf can be positioned at either the top or the bottom of your rack, it gives you the freedom to customize your workspace depending on height or applications.

The rack also has adjustable mounting depth from 12 in. to 18 in. enabling you to define the depth that exactly fits your equipment, plus any space you'd like to have for cabling, ensuring that the rack does not take up any more space than it has to.

View larger

Make The Most Of Your Available Space

The 8U rack optimizes your working space by mounting equipment to your wall instead of taking up desk or floor space -- perfect for your SoHo (small office, home office) environment, server room or any other location with limited space available.

View larger

Mount your server, network and telecom devices to the wall

- 1 back plate

- 1 right bracket

- 1 left bracket

- 1 shelf bracket

- 2 adjustable rails

- 16 10-32 x 3/8 screws

- 24 10-32 mounting screws

- 1 mounting template

- 6 wood screws

- 1 instruction manual

Customize your setup with a built-in shelf that can be positioned at either the top or the bottom of the rack
Save space in your office or server room by mounting IT or AV equipment to the wall
Hassle-free setup with 10-32 tapped rails, enabling you to mount your equipment directly to the rail without cage nuts
8U wall-mount design
Constructed to meet the EIA-310 19" rack standards
Adjustable mounting depth, from 12 in. to 18 in

Hardware
Additional Required Tools	Phillips Screwdriver
Adjustable Mounting Rails	No
Cable Management	No
Casters	No
Fan(s)	No
Frame Type	Open Frame
Industry Standards	EIA RS310-C
	EIA-310-D
Ladder Type	L-Shape
Mounting Holes	Circle, Threaded
Number and Type of Included Cage Nuts	10-32
Rack Type	2-Post
Tools Included	No
U Height	8U
U Markings	No
Wallmountable	Yes
Packaging Information
Flat Pack (Assembly Required)	Yes
Shipping (Package) Weight	12 kg [26.4 lb]
Performance
Ventilation Capacity	Open Frame
Weight Capacity (Stationary)	34 kg [75.2 lb]
Physical Characteristics
Color	Black
Enclosure Type	Steel
External Depth	307 mm [12.1 in]
External Height	446 mm [17.6 in]
External Width	485 mm [19.1 in]
Internal Depth	453 mm [17.8 in]
Internal Length	457.2 mm [18 in]
Internal Width	475 mm [18.7 in]
Minimum Mounting Depth	453 mm [17.8 in]
Product Height	446 mm [17.6 in]
Product Length	307 mm [12.1 in]
Product Weight	9850 g [347.7 oz]
Product Width	485 mm [19.1 in]
Rail Thickness	2 mm [0.1 in]
What's in the Box
Included in Package	10-32 mounting screws
	10-32 x 3/8 screws
	adjustable rails
	wood screws
	shelf bracket
	right bracket
	mounting template
	left bracket
	instruction manual
	back plate
