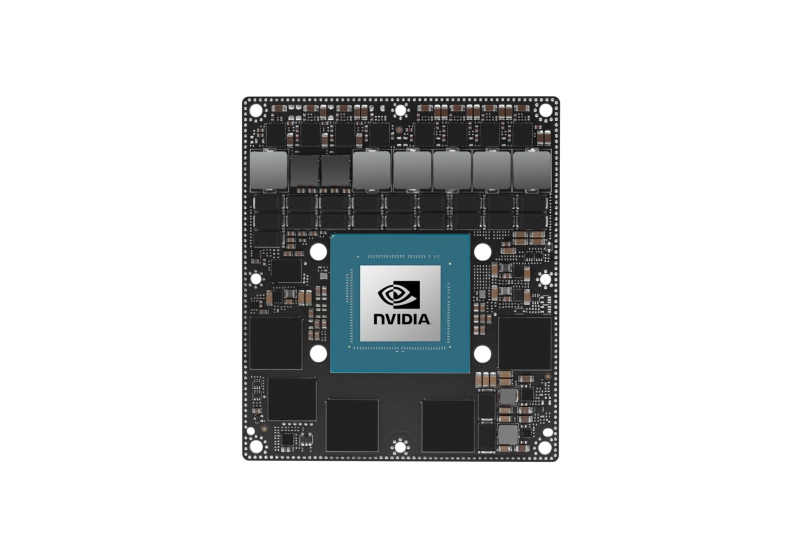

NVIDIA Jetson AGX Orin 32GB Module
The NVIDIA Jetson AGX Orin 32GB is a production embedded module for AI-powered robotics, machine vision and autonomous equipment. It provides a balanced combination of AI performance, memory, power efficiency and high-speed connectivity.
The module enables advanced AI workloads to run locally near connected equipment and sensors.
Click here to contact our dedicated AI sales team about Jetson
For more product information, please click here
AI Performance: 200 TOPS (INT8)GPU: NVIDIA Ampere architecture with 1792 NVIDIA CUDA cores and 56 Tensor CoresMax GPU Freq: 939 MHzCPU: 8-core Arm Cortex-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3CPU Max Freq: 2.2 GHzDL Accelerator: 2x NVDLA v2.0DLA Max Frequency: 1.4 GHzVision Accelerator: PVA v2.0Memory: 32GB 256-bit LPDDR5 204.8 GB/sStorage: 64GB eMMC 5.1CSI Camera: Up to 6 cameras (16 via virtual channels) 16 lanes MIPI CSI-2 D-PHY 2.1 (up to 40Gbps) | C-PHY 2.0 (up to 164Gbps)Video Encode: 1x 4K60 | 3x 4K30 | 6x 1080p60 | 12x 1080p30 (H.265) H.264, AV1Video Encode: 1x 8K30 | 2x 4K60 | 4x 4K30 | 9x 1080p60| 18x 1080p30 (H.265) H.264, VP9, AV1UPHY: Up to 2 x8, 1 x4, 2 x1 (PCIe Gen4, Root Port & Endpoint) 3x USB 3.2 Single lane UFSNetworking: 1x GbE 4x 10GbEDisplay: 1x 8K60 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1Other I/O: 4x USB 2.0 4x UART, 3x SPI, 4x I2S, 8x I2C, 2x CAN, DMIC & DSPK, GPIOsPower: 15W - 40WMechanical: 100mm x 87mm 699-pin Molex Mirror Mezz Connector Integrated Thermal Transfer Plate
AI Performance: 200 TOPS (INT8)
GPU: NVIDIA Ampere architecture with 1792 NVIDIA CUDA cores and 56 Tensor Cores
Max GPU Freq: 939 MHz
CPU: 8-core Arm Cortex-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
CPU Max Freq: 2.2 GHz
DL Accelerator: 2x NVDLA v2.0
DLA Max Frequency: 1.4 GHz
Vision Accelerator: PVA v2.0
Memory: 32GB 256-bit LPDDR5 204.8 GB/s
Storage: 64GB eMMC 5.1
CSI Camera: Up to 6 cameras (16 via virtual channels) 16 lanes MIPI CSI-2 D-PHY 2.1 (up to 40Gbps) | C-PHY 2.0 (up to 164Gbps)
Video Encode: 1x 4K60 | 3x 4K30 | 6x 1080p60 | 12x 1080p30 (H.265) H.264, AV1
Video Encode: 1x 8K30 | 2x 4K60 | 4x 4K30 | 9x 1080p60| 18x 1080p30 (H.265) H.264, VP9, AV1
UPHY: Up to 2 x8, 1 x4, 2 x1 (PCIe Gen4, Root Port & Endpoint) 3x USB 3.2 Single lane UFS
Networking: 1x GbE 4x 10GbE
Display: 1x 8K60 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1
Other I/O: 4x USB 2.0 4x UART, 3x SPI, 4x I2S, 8x I2C, 2x CAN, DMIC & DSPK, GPIOs
Power: 15W - 40W
Mechanical: 100mm x 87mm 699-pin Molex Mirror Mezz Connector Integrated Thermal Transfer Plate
