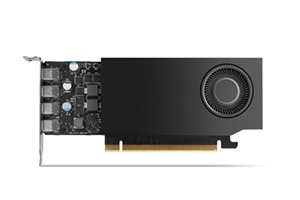

NVIDIA RTX A1000, 8GB GDDR6, 128-BIT, 160 GB/s, PCIe3x16, mDP(4),1 SLOT, 3YR 900-5G172-2580-000
The NVIDIA RTX A1000, powered by the NVIDIA Ampere architecture, marks a significant leap in GPU technology. This powerful, low-profile GPU introduces RTX-powered real-time ray tracing and AI acceleration to a broader audience. Featuring the NVIDIA Ampere GPU architecture, it boasts 2,304 CUDA Cores, 72 third-generation Tensor Cores, 18 second-generation RT Cores, and 8GB of GDDR6 graphics memory. The RTX A1000 enables the creation of more immersive visuals, the exploration of new AI-driven workflows, and an increase in productivity, all within a compact form factor. GPU Memory: 8GB GDDR6 Display Ports: 4x Mini DisplayPort 1.4a Max Power Consumption: 50 W Graphics Bus: PCIe 4.0 x8 Form Factor: 2.7" H x 6.4" L, single slot Thermal Solution: Active VR Ready: No
| Model | NVIDIA RTX A1000 |
| GPU memory | 8GB GDDR6 |
| Memory interface | 128-bit |
| Memory bandwidth | 192 GB/s |
| Error-correcting code (ECC) | None |
| CUDA Cores | 2304 |
| Tensor Cores | 72 |
| RT Cores | 18 |
| Single-precision performance | 6.7 TFLOPS |
| RT Core performance | 13.2 TFLOPS |
| Tensor performance | 53.8 TFLOPS |
| NVIDIA NVLink | None |
| NVIDIA NVLink bandwidth | None |
| System interface | PCIe 4.0 x8 |
| Power consumption | 50 W |
| Thermal solution | Active |
| Form factor | 2.7" H x 6.4" L, Single Slot |
| Display connectors | 4x Mini DisplayPort 1.4a |
| Max 4K simultaneous displays | 4x 4096 x 2160 @ 120 Hz |
| Max 5K simultaneous displays | 4x 5120 x 2880 @ 60Hz |
| Max 8K simultaneous displays | 2x 7680 x 4320 @ 30Hz |
| Encode/decode engines | 1x encode, 2x decode (+AV1 decode) |
| VR ready | No |
| vGPU software support | No |
| vGPU profiles supported | No |
| Graphics API | DirectX 12, Shader Model 6.6 |
| Graphics APIs | OpenGL 4.6, Vulkan 1.3 |
| Compute APIs | CUDA 11.6, OpenCL 3.0, DirectCompute |
