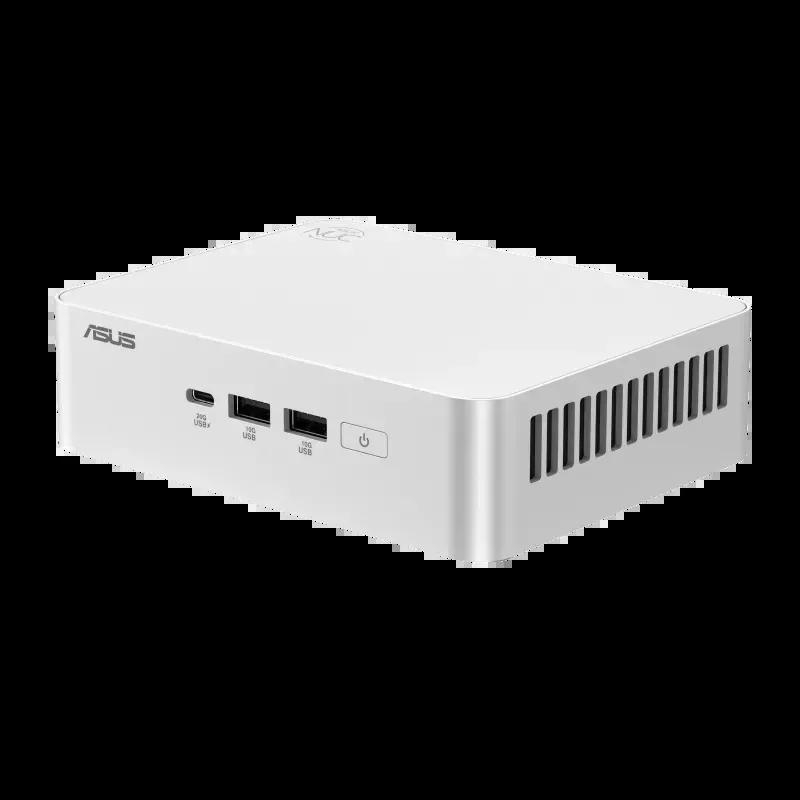

ASUS NUC 15 PRO+ MICRO PC, U7-255H, DDR5(0/2), M.2(0/1), WL, SILVER, 3YR RTB RNUC15CRSU700004
Elegant Mini PC with up to Intel® Core™ Ultra 9 Processors (Series 2) and Intel Arc™ Graphics, Unleashing Unmatched Performance. Powered by Intel® Core™ Ultra Processors (Series 2) with up to 99 TOPS and 18% faster gen-on-gen performance for seamless operations. Advanced thermal design ensures ultra-quiet cooling with 1.2x reduced noise for a refined experience. Intel® Wi-Fi 7 and Bluetooth® 5.4 deliver up to 2.4x faster speeds and reliable, seamless connectivity. Sleek 0.7L chassis with tool-free upgrades combines elegance with effortless customization. Supports up to four 4K displays via HDMI 2.1 and Thunderbolt™ 4, with smart power-off for energy efficiency. Built from sustainable materials, offering enduring quality with eco-conscious design.
| Form Factor | Kit |
| Operating System | No preinstalled OS Support: Windows 11 RedHat Enterprise Linux Ubuntu 24.04 LTS |
| CPU | Intel® Core™ Ultra 7 255H, cTDP 40W |
| Chipset | Integrated |
| Graphics | Intel® Arc™ GPU (Core Ultra) *Intel® Arc™ GPU requires using 2 x SO-DIMM |
| Memory | No memory included at shipment Max Capacity: 48GB DDR5-5600 SO-DIMM x 2 or 48GB DDR5-6400 CSO-DIMM x 2 |
| Storage | No storage included at shipment Support: 128GB~8TB M.2 2280 NVMe™ PCIe® 5.0 x 4 SSD (Core Ultra Series CPU) or 128GB~8TB M.2 2280 NVMe™ PCIe® 4.0 x 4 SSD (Core Series CPU)+ 128GB~2TB M.2 2242 NVMe™ PCIe® 4.0 x 4 SSD |
| Wireless Data Network | Intel® Wi-Fi 7 BE201, Bluetooth 5.4 *Bluetooth® version may change with different OS version. Intel® Wi-Fi 7 BE201,vPro®, Bluetooth 5.4 Intel® vPro® Technology (i7/i5 vPro SKUs only) |
| LAN | Intel® Ethernet Controller I226-V, 2.5G Intel® Ethernet Controller I226-LM, 2.5G *Intel® Ethernet Controller I226-LM included on vPro enabled systems |
| Front(Side) I/O Ports | 1 x USB 3.2 Gen2x2 Type-C 2 x USB 3.2 Gen2 Type-A |
| Back I/O Ports | 2 x HDMI 2.1 TMDS Compatible (4K@60Hz) 2 x Thunderbolt™ 4 ports (incl. DP 2.1 and USB4) 1 x USB 3.2 Gen2 Type-A 1 x USB 2.0 Type-A 1 x RJ45 LAN 1 x DC-in 1 x Kensington Lock |
| Power Supply | 19VDC, 6.32A, 120W Power Adapter (Core Ultra 5/7) 19.5VDC, 7.69A, 150W Power Adapter (Core Ultra 9) |
| Dimensions (W x D x H) | 144mm x 112mm x 42mm |
| Weight | 600g |
| Accessories | AC Adapter+Power Cord* VESA Bracket and Screws Safety/Caution/Regulatory Insert Warranty Card *Power cord included is region specific, and some SKUs do not include the power cord |
