Prime Z890 P/Atx/Intel LGA1851/4x DDR5 Dimm Max 192GB/Max 8400MHz/1x PCIE5.0(CPU), 3xPCIE4.0(Chipset X16/x16/x16)/2x M.2 (cpu), 2x M.2(Chipset) 90MB1I70-M0UAYC
SKU
422445
Brand
MPN
90MB1I70-M0UAYC
Warranty
Standard Manufacturer's Warranty
$494.00
Buy Now And Earn 494 Reward Points!

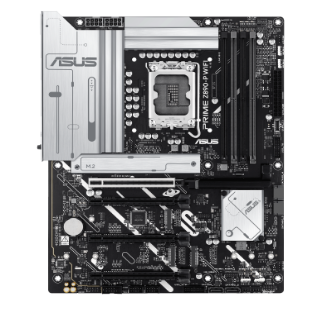

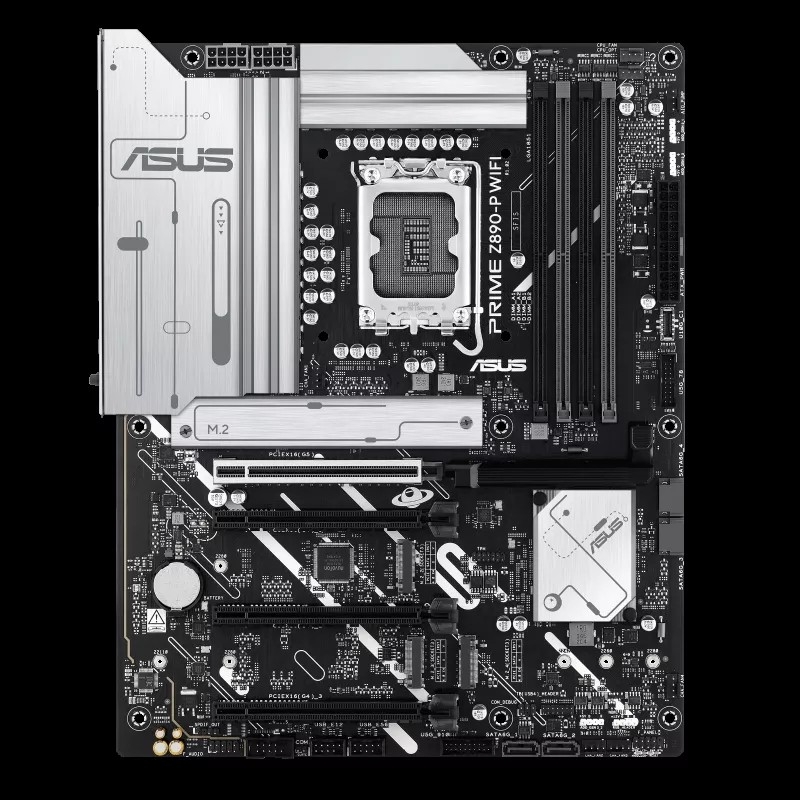

PRIME Z890-P WIFI-CSM
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z890-P WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z890-P WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
|---|---|
| Chipset | Intel® Z890 Chipset |
| Form Factor | ATX Form Factor 12 inch x 9.6inch ( 30.5 cm x 24.4 cm ) |
| I/O Connectors | 1 x Thunderbolt™ 4 USB Type-C® port, 1 x USB 10Gbps port (1 x Type-A), 2 x USB 5Gbps ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x DisplayPort, 1 x HDMITM port, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x BIOS FlashBack™ button |
| Integrated CPU Graphics | 1 x DisplayPort, 1 x HDMITM port, 1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs |
| LAN | 1 x Realtek 2.5Gb Ethernet, ASUS LANGuard |
| PCI Slots | Intel® Core™ Ultra Processors (Series 2): 1 x PCIe 5.0 x16 slot; Intel® Z890 Chipset: 2 x PCIe 4.0 x16 slots (support x4 mode), 1 x PCIe 4.0 x16 slot (supports x1 mode) |
| Processor Support | Supports Intel® Core™ Ultra Processors (Series 2), LGA1851, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| RAID | Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5 |
| RAM Type/Bus/Max | 4 x DIMM slots, max. 256GB, DDR5; Support up to 8666+MT/s (OC),Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM); Dual channel memory architecture; DIMM Fit; Supports Intel® Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile III(AEMPIII) |
| Socket | LGA1851 |
| Storage Interface | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports; Intel® Core™ Ultra Processors (Series 2): M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); Intel® Z890 Chipset: M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode), M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes); 4 x SATA 6Gb/s ports |
| Wireless & Bluetooth | Wi-Fi 7, 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate., Bluetooth® v5.4 |
PRIME Z890-P WIFI-CSM
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z890-P WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
