Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Chipset	AMD X870E
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
I/O Connectors	Back Panel I/O Ports: 2 x USB4® (40Gbps) ports (2 x USB Type-C®), 1 x USB 20Gbps port (1 x USB Type-C® with up to 30W PD Fast-charge), 10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C®), 1 x HDMI™ port, 1 x Wi-Fi Module, 1 x Realtek 5Gb Ethernet, 2 x Gold-plated audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack™ button, 1 x Clear CMOS button; Front USB (Total 11 ports): 1 x USB 20Gbps connector (supports USB Type-C®), 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports, 3 x USB 2.0 headers support additional 6 USB 2.0 ports
Integrated CPU Graphics	1 x HDMI™ port, 2 x USB4® (40Gbps) ports support USB Type-C® display outputs
LAN	1 x Realtek 5Gb Ethernet, ASUS LANGuard
PCI Slots	AMD Ryzen™ 9000 & 7000 Series Desktop Processors: 1 x PCIe 5.0 x16 slot (supports x16 mode); AMD Ryzen™ 8000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode); AMD X870E Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode)
Processor Support	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
RAM Type/Bus/Max	4 x DIMM slots, max. 192GB, DDR5; Supports up to 8000+MT/s(OC) with Ryzen™ 9000 Series Processors, 8400+MT/s(OC) with Ryzen™ 8000 Series Processors, 8000+MT/s(OC) with Ryzen™ 7000 Series Processors; ECC and Non-ECC Un-buffered DIMM; Dual Channel Memory Architecture; Supports AMD EXTended Profiles for Overclocking (EXPO™); NitroPath DRAM Technology; ASUS Enhanced Memory Profile (AEMP)
Socket	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Storage Interface	Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports
Wireless & Bluetooth	Wi-Fi 7, 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate, Bluetooth® v5.4

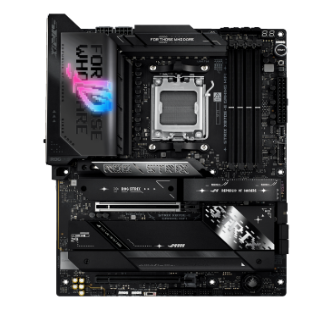

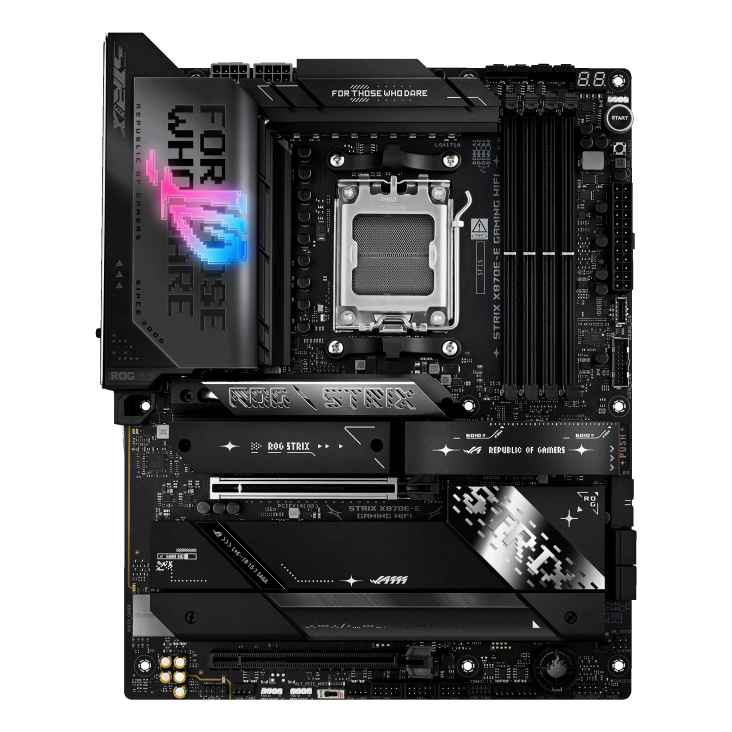

ROG STRIX X870E-E gaming wifi The ROG Strix X870E-E Gaming WiFi is engineered to harness the full potential of AMD Ryzen™ 9000 Series processors. Featuring PCIe® 5.0 support, AI Overclocking, AI Cooling II, AI Networking II, and AEMP, setup is streamlined while performance is maximized. Dual USB4® Type-C ports and WiFi 7 with Realtek 5Gb Ethernet ensure top-tier connectivity, while robust heatsinks keep M.2 drives cool under heavy loads. This motherboard not only meets the demands of gaming and professional applications but also delivers the power and connectivity essential for advanced AI PC applications.
