ASUS ROG Crosshair X870E Hero 4 x DIMM, Max. 192GB, DDR5 ROG-CROSSHAIR-X870E-HERO
SKU
425120
Brand
MPN
90MB1IE0-M0UAY0
Warranty
Standard Manufacturer's Warranty
$1,380.00
Buy Now And Earn 1380 Reward Points!

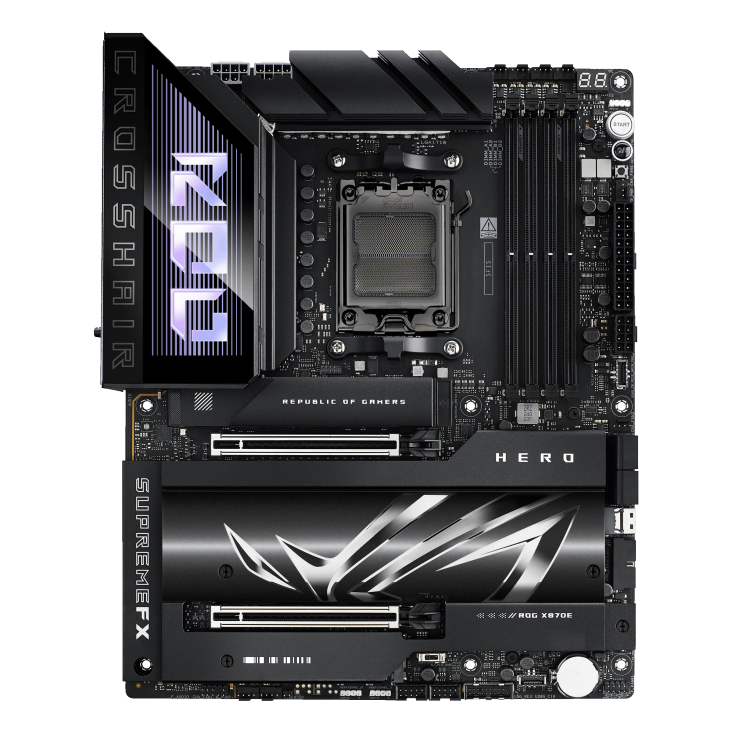

ROG Crosshair X870E HERO
The AI PC-ready ROG Crosshair X870E Hero offers unyielding power delivery, robust thermal management, hyperspeed connectivity, comprehensive PCIE 5.0 and DDR5 support to unleash the performance of AMD Ryzen™ 9000 Series processors. Dark hues predominate across this motherboard, drawing your attention to premium metallic textures, nickel-plated surfaces, sleek contours and a stereoscopic visual effect on the large M.2 and chipset heatsink. This board also features the Polymo Lighting II effect. This upgraded lighting module built into the I/O shroud provides more dynamic RGB illumination for the signature ROG logo.
Specifications
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 |
| Chipset | AMD X870E |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| I/O Connectors | Back Panel I/O Ports: 2 x USB4® (40Gbps) ports (2 x USB Type-C®), 8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C®), 1 x HDMI™ port, 1 x Wi-Fi module, 1 x Intel® 2.5Gb Ethernet port, 1 x Realtek 5Gb Ethernet port, 2 x Gold-plated audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack™ button, 1 x Clear CMOS button; Front USB (Total 10 ports): 1 x USB 20Gbps (supports USB Type-C® with up to 60W PD/QC4+), 1 x USB 20Gbps connector (supports USB Type-C®), 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Integrated CPU Graphics | 1 x HDMI™ port, 2 x USB4® (40Gbps) ports support USB Type-C® display outputs |
| LAN | 1 x Intel® 2.5Gb Ethernet, 1 x Realtek 5Gb Ethernet, ASUS LANGuard |
| PCI Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors: 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***); AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors: 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x8, PCIEx16_2 will be disabled); AMD Ryzen™ 8500 & 8300 Series Desktop Processors: 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x4, PCIEx16_2 will be disabled) |
| Processor Support | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
| RAID | AMD RAIDXpert2 Technology: Ryzen™ 9000 Series Processors: RAID 0/1/5/10, Ryzen™ 8000 Series Processors: RAID 0/1, Ryzen™ 7000 Series Processors: RAID 0/1/10 |
| RAM Type/Bus/Max | 4 x DIMM slots, max.192GB, DDR5; Supports up to 8200+MT/s(OC) with Ryzen™ 9000 Series Processors, 8600+MT/s(OC) with Ryzen™ 8000 Series Processors, 8000+MT/s(OC) with Ryzen™ 7000 Series Processors; ECC and Non-ECC, Un-buffered Memory; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); NitroPath DRAM Technology; ASUS Enhanced Memory Profile (AEMP) |
| Socket | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
| Storage Interface | Supports 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports |
| Warranty | |
| Weight | |
| Wireless & Bluetooth | Wi-Fi 7, 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate, Bluetooth® v5.4 |
ASUS ROG Crosshair X870E Hero 4 x DIMM, Max. 192GB, DDR5
