Rog Strix Z890 E/Atx/Intel LGA1851/4x DDR5 Dimm Max 192GB/Max 8800MHz/1x PCIE5.0(CPU), 1xPCIE4.0(Chipset X16)/4x M.2 (CPU), 3x M.2(Chipset) 90MB1IM0-M0UAY0
SKU
422453
Brand
MPN
90MB1IM0-M0UAY0
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $1,033.00 Regular Price $1,188.00
Buy Now And Earn 1033 Reward Points!

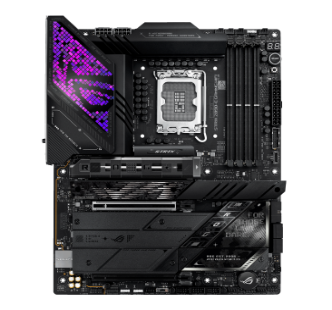

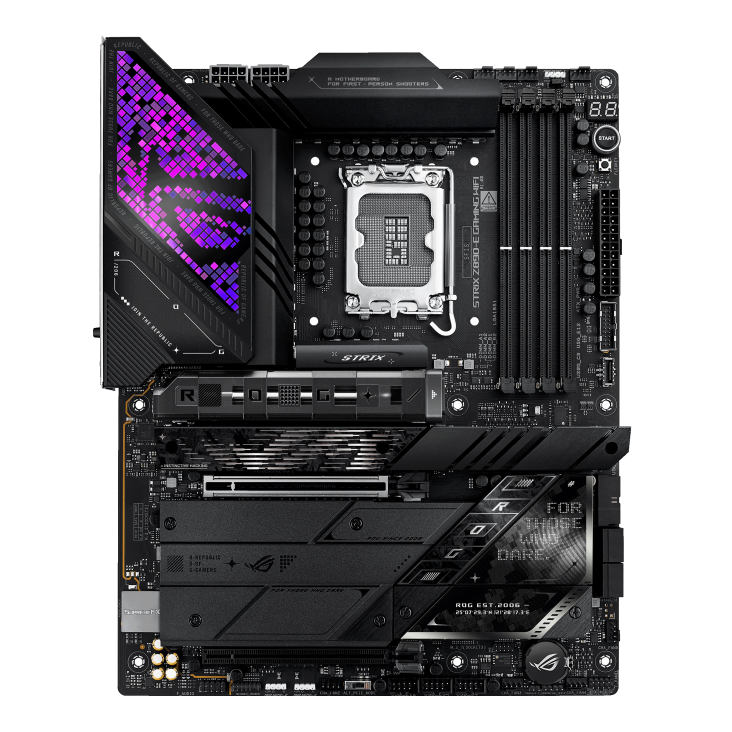

ROG STRIX Z890-E GAMING WIFI
With an advanced power design and AI features, the ROG Strix Z890-E Gaming WiFi delivers top-tier performance. Equipped with Thunderbolt™ 4, WiFi 7, high-speed DDR5 slots, and seven M.2 slots, it provides exceptional connectivity and speed, making it ideal for elite gaming and advanced AI PC applications.
With an advanced power design and AI features, the ROG Strix Z890-E Gaming WiFi delivers top-tier performance. Equipped with Thunderbolt™ 4, WiFi 7, high-speed DDR5 slots, and seven M.2 slots, it provides exceptional connectivity and speed, making it ideal for elite gaming and advanced AI PC applications.
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |
|---|---|
| Chipset | Intel® Z890 Chipset |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| I/O Connectors | 2 x Thunderbolt™ 4 (2 x USB Type-C®), 9 x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C® + 1 x USB Type-C® with up to 30W PD Fast-charge), 3 x USB 5Gbps ports (3 x Type-A), 1 x DisplayPort, 1 x HDMI® port, 1 x Wi-Fi Module, 1 x Realtek 5Gb Ethernet, 2 x Gold-plated audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack™ button, 1 x Clear CMOS button |
| Integrated CPU Graphics | 1 x DisplayPort, 1 x HDMI® port, 2 x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs |
| LAN | 1 x Realtek 5Gb Ethernet ,ASUS LANGuard |
| PCI Slots | Intel® Core™ Ultra Processors(Series 2): 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes); Intel® Z890 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| Processor Support | Intel® Socket LGA1851 for Intel® Core™ Ultra Processors(Series 2) Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| RAID | Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5 |
| RAM Type/Bus/Max | 4 x DIMM slots, max. 256GB, DDR5, Support up to 9200+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM); Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP) memory module; Supports DIMM Flex; NitroPath DRAM Technology; DIMM Fit; ASUS Enhanced Memory Profile III (AEMP III) |
| Socket | Intel® Socket LGA1851 |
| Storage Interface | Total supports 7 x M.2 slots and 4 x SATA 6Gb/s ports; Intel® Core™ Ultra Processors(Series 2)\: M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode); Intel® Z890 Chipset: M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), M.2_6 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), M.2_7 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes); 4 x SATA 6Gb/s ports |
| Wireless & Bluetooth | Wi-Fi 7, 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate, Bluetooth® v5.4 |
ROG STRIX Z890-E GAMING WIFI
With an advanced power design and AI features, the ROG Strix Z890-E Gaming WiFi delivers top-tier performance. Equipped with Thunderbolt™ 4, WiFi 7, high-speed DDR5 slots, and seven M.2 slots, it provides exceptional connectivity and speed, making it ideal for elite gaming and advanced AI PC applications.
