Audio	Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
Chipset	Intel® Z890 Chipset
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
I/O Connectors	1 x Thunderbolt™ 4 USB Type-C® port, 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode), 3 x USB 10Gbps ports (3 x Type-A), 3 x USB 5Gbps ports (3 x Type-A), 1 x DisplayPort, 1 x HDMI™ port, 1 x Wi-Fi module, 1 x Intel® 2.5Gb Ethernet port, 5 x Audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack™ button
Integrated CPU Graphics	1 x DisplayPort, 1 x HDMI™ port, 1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs, 1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output
LAN	1 x Intel® 2.5Gb Ethernet ,TUF LANGuard
PCI Slots	Intel® Core™ Ultra Processors(Series 2): 1 x PCIe 5.0 x16 slot; Intel® Z890 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x4 slot, 2 x PCIe 4.0 x1 slots
Processor Support	Support Intel® Core™ Ultra Processors (Series 2), LGA1851; Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
RAID	Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5
RAM Type/Bus/Max	4 x DIMM slots, max. 256GB, DDR5; Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM); Dual channel memory architecture; DIMM Fit; Supports Intel® Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile III(AEMPIII)
Socket	LGA1851
Storage Interface	Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports; Intel® Core™ Ultra Processors(Series 2): M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); Intel® Z890 Chipset: M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode), M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes), 4 x SATA 6Gb/s ports
Warranty	3 years
Wireless & Bluetooth	Wi-Fi 7, 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate, Bluetooth® v5.4

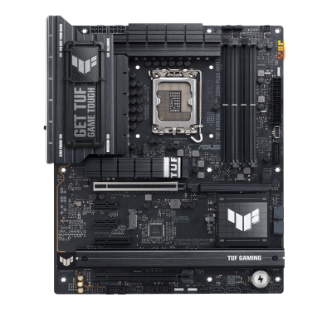

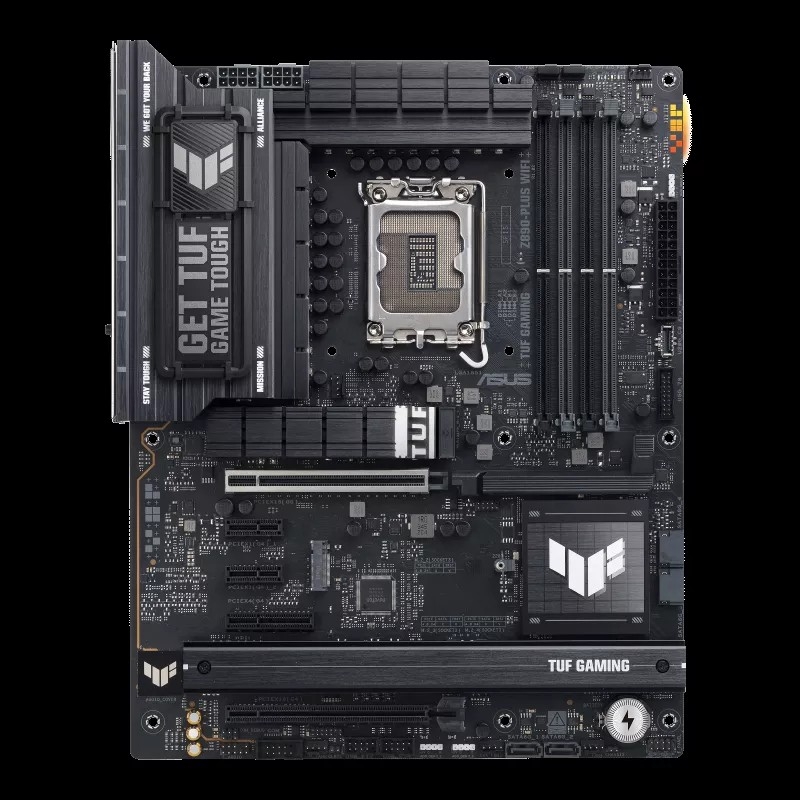

TUF GAMING Z890-PLUS WIFI ASUS TUF GAMING Z890-PLUS WIFI takes all the essential elements of the latest Intel® Core™ Ultra Processors (Series 2) processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
