Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Chipset	AMD X870
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
I/O Connectors	Back Panel I/O Ports: 2 x USB4® (40Gbps) ports (2 x USB Type-C® with DP Alt mode), 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C® with up to 30W PD Fast-charge), 4 x USB 5Gbps ports (4 x Type-A), 1 x DisplayPort, 1 x HDMI™ port, 1 x Wi-Fi module, 1 x Intel® 2.5Gb Ethernet, 2?x Audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack™ button, 1 x Clear CMOS button; Front USB (Total 9 ports): 1 x USB 20Gbps connector (supports USB Type-C®), 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Integrated CPU Graphics	1 x DisplayPort, 1 x HDMI™ port, 2 x USB4® (40Gbps) ports support USB Type-C® display outputs
LAN	1 x Intel® 2.5Gb Ethernet, ASUS LANGuard
PCI Slots	AMD Ryzen™ 9000 & 7000 Series Desktop Processors: 1 x PCIe 5.0 x16 slot (supports x16 mode); AMD Ryzen™ 8000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode); AMD X870 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode)
Processor Support	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
RAID	AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU
RAM Type/Bus/Max	4 x DIMM slots, max. 192GB, DDR5; Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered Memory, Dual channel memory architecture, Supports AMD Extended Profiles forOverclocking (EXPO™), ASUS Enhanced Memory Profile (AEMP)
Socket	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Storage Interface	Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
Wireless & Bluetooth	Wi-Fi 7, 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate, Bluetooth® v5.4

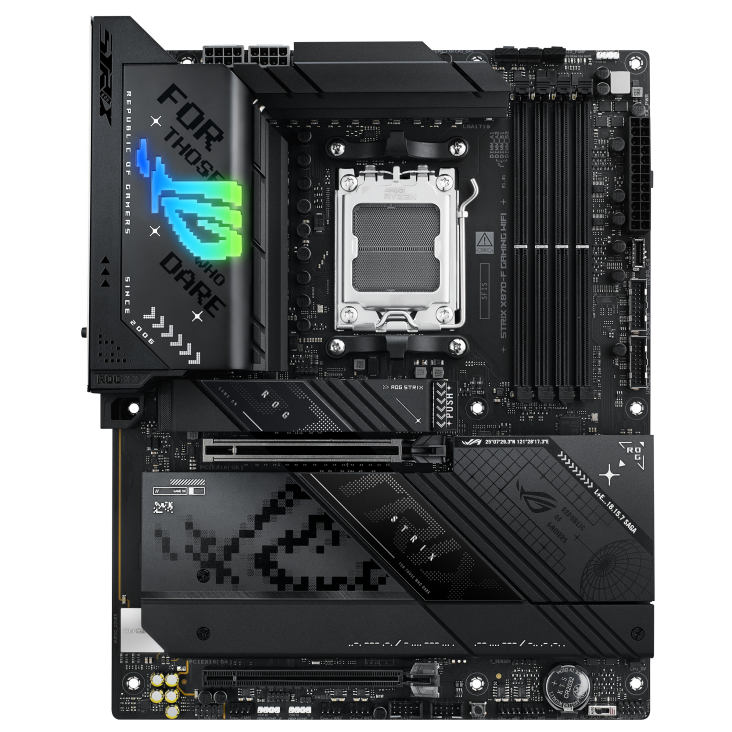

ROG STRIX X870-F gaming wifi The ROG Strix X870-F Gaming WiFi is built to dominate with AMD Ryzen™ 9000 Series Desktop Processors. Its advanced power design and AI solutions ensure peak performance, while dual USB4® ports, WiFi 7 and high-speed DDR5 slots provide cutting-edge connectivity. This motherboard delivers the power and speed essential for elite gaming and the demands of advanced AI PC applications.
