Audio	ROG Strix Hive II Audio Features - ROG Hyper-Grounding Technology - ESS® SABRE9260Q DAC - Silver-plated audio jacks - Dedicated audio PCB layers
Chipset	AMD X870
Form Factor	Mini-ITX Form Factor 6.7 inch x 6.7 inch (17 cm x 17 cm)
I/O Connectors	Back Panel I/O Ports: 2 x USB4® (40Gbps)(2 x USB Type-C®), 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®, 1 port supports ROG STRIX HIVE II), 3 x USB 2.0 port(s) (2 x Type-A), 1 x HDMI™ port, 1 x Wi-Fi module, 1 x Intel® 2.5Gb Ethernet port, 1 x BIOS FlashBack™ button, 1 x Clear CMOS button; Front USB (Total 3 ports): 1 x USB 10Gbps connector (supports USB Type-C®), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; ROG STRIX HIVE II(Total 2 ports): 2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C®); ROG FPS Card (Total 3 ports): 2 x USB 2.0 headers additional 3 USB 2.0 ports
Integrated CPU Graphics	1 x HDMI™ port, 2 x USB4® (40Gbps) ports support USB Type-C® display outputs
LAN	1 x Intel® 2.5Gb Ethernet, ASUS LANGuard
PCI Slots	AMD Ryzen™ 9000 & 7000 Series Desktop Processors: 1 x PCIe 5.0 x16 slot; AMD Ryzen™ 8000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
Processor Support	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
RAID	AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1
RAM Type/Bus/Max	2 x DIMM slots, max. 96GB, DDR5; Supports up to 8400+MT/s(OC) with Ryzen™ 9000 Series Processors, 8600+MT/s(OC) with Ryzen™ 8000 Series Processors, 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); ASUS Enhanced Memory Profile (AEMP)
Socket	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Storage Interface	Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports
Wireless & Bluetooth	Wi-Fi 7, 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate, Bluetooth® v5.4

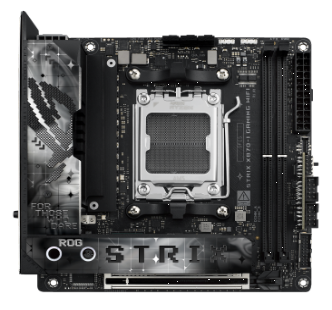

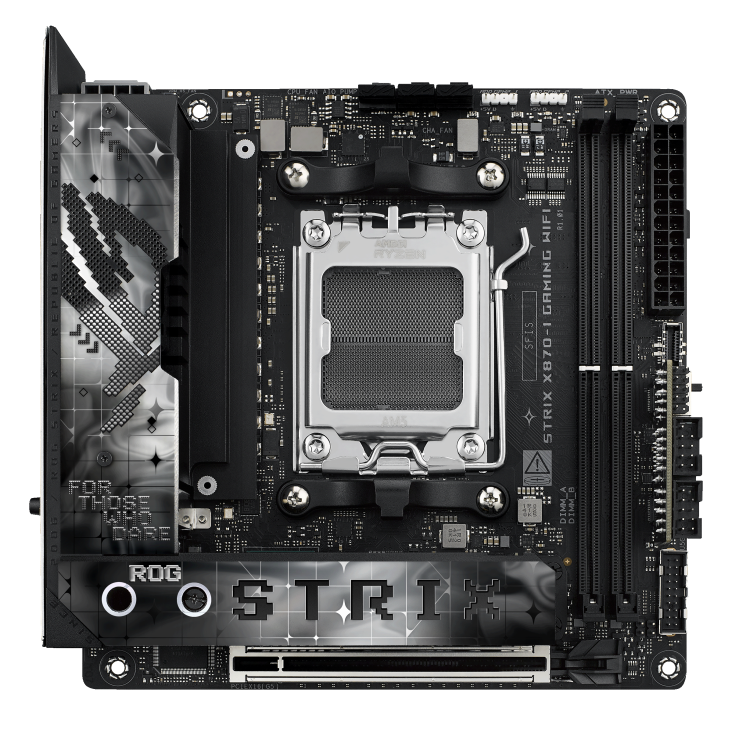

ROG STRIX X870-I gaming wifi The ROG Strix X870-I Gaming WiFi integrates cutting-edge technology into a sleek mini-ITX form factor, enhanced by the ROG Strix Hive II for streamlined control. It features PCIe 5.0 slots for graphics and storage, dual-channel DDR5 slots and robust power delivery for top-tier gaming and heavy workloads. Meanwhile, advanced cooling solutions maintain peak performance, and WiFi 7 ensures ultra-fast connectivity. This platform delivers the power and connectivity that advanced AI PC applications demand.
