Audio	Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
Chipset	Intel® B860 Chipset
Form Factor	Mini-ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm )
I/O Connectors	1 x Thunderbolt™ 4 port (1 x USB Type-C®), 1 x USB 20Gbps port (1 x USB Type-C®), 1 x USB 10Gbps ports (1 x Type-A), 3 x USB 5Gbps ports (3 x Type-A), 2 x USB 2.0 ports (2 x Type-A), 1 x DisplayPort, 1 x HDMI™ port, 1 x Wi-Fi module, 1 x Intel® 2.5Gb Ethernet port, 2 x Audio jacks, 1 x Optical S/PDIF out port, 1 x Clear CMOS button
Integrated CPU Graphics	1 x DisplayPort, 1 x HDMI™ port, 1 x Intel® Thunderbolt™ 4 supports DisplayPort and Thunderbolt™ video outputs
LAN	1 x Intel® 2.5Gb Ethernet, ASUS LANGuard
PCI Slots	Intel® Core™ Ultra Processors (Series 2): 1 x PCIe 5.0 x16 slot
Processor Support	Support Intel® Core™ Ultra Processors (Series 2), Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
RAID	Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
RAM Type/Bus/Max	2 x DIMM slots, max. 128GB, DDR5; Supports up to 9066+MT/s (OC), Non-ECC Un-buffered ,Clocked Unbuffered DIMM (CUDIMM); Dual channel memory architecture; DIMM Fit; Supports Intel® Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile III (AEMP III)
Socket	LGA1851
Storage Interface	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports; Intel® Core™ Ultra Processors (Series 2): M.2_1 slot (Key M), type 2260/2280 (supports PCIe 5.0 x4 mode); Intel® B860 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports
Wireless & Bluetooth	Wi-Fi 7, 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate, Bluetooth® v5.4

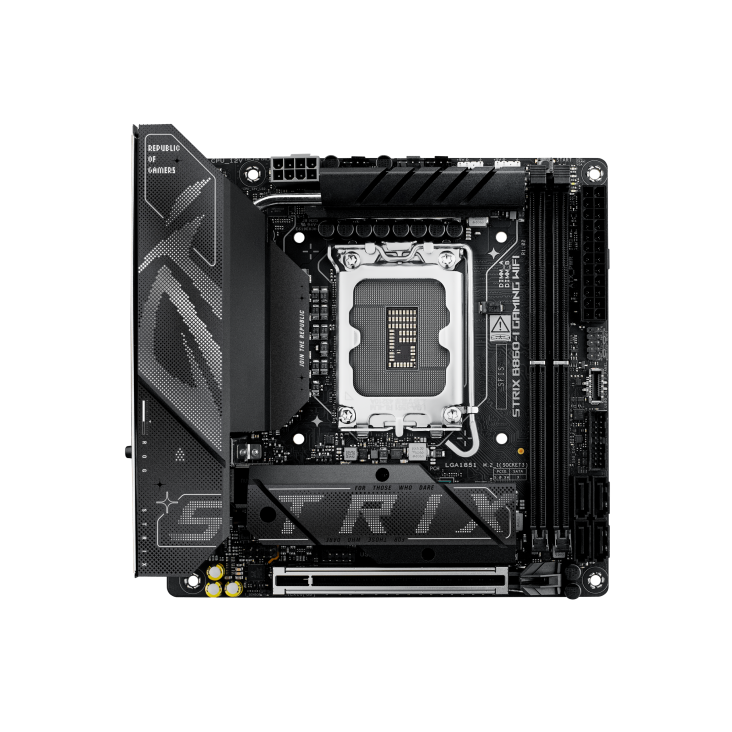

ROG STRIX B860-I GAMING WIFI The ROG Strix B860-I Gaming WiFi is designed to dominate with Intel® Core™ Ultra Processors(Series 2). Its advanced power design and AI solutions drive top-tier performance, while Thunderbolt™ 4, WiFi 7 and high-speed DDR5 slots offer cutting-edge connectivity. This motherboard delivers the power and speed needed for elite gaming and demanding AI applications.
