Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback
Chipset	Intel® B860 Chipset
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
I/O Connectors	1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode), 2 x USB 10Gbps ports (2 x USB Type-A), 3 x USB 5Gbps ports (3 x Type-A), 2 x USB 2.0 ports (2 x Type-A), 1 x DisplayPort, 1 x HDMI™ port, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet port, 5 x Audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack™ button
Integrated CPU Graphics	1 x DisplayPort, 1 x HDMI™ port, 1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output
LAN	1 x Realtek 2.5Gb Ethernet, TUF LANGuard
PCI Slots	Intel® Core™ Ultra Processors(Series 2): 1 x PCIe 5.0 x16 slot; Intel® B860 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x1 slot
Processor Support	Support Intel® Core™ Ultra Processors(Series 2)
RAID	Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10
RAM Type/Bus/Max	4 x DIMM slots, max. 256GB, DDR5; Support up to 8666+ MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM); Dual channel memory architecture; Supports Intel® Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile III(AEMPIII)
Socket	LGA1851
Storage Interface	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports: Intel® Core™ Ultra Processors(Series 2)- M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode); Intel® B860 Chipset- M.2_2 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports
Wireless & Bluetooth	Wi-Fi 7, 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate, Bluetooth® v5.4

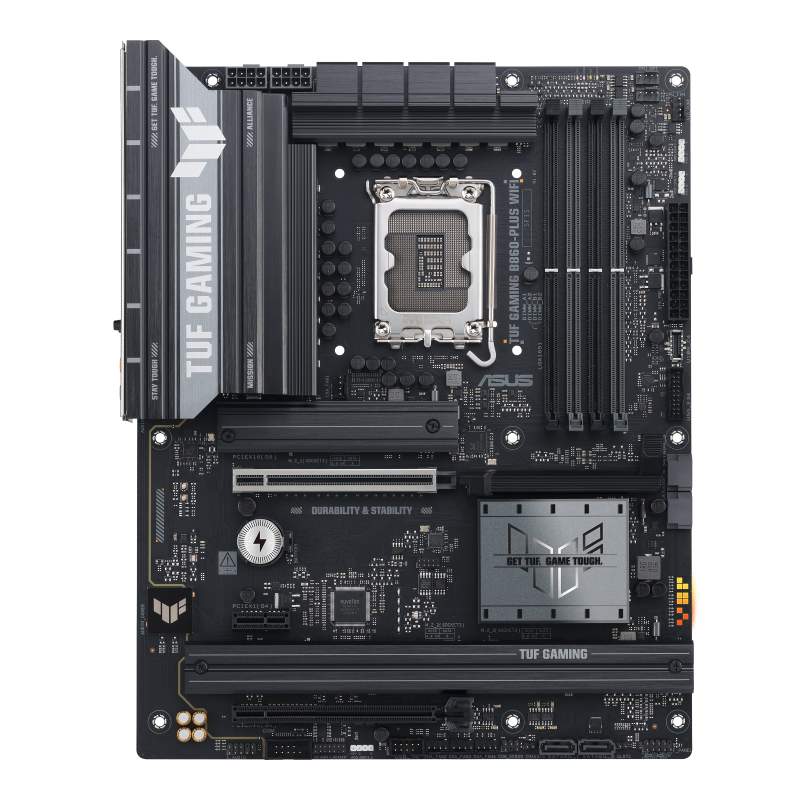

TUF GAMING B860-PLUS WIFI ASUS TUF GAMING B860-PLUS WIFI takes all the essential elements of the latest Intel® Core™ Ultra Processors (Series 2) processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
