ASUS - Components & Peripherals PRIME B850-PLUS WIFI-CSM//AM5,B850,USB10G,WIFI,AURA,MB PRIME-B850-PLUS-WIFI-CSM
SKU
434711
MPN
90MB1L80-M0UAYC
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $334.00 Regular Price $384.00
Buy Now And Earn 334 Reward Points!

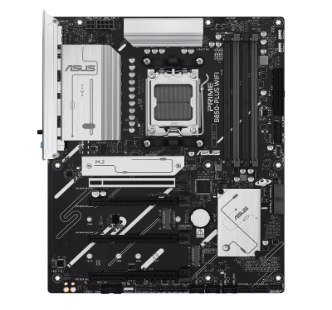

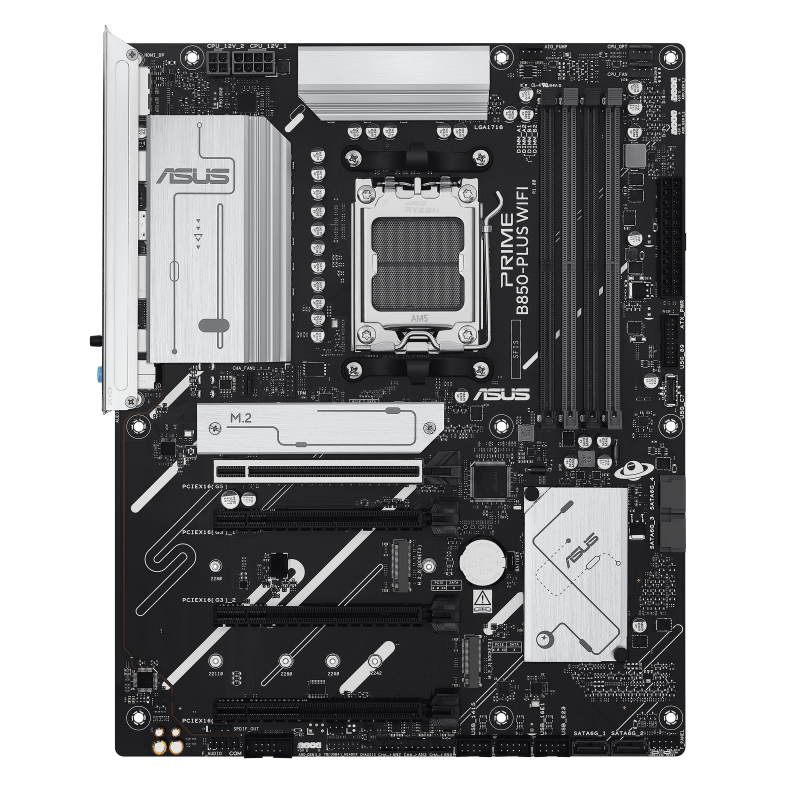

Prime B850-PLUS WIFI-CSM
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME B850-PLUS WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Specifications
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Chipset | AMD B850 Chipset |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| I/O Connectors | 1 x USB 10Gbps port (1 x USB Type-C®), 3 x USB 10Gbps ports (3 x Type-A), 2 x USB 5Gbps ports (2 x Type-A), 2 x USB 2.0 ports (2 x Type-A), 1 x DisplayPort, 1 x HDMI™ port, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x BIOS FlashBack™ button |
| Integrated CPU Graphics | 1 x DisplayPort, 1 x HDMI™ port |
| LAN | 1 x Realtek 2.5Gb Ethernet, ASUS LANGuard |
| PCI Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors: 1 x PCIe 5.0 x16 slot (supports x16 mode); AMD Ryzen™ 8000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode); AMD B850 Chipset: 1 x PCIe 4.0 x16 slot (support x4 mode), 2 x PCIe 3.0 x16 slots (support x1 mode) |
| Processor Support | AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
| RAID | AMD RAIDXpert2 Technology- Ryzen™ 9000 Series Processors: RAID 0/1/5/10, Ryzen™ 8000 Series Processors: RAID 0/1, Ryzen™ 7000 Series Processors: RAID 0/1/10 |
| RAM Type/Bus/Max | 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM, Dual channel memory architecture, Supports AMD Extended Profiles for Overclocking (EXPO™), ASUS Enhanced Memory Profile (AEMP) |
| Socket | AMD Socket AM5 |
| Storage Interface | Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports- AMD Ryzen™ 9000 & 7000 Series Desktop Processors; M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); AMD Ryzen™ 8000 Series Desktop Processors: M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode); AMD B850 Chipset: M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x2 mode), 4 x SATA 6Gb/s ports |
| Warranty | |
| Weight | |
| Wireless & Bluetooth | Wi-Fi 6E, 2x2 Wi-Fi 6E (802.11ax), Supports 2.4/5/6GHz frequency band, Bluetooth® v5.3 |
PRIME B850-PLUS WIFI-CSM//AM5,B850,USB10G,WIFI,AURA,MB
