ASUS - Components & Peripherals ROG CROSSHAIR X870E EXTREME//LGA1718,X870E,USB4,MB/null ROG-CROSSHAIR-X870E-EXTREME
SKU
434717
MPN
90MB1LB0-M0UAY0
Warranty
Standard Manufacturer's Warranty
$1,866.00
Buy Now And Earn 1866 Reward Points!

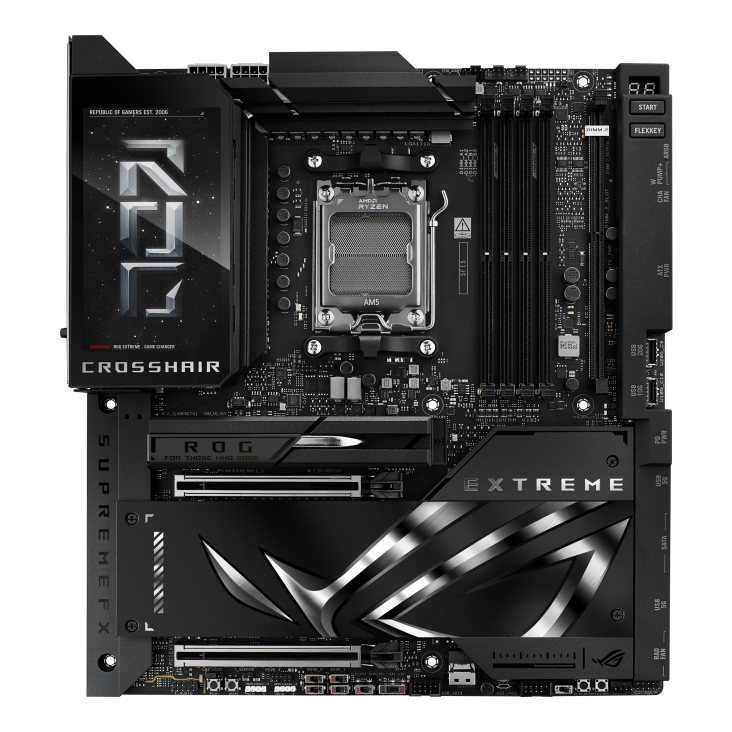

ROG Crosshair X870E Extreme
The ROG Crosshair X870E Extreme is the flagship AMD Ryzen™ 9000 series motherboard, designed for the most discerning users. It provides the ultimate foundation for AM5 CPUs, DDR5 memory, and PCIe® 5.0 components to ensure maximum performance and future-readiness. Its comprehensive connectivity includes USB4®, and the integrated 5-inch LCD offers a unique way to monitor system performance or add a touch of personalized style.
Specifications
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 |
| Chipset | AMD X870E |
| Form Factor | E-ATX Form Factor 12 inch x 10.9 inch (30.5 cm x 27.7 cm) |
| I/O Connectors | 2 x USB4® (40Gbps) ports (2 x USB Type-C®), 10 x USB 10Gbps ports (8 x Type-A + 2 x USB Type-C®), 1 x HDMITM port, 1 x Wi-Fi Module, 1 x Realtek 5Gb Ethernet port, 1 x Marvell® AQtion 10Gb Ethernet port, 2 x LED-illuminated audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack™ button, 1 x Clear CMOS button |
| Integrated CPU Graphics | 1 x HDMI port, 2 x USB4® (40Gbps) ports support USB Type-C® display outputs |
| LAN | 1 x Realtek 5Gb Ethernet, 1 x Marvell® AQtion 10Gb Ethernet, ASUS LANGuard |
| PCI Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors: 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***) ** When you use both PCIEX16(G5)_1 and PCIEX16(G5)_2, PCIEX16(G5)_1 and PCIEX16(G5)_2 will run x8. ***When M.2_3 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2 will run x4. **** When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16(G5)_2 will be disabled. AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors: 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 & total bandwidth for x8, PCIEx16(G5)_2 will be disabled). AMD Ryzen™ 8500 & 8300 Series Desktop Processors: 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 & total bandwidth for x4, PCIEx16(G5)_2 will be disabled) |
| Processor Support | AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
| RAID | |
| RAM Type/Bus/Max | 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8200+MT/s(OC) with Ryzen™ 9000 Series Processors, 9000+MT/s(OC) with Ryzen™ 8000 Series Processors, 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM; Dual Channel Memory Architecture, Supports AMD Extended Profiles for Overclocking (EXPO™), ASUS Enhanced Memory Profile (AEMP), NitroPath DRAM Technology |
| Socket | AMD Socket AM5 |
| Storage Interface | Supports up to 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)* M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)** AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (Not supports) M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports) AMD X870E Chipset DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) SlimSAS connector supports PCIe 4.0 x4 mode via an SFF-8654 adapter cable. The cable is purchased separately. 4 x SATA 6Gb/s ports * When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16(G5)_2 will be disabled. ** When M.2_3 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2 will run x4, M.2_2 will be disabled. |
| Warranty | |
| Weight | |
| Wireless & Bluetooth | Wi-Fi 7, 2x2 Wi-Fi 7 (802.11be) , Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate, Bluetooth® v5.4 |
