ASUS - Components & Peripherals TUF GAMING X870E-PLUS WIFI7//SOCKET AM5,X870,MB TUF-GAMING-X870E-PLUS-WIFI7
SKU
437923
MPN
90MB1M70-M0UAY0
Warranty
Standard Manufacturer's Warranty
$569.00
Buy Now And Earn 569 Reward Points!

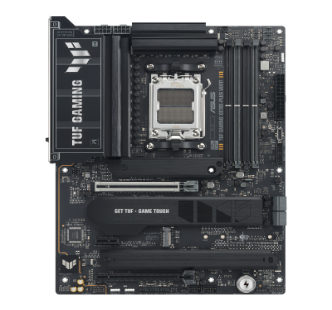

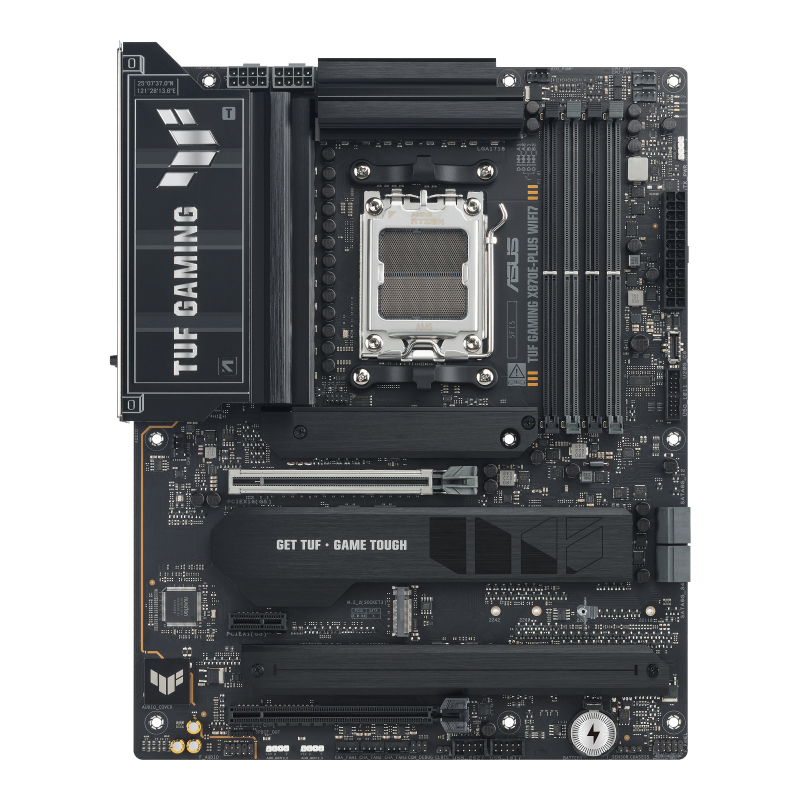

TUF GAMING X870E-PLUS WIFI7
ASUS TUF GAMING X870E-PLUS WIFI7 takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
Specifications
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC |
| Chipset | AMD X870E Chipset |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| I/O Connectors | 2 x USB4® (40Gbps) ports (2 x USB Type-C®), 3 x USB 10Gbps ports (3 x Type-A), 4 x USB 5Gbps ports (4 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x HDMI™ port, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x BIOS FlashBack™ button |
| Integrated CPU Graphics | 1 x HDMI™ port, 2 x USB4® (40Gbps) ports support USB Type-C® display outputs |
| LAN | 1 x Realtek 2.5Gb Ethernet, TUF LANGuard |
| PCI Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors: 1 x PCIe 5.0 x16 slot; AMD Ryzen™ 8000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode); AMD X870E Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 3.0 x1 Slot |
| Processor Support | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
| RAID | AMD RAIDXpert2 Technology: Ryzen™ 9000 Series Processors: RAID 0/1/5/10, Ryzen™ 8000 Series Processors: RAID 0/1, Ryzen™ 7000 Series Processors: RAID 0/1/10 |
| RAM Type/Bus/Max | 4 x DIMM slots, max. 256GB, DDR5; Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); ASUS Enhanced Memory Profile (AEMP) |
| Socket | AMD Socket AM5 |
| Storage Interface | Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports; AMD Ryzen™ 9000 & 7000 Series Desktop Processors: M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode); AMD Ryzen™ 8000 Series Desktop Processors: M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), M.2_2 slot is not supported; AMD X870 Chipset: M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports |
| Warranty | |
| Weight | |
| Wireless & Bluetooth | Wi-Fi 7, 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate, Bluetooth® v5.4 |
TUF GAMING X870E-PLUS WIFI7//SOCKET AM5,X870,MB
