Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
Chipset	AMD X870E
Form Factor	E-ATX Form Factor 12 inch x 10.9 inch (30.5 cm x 27.7 cm)
I/O Connectors	2 x USB4® (40Gbps) ports (2 x USB Type-C®), 12 x USB 10Gbps ports (8 x Type-A + 4 x USB Type-C®), 1 x Wi-Fi Module2 x Realtek 10Gb Ethernet ports, 2 x LED-illuminated audio jacks1 x Optical S/PDIF out port, 1 x BIOS FlashBack™ button, 1 x Clear CMOS button
Integrated CPU Graphics	2 x USB4® (40Gbps) ports support USB Type-C® display outputs
LAN	2 x Realtek 10Gb Ethernet, ASUS LANGuard
PCI Slots	AMD Ryzen™ 9000 & 7000 Series Desktop Processors: 2 x PCIe 5.0 x16 slots with PCIe Q-Release Switch (supports x16 or x8/x8 or x8/x4/x4 modes); AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors: 2 x PCIe 4.0 x16 slots with PCIe Q-Release Switch (only supports PCIEx16(G5)_1 & total bandwidth for x8, PCIEx16(G5)_2 will run at PCIe 3.0 x4); AMD Ryzen™ 8500 & 8300 Series Desktop Processors: 2 x PCIe 4.0 x16 slots with PCIe Q-Release Switch (only supports PCIEx16(G5)_1 & total bandwidth for x4, PCIEx16(G5)_2 will run at PCIe 3.0 x4)
Processor Support	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
RAID	AMD RAIDXpert2 Technology: Ryzen™ 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10
RAM Type/Bus/Max	4 x DIMM slots, max. 256GB, DDR5; Supports up to: 8600+MT/s(OC)**/8200+MT/s(OC)*** with Ryzen™ 9000 Series Processors, 9600+MT/s(OC)**/9200+MT/s(OC)*** with Ryzen™ 8000 Series Processors, 8000+MT/s(OC)**/8000+MT/s(OC)*** with Ryzen™ 7000 Series Processors,; ECC and Non-ECC, Un-buffered DIMM; Dual Channel Memory Architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); Supports DIMM Fit and DIMM Fit Pro; ASUS Enhanced Memory Profile (AEMP); NitroPath DRAM Technology
Socket	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Storage Interface	Supports up to 7 x M.2 slots and 4 x SATA 6Gb/s ports
Warranty	3 years
Wireless & Bluetooth	Wi-Fi 7 (MediaTek MT7927), 2x2 Wi-Fi 7* (802.11be), Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 320MHz bandwidth, Bluetooth® v5.4 (support LE Audio)

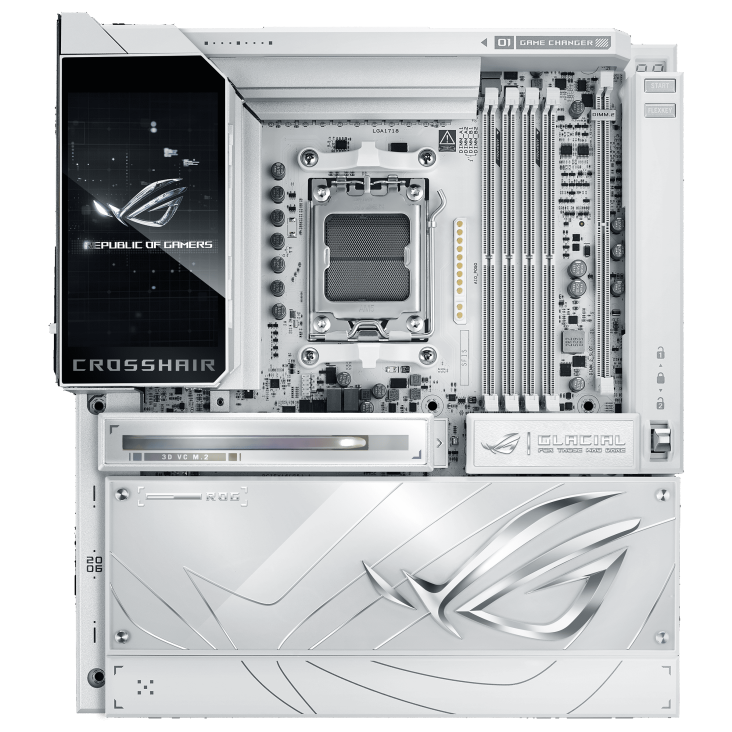

ROG CROSSHAIR X870E GLACIAL The ROG X870E Glacial is a flagship motherboard engineered for uncompromising performance and sophisticated AI. It boasts a robust 24+2+2 power stage design, Dynamic OC Switcher, and Core Flex for next-generation overclocking control. Meanwhile, advanced memory tuning is unlocked through server-grade DRAM enhancement and NitroPath DRAM technology, and storage scales with support for up to seven M.2 drives. Top-tier connectivity includes two 10G Ethernet ports, two USB4® ports, and two USB 20Gbps Type-C® front-panel connectors. This motherboard also features a 3D VC M.2 heatsink and a 5-inch LCD display, along with AI Cache Boost and AI Advisor for smarter, more intuitive system tuning.
