Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
Chipset	AMD X870E
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
I/O Connectors	2 x USB4® (40Gbps) ports (2 x USB Type-C®), 9 x USB 10Gbps connector (6 x Type-A + 3 x USB Type-C®), 1 x HDMI™ port, 1 x Wi-Fi module, 1 x Realtek 10Gb Ethernet port, 1 x Realtek 5Gb Ethernet port, 2 x Gold-plated audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack™ button, 1 x Clear CMOS button
Integrated CPU Graphics	1 x HDMI™ port, 2 x USB4® (40Gbps) ports support USB Type-C® display outputs
LAN	1 x Realtek 10Gb Ethernet, 1 x Realtek 5Gb Ethernet, ASUS LANGuard
PCI Slots	AMD Ryzen™ 9000 & 7000 Series Desktop Processors: 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes); AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors: 2 x PCIe 4.0 x16 slots (only supports PCIEx16(G5)_1 & total bandwidth for x8, PCIEx16(G5)_2 will run at PCIe 3.0 x4); AMD Ryzen™ 8500 & 8300 Series Desktop Processors: 2 x PCIe 4.0 x16 slots (only supports PCIEx16(G5)_1 & total bandwidth for x4, PCIEx16(G5)_2 will run at PCIe 3.0 x4)
Processor Support	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
RAID	AMD RAIDXpert2 Technology: Ryzen™ 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10
RAM Type/Bus/Max	4 x DIMM slots, max. 256GB, DDR5; Supports up to: 8600+MT/s(OC)**/8200+MT/s(OC)*** with Ryzen™ 9000 Series Processors, 9600+MT/s(OC)**/9200+MT/s(OC)*** with Ryzen™ 8000 Series Processors, 8000+MT/s(OC)**/8000+MT/s(OC)*** with Ryzen™ 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM*"; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); Supports DIMM Fit and DIMM Fit Pro; NitroPath DRAM Technology; ASUS Enhanced Memory Profile (AEMP)
Socket	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Storage Interface	Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports
Warranty	3 years
Wireless & Bluetooth	Wi-Fi 7 (MediaTek MT7927), 2x2 Wi-Fi 7* (802.11be), Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 320MHz bandwidth, Bluetooth® v5.4 (suppport LE Audio)

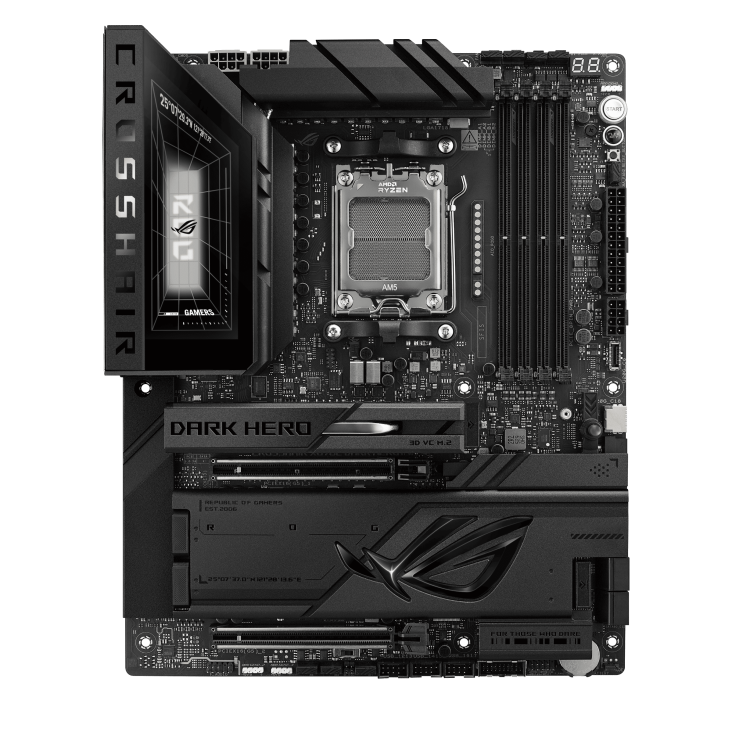

ROG CROSSHAIR X870E DARK HERO Clad in a sleek, understated black design, the ROG Crosshair X870E Dark Hero delivers refined performance for high-end builds, featuring a robust 20+2+2 power stage design, support for high-speed DDR5 memory, and the latest PCIe® 5.0 connectivity. It offers five onboard M.2 SSD slots with heatsinks, including a 3D VC M.2 heatsink for advanced thermal performance, along with Realtek 10G Ethernet and USB4® ports for next-generation connectivity. ASUS-exclusive AI technologies and Polymo Lighting II complete the platform, balancing intelligent tuning with a clean, premium aesthetic.
