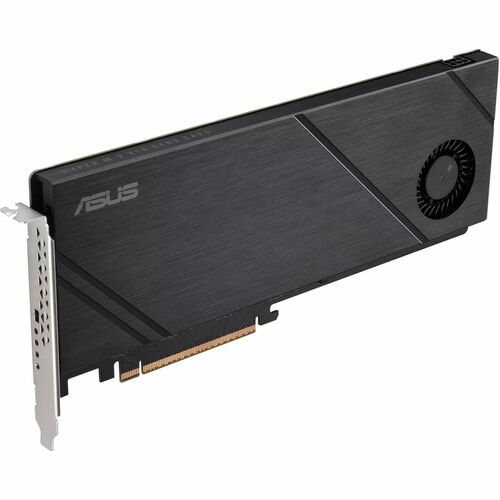

Asus Hyper M.2 x16 Gen5 Card NVMe Controller - NVMe - PCI Express 5.0 x16 - Plug-in Card - RAID Supported - 4 x M.2 Interface(s) 90MC0CY0-M0UAY0

SKU
420436
Brand
MPN
90MC0CY0-M0UAY0
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$177.00
Buy Now And Earn 177 Reward Points!

ASUS Hyper M.2 x16 Gen5 Card (PCIe 5.0/4.0) supports up to four NVMe M.2 (2242/2260/2280/22110) devices at up to 512 Gbps for RAID functions across diverse CPU platforms

  • 1 x 6-pin PCIe power connector and two-phase power solution with up to 14-watt output to support the latest NVMe drives
  • Large heatsink and active fan reduces M.2 SSD temperatures for unthrottled transfer speeds and enhanced reliability; additional fan cable connects to the motherboard's chassis fan header to allow the motherboard to control and regulate fan speed
  • Adapted server-grade PCB supports up to four PCIe 5.0/4.0 M.2 drives, with up to 512 Gbps bandwidth for smooth data transfers

Support RAID Function

The ASUS Hyper M.2 x16 Gen5 Card is able to support RAID functions across different CPU platforms. For ultimate flexibility , unused CPU PCIe lanes can be assigned to storage to create a bootable RAID array with up to four M.2 SSDs.

Enhanced Cooling

The ASUS Hyper M.2 x16 Gen5 Card not only enhances hardware but also incorporates advanced software solutions for efficient thermal management, effectively dissipating heat to keep SSDs at optimal temperature for unwavering performance.

A full-cover heatsink that attaches to the M.2 SSD and features air duct and blower-style fan. Plus, the four M.2 slots are supported by top and bottom thermal pads to reduce temperature-induced throttling during heavy, sustained data transfers.

The integrated blower-style active fan easily connects to the motherboard chassis fan header, allowing users to adjust fan speed in ASUS Fan Xpert 4.

Designed For Unthrottled Transfer Speeds

The ASUS Hyper M.2 x16 Gen5 Card has four M.2 slots - supporting both PCIe 5.0 and 4.0 - that allow users to supplement entire Designed for latest-generation NVMe drives, the card features a stable power supply that provides up to 14 watts of power per drive. The card also supports RAID functions across four M.2 slots ,providing up to 128 GT/s bandwidth per M.2 slot.

Number of M.2 Interfaces4
Form FactorPlug-in Card
Length290 mm
Height15 mm
Width122 mm
Host InterfacePCI Express 5.0 x16
Device SupportedServer
Controller TypeNVMe
Maximum Data Transfer Rate512 Gbit/s
RAID SupportedYes
Product TypeNVMe Controller
Manufacturer Part Number90MC0CY0-M0UAY0
Manufacturer Website Addresshttp://www.asus.com/au
ManufacturerASUS Computer International
Product ModelM.2 x16 Gen5 Card
Product NameHyper M.2 x16 Gen5 Card NVMe Controller
Product LineHyper
Brand NameAsus
