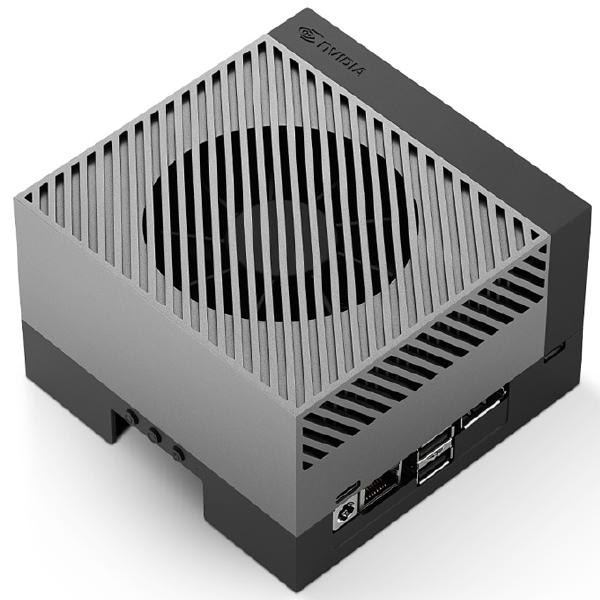

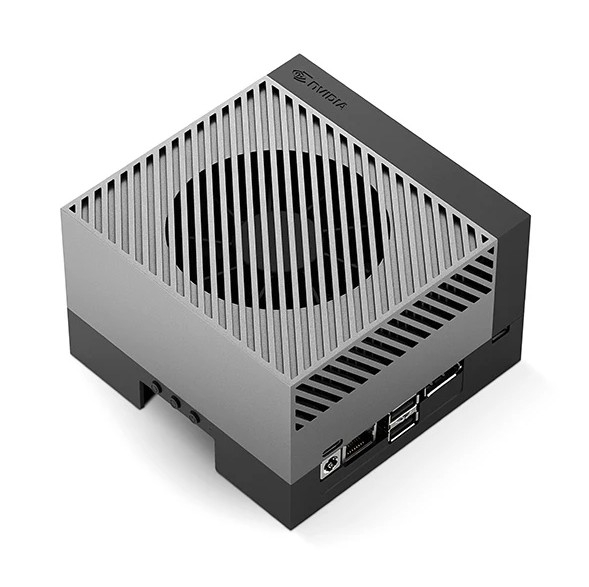

The NVIDIA Jetson AGX Orin 64GB Developer Kit and all Jetson Orin modules share one SoC architecture. This enables the developer kit to emulate any of the modules and makes it easy for you to start developing your next product. Compact size, lots of connectors, 64GB memory, and up to 275 TOPS of AI performance make this developer kit perfect for prototyping advanced AI-powered robots and other edge AI devices.

• AI Performance: 275 TOPS
• GPU: 2048-core NVIDIA Ampere architecture GPU with 64 Tensor Cores
• GPU Max Frequency: 1.3 GHz
• CPU: 12-core Arm Cortex-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3
• CPU Max Frequency: 2.2 GHz
• DL Accelerator: 2x NVDLA v2
• DLA Max Frequency: 1.6GHz
• Vision Accelerator: 1x PVA v2
• Memory: 64GB 256-bit LPDDR5 204.8GB/s
• Storage: 64GB eMMC 5.1
• Video Encode: 2x 4K60 (H.265) 4x 4K30 (H.265) 8x 1080p60 (H.265) 16x 1080p30 (H.265)
• Video Decode: 1x 8K30 (H.265) 3x 4K60 (H.265) 7x 4K30 (H.265) 11x 1080p60 (H.265) 22x 1080p30 (H.265)
• CSI Camera: 16-lane MIPI CSI-2 connector
• PCIe: x16 PCIe slot supporting x8 PCIe Gen4 M.2 Key M slot with x4 PCIe Gen4 M.2 Key E slot with x1 PCIe Gen4
• USB: USB Type-C connector: 2x USB 3.2 Gen2 USB Type-A connector: 2x USB 3.2 Gen2, 2x USB 3.2 Gen1 USB Micro-B connector: USB 2.0
• Networking: RJ45 connector with up to 10 GbE
• Display: 1x DisplayPort 1.4a (+MST) connector
• Other I/O: 40-pin header (UART, SPI, I2S, I2C, CAN, PWM, DMIC, GPIO) 12-pin automation header 10-pin audio panel header 10-pin JTAG header 4-pin fan header 2-pin RTC batter backup connector
• Power: 15W - 60W
• Mechanical: 110mm x 110mm x 71.65mm (Height includes feet, carrier board, module, and thermal solution)
