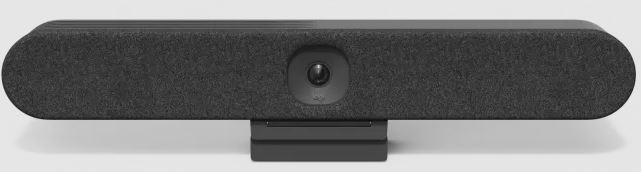

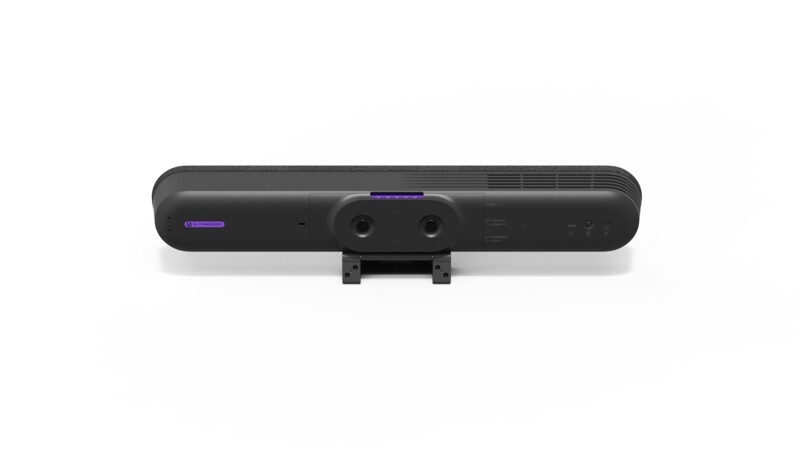

Logitech RALLY BAR HUDDLE ALL IN ONE 4KULTRA HD VIDEO BAR,BUILTIN SPEAKER/MIC, GRAPHITE, 2Y WTY 960-001574
SKU
404894
Brand
MPN
960-001574
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$2,003.00
Buy Now And Earn 2003 Reward Points!
General Specifications
- Built-in Components: 6 DMIC microphone array, digital PTZ camera, 1 full range ported speaker, cable management & retention system, Multi Mount, integrated motorized privacy shutter, Logitech Collab OS platform
- Enclosure: All-in-one enclosure with field replaceable front cover
- Device Management: Logitech Sync
- Displays Supported: 1 (2nd display support is coming soon)
- Display Resolution: 1080p
- Network Protocol Support: IPv4, IPv6
- Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file
Camera
- Digital Pan: ±48° at 4x zoom
- Digital Tilt: ±32° at 4x zoom
- Zoom: 4X HD digital zoom
- Diagonal Field of View: 120°
- Horizontal Field of View: 113°
- Vertical Field of View: 80°
- Resolution: 4K
Speakers
- Driver: 55 mm with bass reflex enclosure and patented suspension design
- Sensitivity: 83 dB SPL @1W +/-2dB @ 1 meter
- Rated Power: 8W
- THD at 1W, 1kHz: <2%
- Speaker Sampling Rate: 48KHz
- Impedance: 4 Ohms
Microphones
- Frequency Response: 90Hz – 16kHz
- Sensitivity: -36dBFS +/-1 dB @ 1Pa
- Microphone data rate output: 48 kHz
- Pickup Range: Up to 7m
- Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
- Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
- Noise suppression: AI based de-noising algorithm
Interfaces
- HDMI Out: 1
- HDMI In: 1
- USB: 1x Type A USB 3.1, 1x Type C USB 3.1
- Network: 10/100/1G Ethernet
- WiFi: 802.11a/b/g/n/ac
- Bluetooth: Bluetooth® Low Energy
Power and Cables
- Power supply: Auto-sensing
- Operating Voltage/Power: 100-240V, 19V, 2.1A
- Power Supply Dimensions: 114 mm x 47 mm x 32.3 mm
- DC Cable: 1.5 m
- AC Cable: 1 m
- HDMI 1.4 Cable: 2 m
- USB A to USB C 3.0 Cable: 2.2 m
Environmental
- Operating Temperature: 0 to 40°C
- Storage Temperature: -25 to 70°C
- Humidity: 10 to 90%
Security
- File Based Encryption: AES-128
- Data Encryption: Symmetric Keys, PKI
- Device Identity: Protected by device attestation
- Device Access: Authenticated using API
- Key Protection: Arm TrustZone, RPMP
Accessories
- Covers: Rally Bar Huddle Front Cover-Cleanable, Off-White Fabric
- Mounts: Wall Mount for Video Bars, TV Mount for Video Bars
- Touch Controller: Logitech Tap (coming soon) and Tap IP
RALLY BAR HUDDLE ALL IN ONE 4KULTRA HD VIDEO BAR,BUILTIN SPEAKER/MIC, GRAPHITE, 2Y WTY
