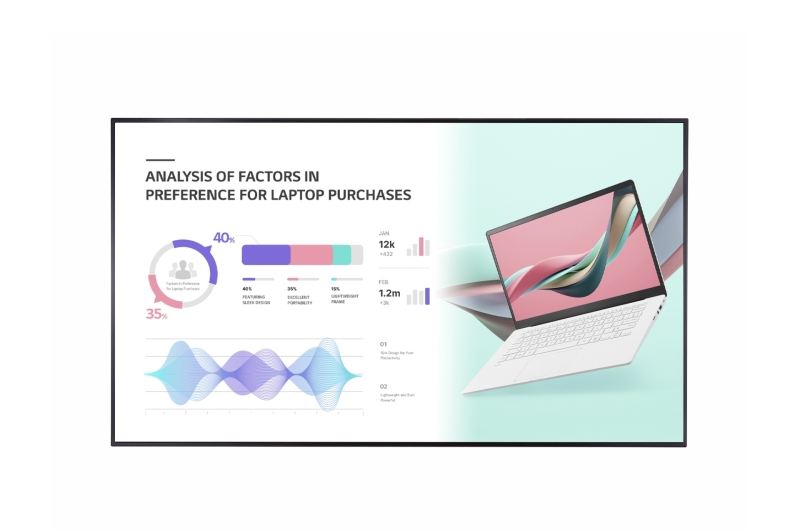

main product photo

LG DIGITAL DISPLAY (UH5J) 98" UHD LED, 500NITS, DVI, DP, HDMI(3), SPKR, WEB O/S, 24/7, 3YR 98UH5J-H

SKU
398145
Brand
Lg
Manufacturer Link
MPN
98UH5J-H
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$14,628.00
Buy Now And Earn 14628 Reward Points!
Add to Compare
LG DIGITAL DISPLAY (UH5J) 98" UHD LED, 500NITS, DVI, DP, HDMI(3), SPKR, WEB O/S, 24/7, 3YR
PANEL
  • Screen Size
    98"
    Panel Technology
    IPS
  • Back Light Type
    Edge
    Aspect Ratio
    16:9
  • Native Resolution
    3840 x 2160 (UHD)
    Refresh Rate
    60Hz
  • Brightness
    500nit (Typ.)
    Contrast Ratio
    1,200:1
  • Dynamic CR
    1,000,000:1
    Color gamut
    NTSC 72%
  • Viewing Angle(H x V)
    178 x 178
    Color Depth
    10bit, 1.07Billion colors
  • Response Time
    8ms (G to G)
    Surface Treatment(Haze)
    28%
  • Life Time
    50,000Hrs (Typ.)
    Operation Hours (Hours/Day)
    24/7
  • Portrait / Landscape
    Yes / Yes
CONNECTIVITY
  • Input
    HDMI (3, HDMI1/HDMI2 : HDCP 2.2/1.4, HDMI3 : HDCP 1.4), DP (1, HDCP2.2/1.3), DVI-D (HDCP1.4), Audio In, RS232C IN (1, 4pin Phone-jack), RJ45(LAN), IR IN, USB2.0 Type A(1)

    Output
    HDMI Out, Audio Out, RS232C OUT (1, 4pin Phone-jack)
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    Even bezel : 14.9mm
  • Weight(Head)
    66Kg
    Packed Weight
    99Kg
  • Monitor Dimension(W x H x D)
    2191.8 x 1246.8 x 86.1mm
    (without Handle and LG Logo)
    Carton Dimensions(W x H x D) (Box outer size)
    2342 x 1386 x 420mm
  • Handle
    Yes
    VESA™ Standard Mount Interface
    800 × 400
KEY FEATURE
  • Key features
    Internal Memory 16 GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness sensor, Acceleration(Gyro) Sensor, Local Key Operation, webOS6.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Multi-screen (PIP, PBP (4)), Screen Share, Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected), Power (Smart Energy Saving, PM mode, Wake on LAN,Beacon, HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%
POWER
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    420W (TBD)
    Max.
    570W (TBD)
  • BTU (British Thermal Unit)
    1433 BTU/Hr(Typ.), 1945 BTU/Hr(Max) (TBD)
    Smart Enegy Saving(~70%)
    294W (TBD)
  • DPM
    0.5W
    Power Off
    0.5W
SOUND
  • Speaker
    Yes
CERTIFICATION
  • Safety
    AS/NZS 60950, CB Scheme
    EMC
    CISPR 32
  • ErP / Energy Star
    Yes (NewErP) / No (TBD)
SOFTWARE COMPATIBILITY
  • SuperSign CMS
    Yes
    SuperSign Control / Control+
    Yes / Yes
  • SuperSign WB
    Yes
    SuperSign Media Editor
    Yes
  • Promota
    Yes (Not available for EU/CIS)
    Mobile CMS
    Yes
  • Signage 365 Care
    Yes
LANGUAGE
  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish, Arabic

ACCESSORY
  • Basic
    Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender
