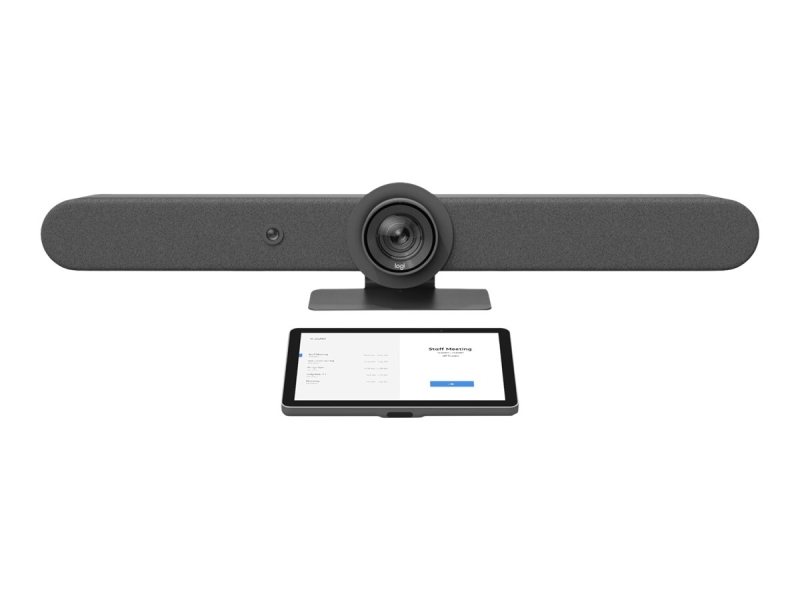

LOGITECH TAP IP AND RALLY BAR,GRAPHITE ,COLLABOS,ANDROID, ZOOM READY, 2YR WTY 991-000425

SKU
386114
Brand
MPN
991-000425
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$6,314.00
Buy Now And Earn 6314 Reward Points!
  • DIMENSIONS

    Height: 164 mm
    Width: 910 mm
    Depth: 130.5 mm
    Lens Depth: 28.8 mm
    Weight: 7.08 kg
  • SYSTEM REQUIREMENTS

    Internet Connection: Wired or wireless
    USB Mode: Windows® 11, Windows 10, the two most recent versions of macOS
    Appliance Mode: Room solution software license (not included)
  • TECHNICAL SPECIFICATIONS

    Certifications & Compatibility

    • Certifications
    • Appliance Mode: Supports compatible video conferencing software in appliance mode (no PC required), including
      • Microsoft Teams Rooms on Android
      • Zoom Rooms
      • GoToRoom®
      • Pexip Room
      • RingCentral Rooms™
      • Tencent Meeting Rooms
    • USB Mode: Plug-and-play USB connectivity with virtually any video conferencing application
    • For the latest information on certifications and compatibility, visit www.logitech.com/support/vc-certifications.

    GENERAL SPECIFICATIONS

    • Built-in Components: 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management & retention system, table stand, Logitech CollabOS platform
    • Enclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference
    • Device Management: Logitech Sync
    • Displays Supported: 2 (up to 1080p)
    • Display Resolution: Up to 1080p
    • Network Protocol Support: IPv4, IPv6
    • Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file

    Camera

    • Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
    • Pan: Motorized ±25°
    • Tilt: Motorized ±15°
    • Zoom: 15X HD zoom (5X optical and 3X digital)
    • Diagonal Field of View: 90°
    • Horizontal Field of View: 82.1°
    • Vertical Field of View: 52.2°
    • Total Room Coverage (field of view + pan and tilt): 132.1° Horizontal x 82.2° Vertical

    Speakers

    • Drivers: 2x 70 mm
    • Sensitivity: 92 dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter
    • Rated Power: 8W
    • THD: 1kHz <2% at 1W
    • Speaker Sampling Rate: 48 kHz
    • Impedance: 4 Ohms

    Microphones

    • Frequency Response: 90Hz – 16kHz
    • Sensitivity: >-36dBFS +/-1 dB @ 1Pa
    • Microphone data rate output: 48KHz
    • Pickup Range: 7 m
    • Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
    • Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
    • Noise suppression: AI based de-noising algorithm
    • Add-on Mics: Supports up to 4 additional Rally Mic Pods and 2 Rally Mic Pod Hubs for larger conference rooms

    RightSense™ Technologies

    • RightLight: Renders natural skin tones for each participant
    • RightSight: Primary camera frames the active speaker while the AI Viewfinder captures everyone in the room
    • RightSound: Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo

    Interfaces

    • HDMI Out: 2 (up to 1080p)
    • HDMI In: 1
    • USB: 3x Type A, 1x Type C
    • Network: 10/100/1G Ethernet
    • WiFi: 802.11a/b/g/n/ac
    • External Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)
    • Remote Control: Bluetooth® Low Energy

    Power & Cables

    • Power supply: Auto-sensing
    • Operating Voltage/Power: 100-240V, 19V, 4.74A
    • Power Supply Dimensions: 127 mm x 51 mm x 30 mm
    • DC Cable: 1.5 m
    • AC Cable: 1 m
    • HDMI 1.4 Cable: 2 m
    • USB A to USB C 3.0 Cable: 2.2 m

    Environmental

    • Operating Temperature: 0 to 40°C
    • Storage Temperature: -40 to 70 °C
    • Humidity: 10 to 95%
    • BTU/hr: 57 idle, 64 in meeting

    Security

    • Full Disk Encryption: AES-128
    • Data Encryption: Symmetric Keys, PKI
    • Device Identity: Protected by device attestation
    • Device Access: Authenticated using API
    • Key Protection: Arm TrustZone, RPMP

    Accessories

  • PACKAGE CONTENTS

    • Rally Bar
    • Power supply
    • AC power cord
    • HDMI cable
    • USB cable
    • Remote control
    • Lens caps for main camera and AI Viewfinder
    • User documentation
  • WARRANTY INFORMATION

    Standard: 2-year limited hardware warranty included.
    Extended: Additional one-year and three-year extended warranties available at the time of hardware purchase.
    Contact your reseller for availability.
  • PART NUMBER

    • White: 960-001327
    • Graphite: 960-001315
LOGITECH TAP IP AND RALLY BAR,GRAPHITE ,COLLABOS,ANDROID, ZOOM READY, 2YR WTY
