Eaton 9px 6kva 1:1 Ups 9px6ki
SKU
230442
Brand
MPN
9PX6KI
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$9,054.00
Buy Now And Earn 9054 Reward Points!
The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
Energy efficient (up to 95% in Online mode, 98% in high-efficiency mode)
Next-generation graphical LCD display (7 languages)
Provides more real power (watts) to protect more equipment with a 0.9 power factor
Parallel operation using HotSync technology
Maintenance ByPass available as an option
Energy metering - kWh values can be monitored using the LCD or Eaton’s Intelligent Power Software Suite
Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)

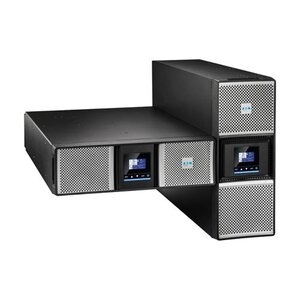

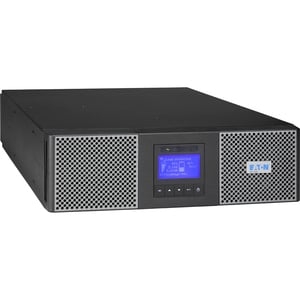

Eaton 9PX 6000i RT3U UPS
| General | |
| Topology | On-line double conversion with PFC (Power Factor Correction) system |
| Configuration | Rack/Tower |
| Part Number | 9PX6Ki |
| Rating (VA/Watts) | 6000/5400 |
| Dimensions (H x W x D, mm) | 130 (3U) x 440 x 685 |
| Weight (kg) | 48 |
| Warranty | 3 years on electronics, 2 years on battery |
| Electrical Input | |
| Connection | Hardwired - see manual for terminal block layout  |
| Input Voltage Range | 176-276V without derating (up to 100–276V with derating) |
| Nominal Voltage | 200/208/220/230/240V |
| Frequency | 50/60 Hz autoselection |
| Frequency Range | 40-70 Hz |
| Short Circuit Current | 90 A |
| THDI | <5% |
| Electrical Output | |
| Voltages | 200/208/220/230/240V +/– 1% |
| Voltage THD | < 2% |
| Output Receptacles | (8) IEC-320-C13  (2) IEC-320-C19  Hardwired - see manual for terminal block layout |
| Overload Capacity | 102–110% : 120s, 110–125%: 60s, 125–150%: 10s, >150%: 500ms |
| Efficiency (Normal Mode) | Up to 94% in Online mode, 98% in Hi-Efficiency mode |
| Output Frequency | 50/60 Hz autoselect, frequency converter as standard |
| Load Crest Factor | 3:1 |
| Battery | |
| Runtime (Minutes) Load (Watts) Battery runtimes are approximate and may vary with equipment, configuration, battery age, temperature, etc. Show: Mouseover graph for detailed runtime values | |
| Battery Management | ABM® and Temperature compensated charging method (user selectable), automatic battery test, deep discharge protection, automatic recognition of external battery units. |
| Extended Battery Capability | EBM (3U) |
| Communications | |
| User Interface | Multilingual graphical LCD display |
| Communication Ports | 1 USB port, 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously), 4 dry contacts (DB9), 1 mini terminal block for remote On/Off and 1 for remote power Off, 1 DB15 for parallel operation. |
| Communication Slot | 1 slot for Network-MS card, ModBus-MS or Relay-MS cards |
| Environmental & Standards | |
| Audible Noise | <45dB |
| Operating Temperature | 0 to 40°C continuous |
| Safety markings | IEC/EN 62040-1, UL 1778, CSA 22.2 |
| EMC Markings | IEC/EN 62040 -2 , FCC Class A, IEC/EN 62040-3 (Performance), C-Tick |
| Approvals | CE, CB report (TUV), UL |
