Eaton 9PX Lithium Ion UPS 1500VA/1500W R/T 10A Input 9PX1500IRTANZ-L
SKU
380964
Brand
MPN
9PX1500IRTANZ-L
Warranty
Standard Manufacturer's Warranty
$3,929.00
Buy Now And Earn 3929 Reward Points!

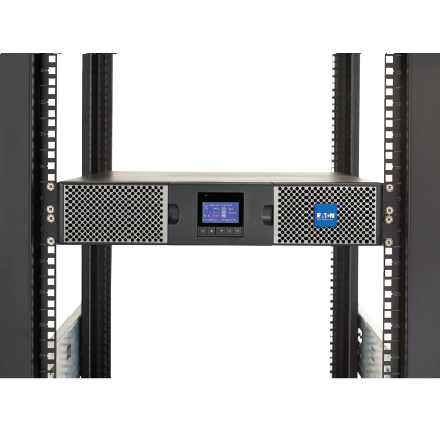

Eaton 9PX Lithium Ion UPS 1500VA/1500W R/T 10A Input
| GTIN | 743172105332 |
|---|---|
| Brand | Eaton |
| Model | 9PX1500IRTANZ-L |
| Phase | Single Phase |
| Ports | Serial port Output relay ports |
| Series | 9PX |
| Weight | 20.7 kg |
| Outputs | 8 x IEC 60320 C13 (10A) |
| Category | Power and Rack Equipment |
| Features | High efficiency double-conversion topology Meters energy consumption to outlet groups (kWh) via LCD or software Internal bypass and maintenance bypass for service continuity Firmware upgrades locally or remotely via Gigabit network management card Reduced UPS and EBM size and weight compared to previous models |
| Topology | Double Conversion Online (On Line) |
| Warranty | 5 Year manufacturer warranty |
| Dimensions | 58 × 24 × 55 cm |
| Technology | Lithium-ion battery |
| Description | The Eaton 9PX 1500VA (1.5 kVA / 1.5 kW) lithium-ion double-conversion online UPS delivers high-efficiency, enterprise-grade power protection in a convertible rackmount/tower form factor. Designed for longer battery life (8–10 years) and extended runtimes with up to four optional hot-swappable external battery modules, the 9PX includes load-segment control for prioritized shutdowns, remote power on/off (RPO/ROO), output relay ports, internal and maintenance bypass, and advanced monitoring via LCD or Eaton Intelligent Power Software. Network management is available via an Eaton Gigabit network management card (dual cybersecurity certifications), and rack-mounting hardware is included. |
| Form Factor | Rackmount / Tower convertible |
| Manufacturer | Eaton |
| Runtime Note | Approx. 10.5 minute standby (vendor specification) |
| Sub-Category | Power Equipment |
| Input Voltage | 230 V AC |
| Product Title | Eaton 9PX 1500VA Lithium-ion Double-Conversion Online UPS - Rack/Tower (9PX1500IRTANZ-L) |
| Certifications | Energy Star qualified Gigabit network management card certifications: UL 2900-1 & IEC 62443-4-2 (when installed) |
| Output Voltages | 230 V AC 220 V AC 208 V AC 200 V AC |
| Power Rating (VA) | 1500 VA |
| Power Rating (kW) | 1.50 kW |
| Included Accessories | Rack mounting kits |
| Battery Life Expectancy | 8 to 10 years (lithium-ion) |
| Manufacturer Part Number | 9PX1500IRTANZ-L |
| Control / Remote Features | Load segment control (prioritized shutdown) Remote power on (RPO) Remote on/off (ROO) |
| External Battery Modules Supported | Up to 4 optional external hot-swappable battery modules |
Eaton 9PX Lithium Ion UPS 1500VA/1500W R/T 10A Input
