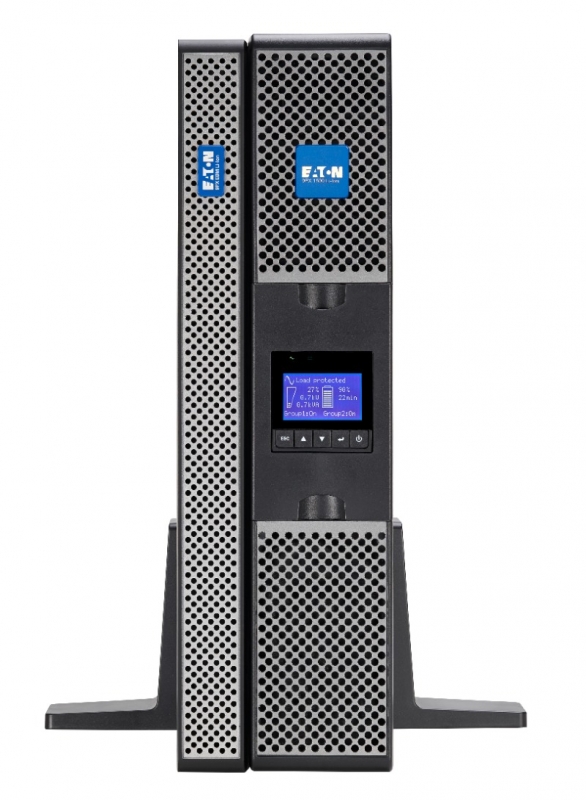

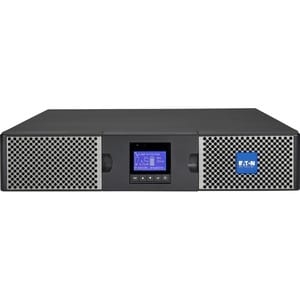

9PX 3000VA Anz Lithium Ion Online Double Conversion UPS 9PX3000IRTANZ-L
SKU
380397
Brand
MPN
9PX3000IRTANZ-L
Warranty
Standard Manufacturer's Warranty
$7,449.00
Buy Now And Earn 7449 Reward Points!
The 9PX lithium-ion UPS is part of the Eaton 9 series single-phase double-conversion UPS line, best applied to mission-critical equipment for constant power conditioning.
The 9PX lithium-ion UPS provides 8 to 10 years of life expectancy for UPS and its batteries, and has power ratings ranging from 1.5 to 3 kVA, while also offering up to four external battery modules (EBM) for extra runtime.
The 9PX lithium-ion UPS has the same reliable features as the 9PX lead-acid UPS, including load segments for prioritized shutdowns, remote power on (RPO), remote on/off (ROO) and output relay ports that increase control capabilities.
For connectivity, the 9PX is compatible with the Gigabit Network Card (NETWORK-M2). It improves power system reliability by providing warnings of pending issues and helping to perform orderly graceful shutdown of servers and storage.
The 9PX lithium-ion UPS provides 8 to 10 years of life expectancy for UPS and its batteries, and has power ratings ranging from 1.5 to 3 kVA, while also offering up to four external battery modules (EBM) for extra runtime.
The 9PX lithium-ion UPS has the same reliable features as the 9PX lead-acid UPS, including load segments for prioritized shutdowns, remote power on (RPO), remote on/off (ROO) and output relay ports that increase control capabilities.
For connectivity, the 9PX is compatible with the Gigabit Network Card (NETWORK-M2). It improves power system reliability by providing warnings of pending issues and helping to perform orderly graceful shutdown of servers and storage.
| Application/Usage | Data Center, Edge Computing, Virtual Platform, Telecommunication, Storage, Server, Non-critical Device, Network, Mission Critical Equipment, Mining, IT Infrastructure, Healthcare |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Product Type | Double Conversion Online UPS |
| Input Voltage | 230 V AC |
| Form Factor | Rack/Tower |
| Network Management | Modbus TCP, Modbus RTU |
| Rack Height | 2U |
| Brand Name | Eaton |
| Plug/Connector Type | IEC 60320 C20 (16A) |
| Input Voltage Range | 176 V AC - 276 V AC |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C13 (10A), Outlet Group, IEC 60320 C19 (16A) |
| Product Family | 9PX Lithium-ion 9PX |
| Backup/Run Time (Half Load) | 21 Minute |
| Backup/Run Time (Full Load) | 10.50 Minute |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.40 kW |
| Energy Star | Yes |

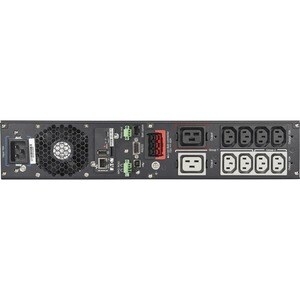

| Receptacle Detail | 8 x IEC 60320 C13 (10A), 2 x IEC 60320 C19 (16A), 2 x Outlet Group |
| Typical Battery Recharge Time | 3 Hour |
| Status Indicators | • 4 LEDS Multilingual LCD : • Access to Measures • Alarm Messages • Customization |
| Sound Emission | 40 dB |
| Maximum Operating Temperature | 40°C |
| Manufacturer Part Number | 9PX3000IRTANZ-L |
| Manufacturer Website Address | http://www.eatoncorp.com.au |
| Manufacturer | Eaton Corporation |
| Product Model | 9PX3000IRTANZ-L |
| Product Name | 9PX Lithium-ion UPS |
| Product Line | 9PX Lithium-ion |
| Product Series | 9PX |
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Package Contents | • 9PX Lithium-ion UPS • All Necessary Hardware For Rack & Tower Mounting |
| Weight (Approximate) | 22.80 kg |
| Height | 86.5 mm |
| Width | 440 mm |
| Depth | 605 mm |
| Output Voltage | 208 V AC, 220 V AC, 240 V AC, 230 V AC, 200 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 70 Hz |
| Shipping Dimensions | Height 24, Width 58, Length 77, Shipping Weight 29.3 KG |
9PX 3000VA ANZ Lithium Ion Online Double Conversion UPS
