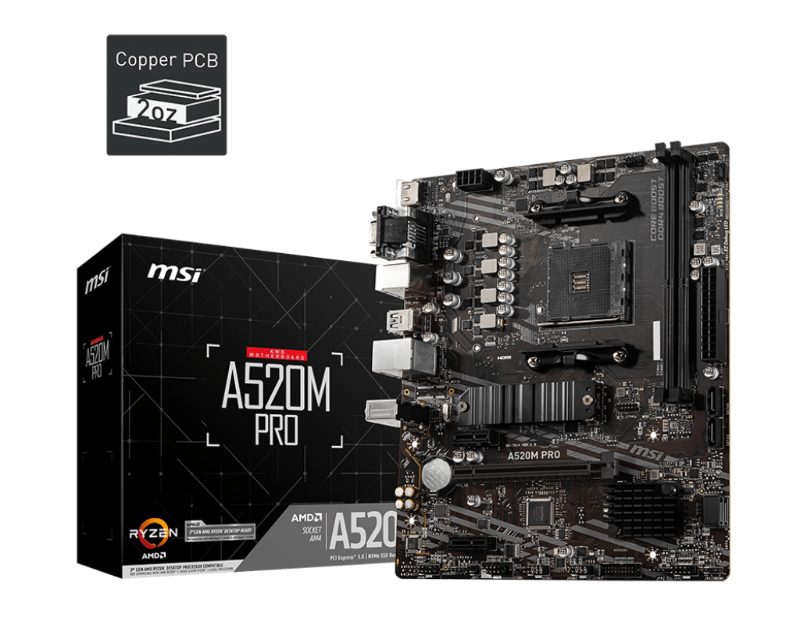

MSI A520M PRO Motherboard Supports AMD Ryzen 5000 & 3000 Series desktop processors
SKU
370821
Brand
Warranty
Standard Manufacturer's Warranty
No Longer Available
$0.00
Buy Now And Earn 0 Reward Points!
QUICK OVERVIEW
and AMD Ryzen 4000 G-Series desktop processors
Audio
| Audio Channels | 7.1 |
Miscellaneous
| Brand Compatibility | AMD |
Network & Communication
| Gigabit Ethernet | Yes |
Video
| Onboard Video | CPU Dependent Video |
Physical Characteristics
| Form Factor | Micro ATX |
| Width | 243.8 mm |
| Depth | 210.8 mm |
Memory
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 2 |
| Memory Form Factor | DIMM |
| UDIMM | |
| Memory Speed Supported | 3200 MHz (O.C.) |
| 3066 MHz | |
| 4266 MHz (O.C.) | |
| 4000 MHz (O.C.) | |
| 4133 MHz (O.C.) | |
| 2667 MHz (O.C.) | |
| 3600 MHz (O.C.) | |
| 3000 MHz (O.C.) | |
| 2933 MHz (O.C.) | |
| 4400 MHz (O.C.) | |
| 2800 MHz | |
| 1866 MHz | |
| 2800 MHz (O.C.) | |
| 3000 MHz | |
| 3200 MHz | |
| 3466 MHz (O.C.) | |
| 2133 MHz | |
| 2400 MHz | |
| 4600 MHz (O.C.) | |
| 3066 MHz (O.C.) | |
| 2933 MHz | |
| 3733 MHz (O.C.) | |
| 2667 MHz | |
| 3866 MHz (O.C.) |
I/O Expansions
| Number of PCI Express x1 Slots | 2 |
| Number of Total Expansion Slots | 3 |
| Number of PCI Express x16 Slots | 1 |
| Total Number of PCI Express Slots | 3 |
I/O Controller
| RAID Levels | 0 |
| 1 | |
| 10 | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
Onboard Interfaces
| Number of SATA Interfaces | 4 |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of M.2 Interfaces | 1 |
| Number of Onboard USB 3.2 Ports | 2 |
General Information
| Product Type | Desktop Motherboard |
| Manufacturer Website Address | http://au.msi.com |
| Manufacturer | MSI |
| Product Model | A520M PRO |
| Product Name | A520M PRO Desktop Motherboard |
| Product Series | PRO |
| Brand Name | MSI |
Interfaces/Ports
| HDMI | Yes |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 1 |
| DisplayPort | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Ports | 4 |
Processor & Chipset
| Processor Supported | Ryzen 5 |
| Ryzen 3 | |
| Ryzen 9 | |
| Ryzen 7 | |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM4 |
| Chipset Manufacturer | AMD |
