Powerbox Pow-13 Wm 13.8VDC 3.5A Power Supply (50W) & Wmbb Enclosure -2Yrs ACPS13.8
SKU
409412
Brand
MPN
ACPS13.8
Warranty
Standard Manufacturer's Warranty
$266.00
Buy Now And Earn 266 Reward Points!

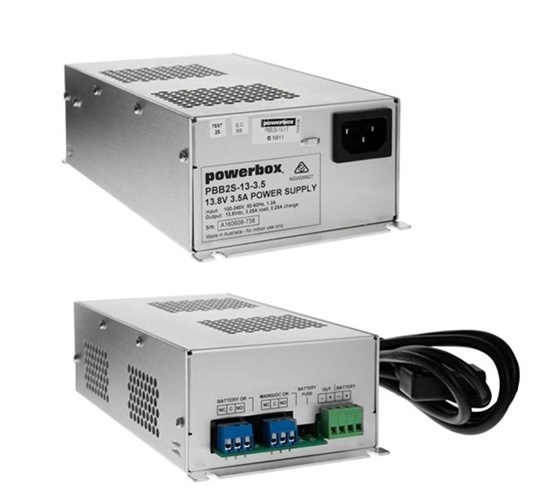

The PBB2S-13-3.5-WMBB-K includes the PBB2S-13-3.5 PSU and the WMBB enclosure.
Accepts Batteries 7AH to 17AH (Not included)
The PBB2S1335 is a 13.8Vdc, 3.5A off-line battery charger / DC uninterrupted power supply which operate from 100-240Vac mains power.
When connected to a valve regulated lead-acid (VRLA) battery, these units provide uninterrupted power to a DC load in the event of mains failure. The PBB2S Series contains a two-step current limited float charger, output over-current and short circuit protection, a self-resetting battery fuse, over-temperature protection, and mains DC OK battery OK and battery fuse fail alarms.
The PBB2S is available in a light weight corrosion resistant aluminium chassis mount enclosure.
- 12VDC 3.5A power supply for battery backup.
- High reliability and high efficiency.
- Industrial-grade switching power converter.
- Light weight corrosion resistant aluminium enclosure.
- Output over current and short circuit protection.
- Separate current-limited battery charging output.
- Output over voltage protection.
- Self-resetting battery fuse.
- Over temperature protection.
- Mains OK / DC OK - Green LED and alarm contact.
- Green Battery OK - Green LED and alarm contact.
- Battery Fuse Fail - Red LED.
- Dimensions 219 (L) x 114 (W) x 62 mm (D).
Accepts Batteries 7AH to 17AH (Not included)
The PBB2S1335 is a 13.8Vdc, 3.5A off-line battery charger / DC uninterrupted power supply which operate from 100-240Vac mains power.
When connected to a valve regulated lead-acid (VRLA) battery, these units provide uninterrupted power to a DC load in the event of mains failure. The PBB2S Series contains a two-step current limited float charger, output over-current and short circuit protection, a self-resetting battery fuse, over-temperature protection, and mains DC OK battery OK and battery fuse fail alarms.
The PBB2S is available in a light weight corrosion resistant aluminium chassis mount enclosure.
- 12VDC 3.5A power supply for battery backup.
- High reliability and high efficiency.
- Industrial-grade switching power converter.
- Light weight corrosion resistant aluminium enclosure.
- Output over current and short circuit protection.
- Separate current-limited battery charging output.
- Output over voltage protection.
- Self-resetting battery fuse.
- Over temperature protection.
- Mains OK / DC OK - Green LED and alarm contact.
- Green Battery OK - Green LED and alarm contact.
- Battery Fuse Fail - Red LED.
- Dimensions 219 (L) x 114 (W) x 62 mm (D).
| 1 | PBB2S-13-3.5 0 POWERBOX POW-13 CME MKII 13.8VDC 3.25A POWER SUPPLY (45W) -2YRS $122.00 |
| QTY | SKU SOH DESCRIPTION PRICE(EX GST) |
| Iout | 3.25A |
| Ptot | 50W |
| Vout | 13.8Vdc |
| Model | PBB2S-13-3.5-WMBB-K |
| Itotal | 3.5A |
| Current [A] | 1.3 max. |
| Total Power | 50W |
| Voltage [V] | 190 - 265Vac 1ø |
| Frequency [Hz] | 45 - 65Hz |
| Dimensions (LxWxH) | 375 x 362 x 111.5mm |
| Battery Configurations (Not included) | 1 x 12V 7Ah or 1 x 12V 9Ah or 1 x 12V 17Ah |
The PBB2S-13-3.5-WMBB-K includes the PBB2S-13-3.5 PSU and the WMBB enclosure.
