ATDEC MEDIA STORAGE SLIDING PANEL, 273 x 420 mm, 10YR WTY AD-AC-PS
AD-AC-PS

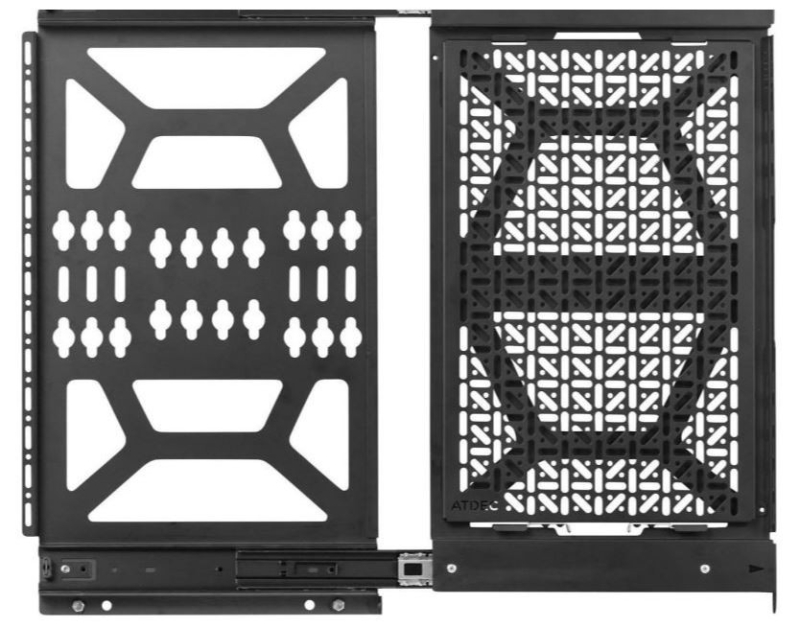

This sliding storage panel is designed to accommodate equipment
behind the display. Its generous storage area with universal
mounting hole pattern accommodates a variety of media and
networking devices on a single panel. The sliding mechanism
assists with system installation and maintenance. The slider
extends 350mm for easy access and cabling. All components can be
mounted on a removable mounting tray and then hooked onto the
slider using the quick release/attachment mechanism. The sliding

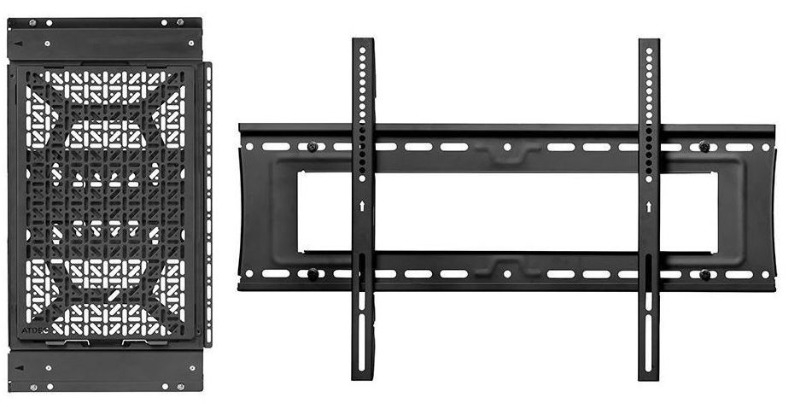

panel can be attached directly to the wall or to Atdec’s ADB
extrusions on either side of the display. Anti-theft features
include a 6mm padlock hole and security screws.
- Ideal for web conferencing equipment and content distribution devices
- Generous 273 x 420mm mounting area
- Extended sliding distance
- Removable mounting tray
- Left or right side installation
- Security features
- Material: Steel
- Warranty: 10 years
Important: The media storage panel’s depth when
attached to the wall is 18mm. When choosing a compatible display
bracket and mounting arrangement, consider the depth of the
equipment attached to the sliding panel to allow for free
sliding movement.
The total minimum distance from the wall to the back of the
display is a sum of the following dimensions:
B
(minimum) = A + C + D
A: depth of the tallest device attached to the sliding panel
C: depth of the sliding panel (18mm)
D: clearance of 3mm recommended to allow
for variances
Product code | AD-AC-PS |
Material | Steel |
Warranty | 10 years |
VESA mounting hole pattern, mm | Universal |
