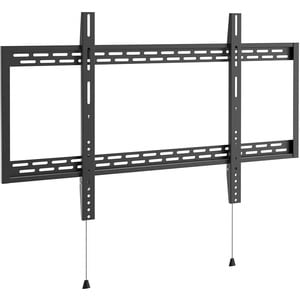

Atdec AD-WF-10090 fixed-angle wall mount - capacity to 100kg (220lb) - for mounting large heavy displays - Black AD-WF-10090
Fixed-angle wall mount, max. 220lb (100kg). For mounting large heavy displays.
Mounts large and heavy displays parallel to the wall, with multiple features to make installation easy and confident. This mount is for universal application in commercial, domestic, and light industrial environments.
AD-WF-10090 supports displays to 220lb (100kg) with universal VESA 100x200 to 900x600.
The large display will mount with a low profile to wall of just 1.3" (32mm). Installers can use integrated lateral shift capability to position the display precisely as desired. Other installation optimizations include spring-loaded locking tabs for quick display attachment, forgiving slotted mounting holes, and magnetic tipped display release cords (concealable). AD-WF-10090 suits most wall types (with appropriate hardware).
Choose me for:
- Large heavy displays & touchscreens
- Installer-first design for safe trouble-free use
- Robust functionality & long service life
- Assurance of a high-quality respected brand
Miscellaneous | |
Application/Usage | Industrial |
Domestic | |
Commercial | |
General Information | |
Product Type | Wall Mount |
Manufacturer Part Number | ADWF10090 |
Manufacturer Website Address | http://www.atdec.com.au |
Manufacturer | Atdec Pty Ltd |
Product Name | Fixed Wall Mount 10090 |
Brand Name | Atdec |
Product Information | |
Device Supported | Display |
Touch Panel | |
Features | Locking System |
Spring Loaded Mechanism | |
Robust | |
Heavy Duty | |
Magnetic Cord Organizer | |
Quick Release Mechanism | |
Maximum Load Capacity | 99.79 kg |
Mount Profile | Fixed |
Mount Pattern | Universal |
Physical Characteristics | |
Weight (Approximate) | 5.31 kg |
Length | 111.5 cm |
Width | 41.4 cm |
VESA Mount Compatible | Yes |
Mounting Pattern | 300 x 200 |
300 x 300 | |
400 x 200 | |
400 x 300 | |
400 x 400 | |
400 x 600 | |
600 x 400 | |
800 x 200 | |
800 x 400 | |
800 x 600 | |
900 x 600 | |
200 x 600 | |
100 x 200 | |
200 x 200 | |
200 x 300 | |
200 x 400 | |
Product Material | Steel |
