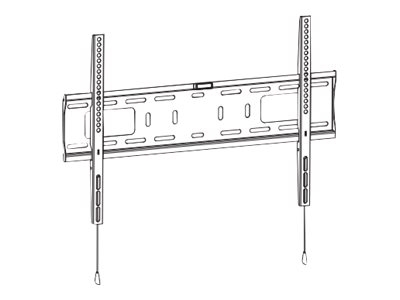

ATDEC FIXED DISPLAY WALL MOUNT, UP TO 50KG, VESA UP TO 600x400, 10 YR WTY AD-WF-5060
AD-WF-5060 is an effective solution for mounting most single displays. It is intended for use where wider wall brackets are required, particularly for stud walls with 24” stud spacing.
This wall mount is designed for displays to 50kg (110lbs) and universal VESA patterns to 600x400.
The AD-WF-5060 mounts displays parallel to the wall, with a low 25mm (1”) profile. Its versatility and compact construction makes AD-WF-5060 suitable for commercial, domestic, and most light industrial environments.
AD-WF-5060 suits most types of walls (with appropriate hardware*) and demonstrates Atdec’s easy installation ethos, with an integrated spirit level and slotted mounting holes. The brackets allow minor lateral adjustment to position the display precisely as desired.
Consider AD-WF-5040 for narrower stud spacing.
*wall mount hardware not included
| Length, single unit (cm) | 67 |
| Width, single unit (cm) | 15.5 |
| Height, single box (cm) | 3 |
| Weight, single unit, kg | 2.00 |
| Length, master carton (cm) | 68.5 |
| Width, master carton (cm) | 26.5 |
| Height, master carton (cm) | 17 |
| Single units per master pack | 8 |
| Weight, master carton, kg | 16.38 |
