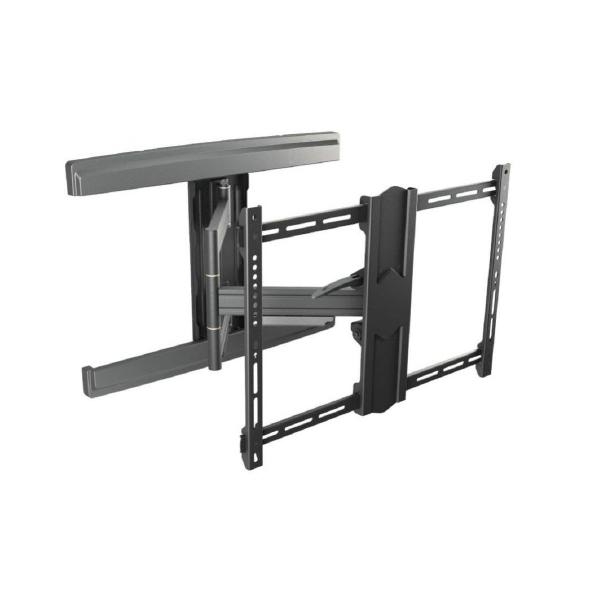

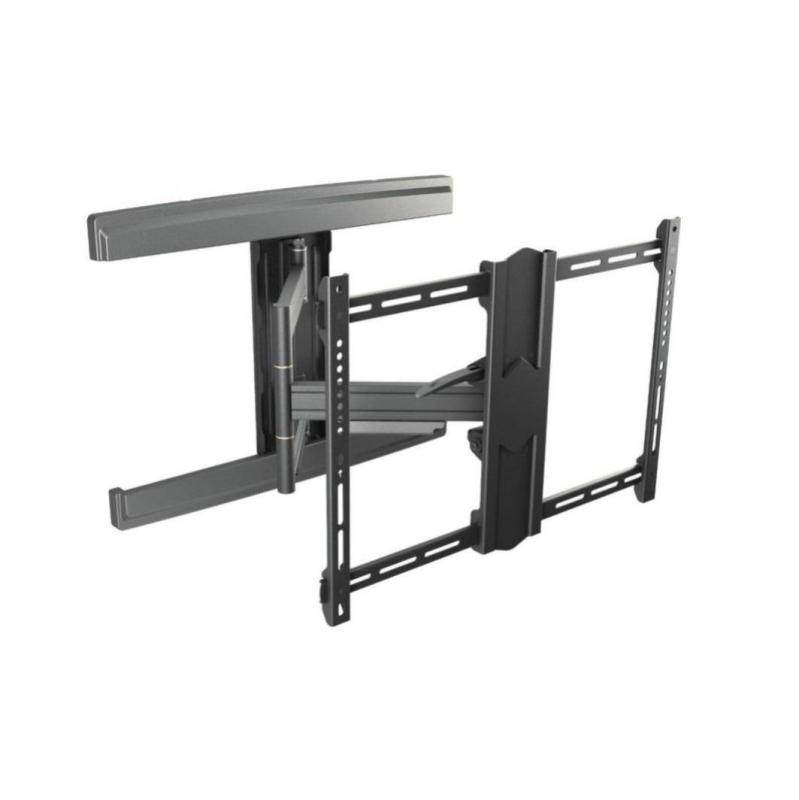

Atdec Ad-Wm-5060 Full Motion Wall Mount To 50kg AD-WM-5060
SKU
380920
Brand
MPN
AD-WM-5060
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$301.00
Buy Now And Earn 301 Reward Points!
Atdec AD-WM-5060 Full Motion Wall Mount. Max load 50kg. VESA up to 600x400. Black.
AD-WM-5060 full motion wall mount has capacity 50kg (110lb). The mounted display can be moved in/out, laterally, tilt, pan, and rotationally.
The mount comes pre-assembled for fast easy installation. The display arm has alternative fixing points to accommodate the best viewing angle for the environment. It's single arm can be moved on a +/-200mm (7.9") range on the wall bracket.
Choose me for:
Mount site isn't an optimal viewing angle
Easy access to the rear of the display
Pre-assembled for easy installation
Technical specifications:
Display capacity:
to 50kg (110lb)
32" to 70"
Display adjustments:
Tilt -15° to +2°
Pan -90° to +90°
Rotational levelling +/-3°
Lateral shift +/-200mm (7.9")
Arm extension 70mm to 650mm (2.8" to 25.6")
VESA universal to 600x400
Cable management
Aluminium and steel material
10 year warranty
* wall mount hardware not included
Learn more about Atdec for digital signage applications.
AD-WM-5060 full motion wall mount has capacity 50kg (110lb). The mounted display can be moved in/out, laterally, tilt, pan, and rotationally.
The mount comes pre-assembled for fast easy installation. The display arm has alternative fixing points to accommodate the best viewing angle for the environment. It's single arm can be moved on a +/-200mm (7.9") range on the wall bracket.
Choose me for:
Mount site isn't an optimal viewing angle
Easy access to the rear of the display
Pre-assembled for easy installation
Technical specifications:
Display capacity:
to 50kg (110lb)
32" to 70"
Display adjustments:
Tilt -15° to +2°
Pan -90° to +90°
Rotational levelling +/-3°
Lateral shift +/-200mm (7.9")
Arm extension 70mm to 650mm (2.8" to 25.6")
VESA universal to 600x400
Cable management
Aluminium and steel material
10 year warranty
* wall mount hardware not included
Learn more about Atdec for digital signage applications.
| Length, single unit (cm) | 72.6 |
| Width, single unit (cm) | 54.6 |
| Height, single box (cm) | 9.5 |
| Weight, single unit, kg | 13.62 |
| Length, master carton (cm) | 74.5 |
| Width, master carton (cm) | 56 |
| Height, master carton (cm) | 21 |
| Single units per master pack | 2 |
| Weight, master carton, kg | 28.90 |
| Range of motion | Full motion |
| Spring assisted height adjustability | No |
| Tilt adjustment | +2° / -15° |
| Pan adjustment | +90° / -90° |
| Horizontal levelling adjustment | - |
| Landscape to portrait screen rotation | No |
| Minimum distance from wall (mm) | 70mm (2.75") |
| Maximum distance from wall (mm) | 650mm (25.6") |
Atdec AD-WM-5060 Full Motion Wall Mount. Max load 50kg. VESA up to 600x400. Black.
