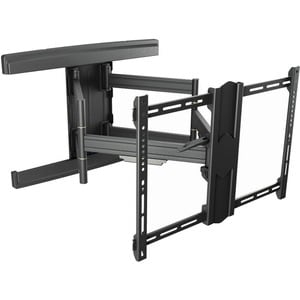

Ad-Wm-7060 Full Motion Wall Mount - Capacity To 70kg (156lb) - Screens 32" To 80" - Arm Extension 800mm (31.5") - Black AD-WM-7060
SKU
417003
Brand
MPN
AD-WM-7060
Warranty
Standard Manufacturer's Warranty
$420.00
Buy Now And Earn 420 Reward Points!
Full motion wall mount to 70kg (156lb)
AD-WM-7060 full motion wall mount has capacity 154lb (70kg). The mounted display can be moved in/out, laterally, up/down, and rotationally.
The mount has fixed angle parallel to the wall and multiple features for fast and easy installation. Lateral shift enables the display to be positioned exactly as desired, even if offset to the wall bracket position. It has a built-in spirit level, forgiving slotted mounting holes, quick-connect display attachment, and easy to conceal magnetic tipped display release cords.
Choose me for:
• Mount site isn't an optimal viewing angle • Easy access to the rear of the display • Pre-assembled for easy installation
AD-WM-7060 full motion wall mount has capacity 154lb (70kg). The mounted display can be moved in/out, laterally, up/down, and rotationally.
The mount has fixed angle parallel to the wall and multiple features for fast and easy installation. Lateral shift enables the display to be positioned exactly as desired, even if offset to the wall bracket position. It has a built-in spirit level, forgiving slotted mounting holes, quick-connect display attachment, and easy to conceal magnetic tipped display release cords.
Choose me for:
• Mount site isn't an optimal viewing angle • Easy access to the rear of the display • Pre-assembled for easy installation
| Application/Usage | Wall, Meeting Room, Industrial, Domestic, Commercial |
| Product Type | Wall Mount |
| Device Supported | Flat Panel Display, Touchscreen Monitor |
| Features | Adjustable Tension, -15° to 2° Tilt, +/- 90° Pan Swivel, +/- 3° Rotation, +/- 3° Level Adjustment, Cable Management, Tilt, Pan, Leveling System, Lateral Adjustment, Easy to Install, Extendable Arm, Flexible, Full Motion |
| Maximum Load Capacity | 69.85 kg |
| Brand Name | Atdec |
| Minimum Screen Size Supported | 81.3 cm |
| Maximum Screen Size Supported | 203.2 cm (80") |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 200 x 100, 200 x 200, 300 x 200, 400 x 200, 400 x 300, 400 x 400, 600 x 200, 600 x 400, 300 x 300 |
| Product Color | Black |
| Color Family | Black |
| Product Material | Plastic, Aluminium, Steel |
| Manufacturer Part Number | AD-WM-7060 |
| Manufacturer Website Address | http://www.atdec.com.au |
| Manufacturer | Atdec Pty Ltd |
| Product Name | Full Motion All Mount to 70kg (156lb) |
| Assembly Required | Yes |
| Weight (Approximate) | 17.87 kg |
| Form Factor | Wall Mountable |
| Length | 91.4 cm |
| Width | 54.6 cm |
| Orientation | Horizontal/Vertical |
| Mount Profile | Slim Profile |
| Minimum Tilt Angle | -15° |
| Maximum Tilt Angle | 2° |
| Height Adjustable | No |
| Minimum Rotate Angle | -3° |
| Maximum Rotate Angle | 3° |
| Minimum Pan Angle | -90° |
| Maximum Pan Angle | 90° |
| Shipping Dimensions | Height 10, Width 55, Length 92.5, Shipping Weight 18.5 KG |
AD-WM-7060 full motion wall mount - capacity to 70kg (156lb) - screens 32" to 80" - arm extension 800mm (31.5") - Black
