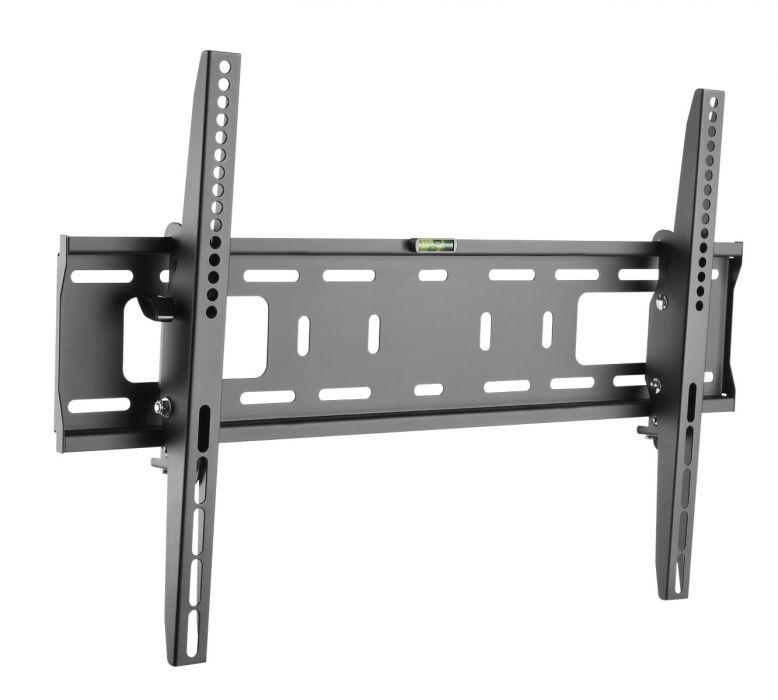

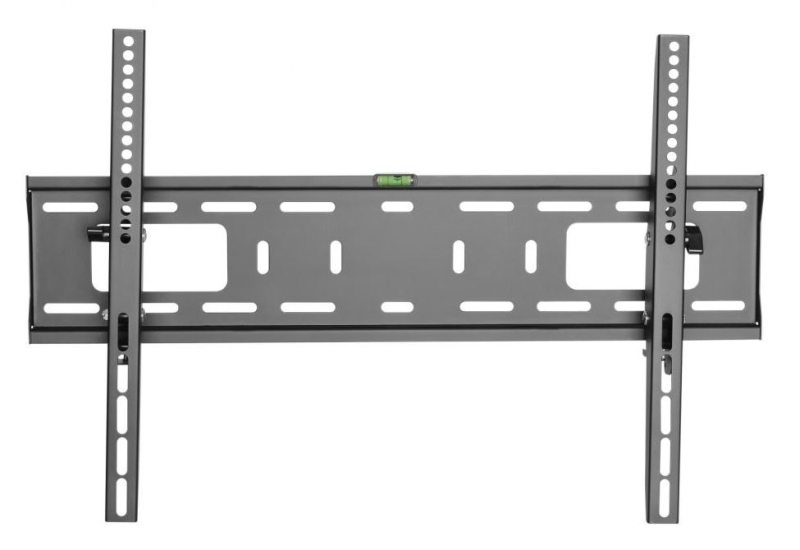

ATDEC TILT DISPLAY WALL MOUNT, UP TO 50KG, VESA UPTO 600x400, 10 YR WTY AD-WT-5060
AD-WT-5060 suits applications that require a tilted display, space behind the display for device/s, and fixture to stud walls with 24” stud spacing.
This wall mount is designed for displays to 50kg (110lbs) and universal VESA patterns to 600x400.
The AD-WT-5060 mounts displays tilted -10° to +5° to the wall, with 56mm (2.2”) space at rear in which devices may be concealed. Its versatility and construction makes AD-WF-5060 suitable for commercial, domestic, and most light industrial environments.
AD-WT-5060 suits most types of walls (with appropriate hardware*) and demonstrates Adtec’s easy installation ethos, with an integrated spirit level and slotted mounting holes. The brackets allow minor lateral adjustment to position the display precisely as desired.
Consider AD-WT-5040 for narrower stud spacing.
* wall mount hardware not included
Choose me for:
- Stud walls with 24” spacing
- Tilted display capability
- Space behind display
- Robust functionality & long service life
- Easy, safe & tidy installation
- Superseding Atdec's TH-3060-UT
| Length, single unit (cm) | 67.5 |
| Width, single unit (cm) | 15.5 |
| Height, single box (cm) | 6.5 |
| Weight, single unit, kg | 2.60 |
| Length, master carton (cm) | 69 |
| Width, master carton (cm) | 28.3 |
| Height, master carton (cm) | 33 |
| Single units per master pack | 8 |
| Weight, master carton, kg | 21.94 |
