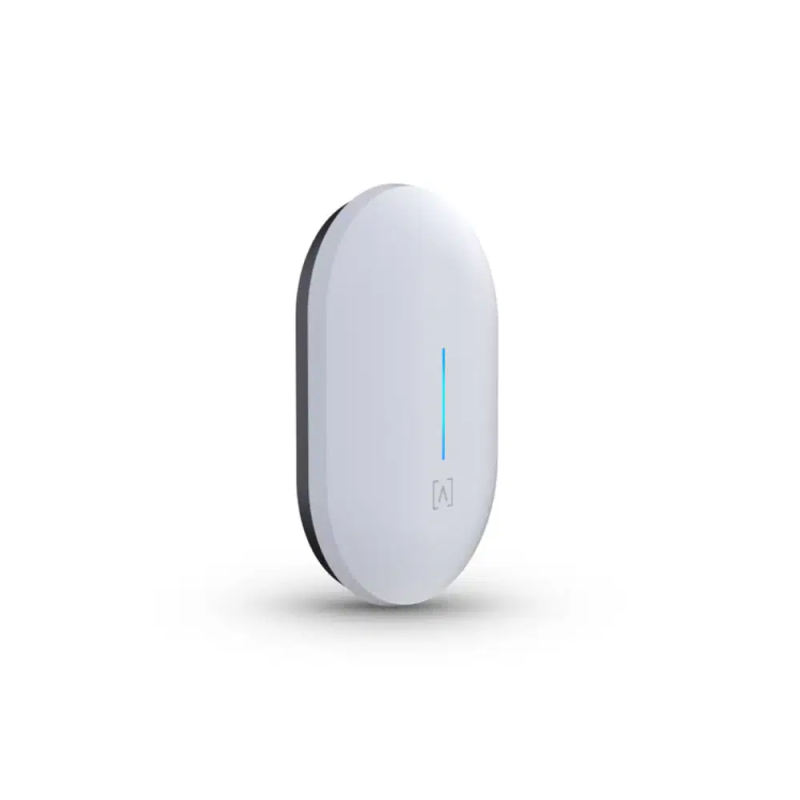

The Alta Labs AP7-Pro Tri-Band WiFi 7 Access Point delivers next-level wireless performance for demanding corporate, commercial, and residential environments. Housed in a sleek, elegant enclosure, it combines robust enterprise features with effortless cloud-based management. Built around a high-performance 10Gbps Ethernet port, this access point ensures wired throughput never bottlenecks your ultra-fast wireless network.

Equipped with Tri-Band technology, the access point features a 4x4 MIMO radio on the 5GHz band alongside 2x2 MIMO radios on the 2.4GHz and 6GHz bands. It delivers maximum wireless throughput speeds of up to 649Mbps on 2.4GHz and up to 5.8Gbps on both 5GHz and 6GHz bands, bringing total combined throughput up to 12.25Gbps. Designed to handle over 500 concurrent clients, it features high-density 4096-QAM modulation, Zero Wait DFS, and 802.11r/k/v seamless roaming.

Management is simple and powerful via the scalable Alta Control cloud platform and mobile app. Advanced built-in features include Deep Packet Inspection (DPI) for application and domain filtering without extra hardware, customisable captive portals with guest vouchers, and AltaPass multi-password technology to assign access levels per password. With support for 5GHz and 6GHz wireless mesh and One-Click Passpoint carrier offload, it provides complete flexibility for high-density wireless deployments.

Features

• Next-generation WiFi 7 tri-band connectivity covering 2.4GHz, 5GHz, and 6GHz bands
• Blazing-fast 10Gbps RJ45 Ethernet port to eliminate wired network bottlenecks
• 4x4 MIMO on 5GHz and 2x2 MIMO on 2.4GHz and 6GHz for maximum performance
• Supports up to 12.25Gbps total throughput across all three bands
• Built-in Deep Packet Inspection (DPI) engine for advanced domain and app filtering
• AltaPass multi-password technology to assign network permissions based on password
• Flexible 5GHz and 6GHz wireless mesh support for seamless coverage expansion
• One-Click Passpoint and AltaBoost carrier offload integration
• Intuitive cloud-based management platform and mobile application
• Supports over 500 concurrent client connections smoothly

Specifications

• Dimensions: 230x151.3x36.9mm
• Weight: 1.04kg
• Enclosure Material: Polycarbonate top cover, milled aluminium bottom cover
• Mounting Material: Steel (Wall, Ceiling, Drop-Ceiling, Table Top)
• Network Interface: 1x 10Gbps RJ45 Ethernet Port
• Management Interfaces: Ethernet, WiFi, Bluetooth
• Wi-Fi Standards: 802.11a/b/g/n/ac/ax/be (WiFi 7)
• MIMO Configuration: 2.4GHz (2x2), 5GHz (4x4), 6GHz (2x2)
• Max Physical Throughput: 2.4GHz up to 649Mbps, 5GHz up to 5.8Gbps, 6GHz up to 5.8Gbps
• Antenna Gain: 2.4GHz (4dBi), 5GHz (4.75dBi), 6GHz (4.5dBi)
• Power Method: PoE+ (for up to 2.5Gbps), PoE++ (for up to 10Gbps)
• Power Supply: PoE+ or PoE++ enabled network switch, or optional 48V 1.25A PoE adapter
• Max Power Consumption: 35W (Typical 12W)
• Supported Voltage Range: 42.5-57V DC
• Max Transmit Power: 2.4GHz & 5GHz (30dBm EIRP), 6GHz (25dBm EIRP)
• Wireless Security: WPA2-Personal, WPA3-Personal, WPA-Enterprise (WPA2/WPA3), WPA3-Enterprise 192-bit
• Operating Temperature: -30 to 50 C
• Operating Humidity: 5 to 95% non-condensing
• Certifications: CE, UK, FCC, IC

Warranty

1-Year Limited Warranty
