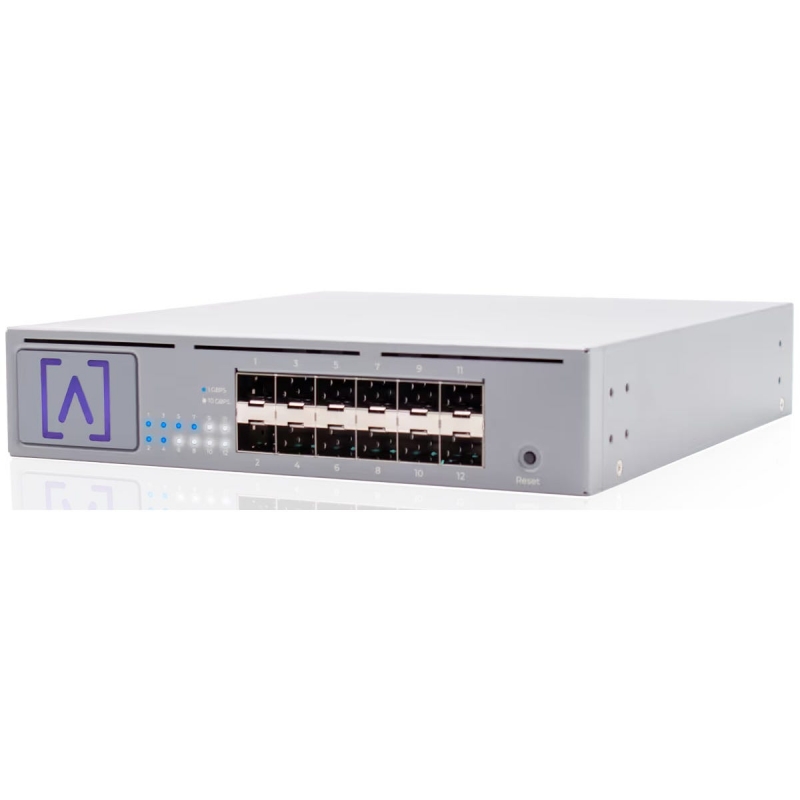

The Alta Labs S12 is a high-performance 12-port SFP+ distribution switch, expertly engineered for demanding enterprise and commercial deployments. It delivers exceptional, high-speed connectivity, making it the ideal solution for campuses, hotels, restaurants, and any environment requiring a robust, easy-to-use networking backbone. Its core function is to provide reliable, high-capacity fibre or copper connections to ensure your network runs at peak performance without bottlenecks.

Designed for ultimate flexibility, the S12 can be seamlessly integrated into any setup. The included versatile mounting hardware allows for easy installation in a standard 1U rack space or directly onto a wall. For high-density applications, an optional accessory bracket lets you mount two S12 units side-by-side in a single 1U rack space, optimising your server room layout. This adaptability makes it a superior choice for network administrators looking for both power and convenience.

Experience modern network management with the scalable, cloud-based platform and the Alta Networks mobile app. The S12 features integrated Bluetooth functionality that allows for effortless device setup and configuration right from your mobile device. Monitor and manage your networks from anywhere in the world with an intuitive interface, customisable dashboard, and advanced features like VLAN stacking, rate limiting, and 802.1X authentication, putting you in complete control of your network infrastructure.

FEATURES
12x 10Gbps SFP+ Ports for high-speed fibre or copper connections
Flexible mounting options for wall or 1U rack installation
Optional bracket to mount two S12 units in a single 1U space
Bluetooth setup for quick and easy deployment via mobile app
Scalable cloud-based management with the Alta Networks platform
Advanced Layer 2 features including VLAN stacking and IGMP Snooping
Egress and Ingress rate limiting for bandwidth control
802.1X authentication for enhanced network security
Network loop detection to prevent broadcast storms
SPECIFICATIONS
Ports: 12x SFP+
Supported Speeds: 1Gbps, 2.5Gbps, 5Gbps, 10Gbps
Switching Capacity: 240Gbps
Management: Alta Labs Cloud Management Platform, Mobile App
Setup: Bluetooth Enabled
Advanced Features: VLAN Stacking, 802.1X Authentication, IGMP Snooping, Rate Limiting, Network Loop Detection
Mounting: Rackmountable (1U single or dual), Wall-Mountable
Hardware: Rackstuds™ DUO toolless rackmount system included
WARRANTY

2-Year Limited Warranty
