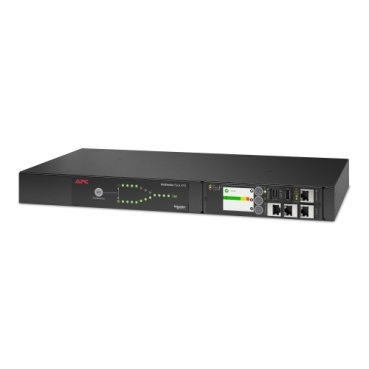

APC (AP4423A) RACK ATS, 230V, 16A,C20 IN,(8)C13 (1) C19 OUT
APC NetShelter Rack Automatic Transfer Switch (ATS) AP4423A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4423A is single phase 1U Rack ATS with 16A rated current, 230V rated voltage and 3700VA load capacity. It comes with 2 IEC C20 inlet and 8 IEC C13, 1 IEC C19 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
| Lead time | Usually in Stock |
|---|
| Main Input Voltage | 230 V AC 1 phase |
|---|---|
| Product or component type | Automatic transfer switch |
| Main Output Voltage | 230 V AC 1 phase |
| Input Connection Type | IEC 60320 C20 16 A 2P + E |
| Number of rack unit | 1U |
| Provided equipment | Mounting hardware Rack mounting brackets Serial configuration cable |
| Colour | Black |
|---|---|
| Height | 4.4 cm |
| Width | 43.2 cm |
| Depth | 23.6 cm |
| Product weight | 3.74 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Rack-mounted |
| Mounting position | Horizontal |
| Network frequency | 50/60 Hz |
|---|---|
| [In] rated current | 20 A |
| Permissible voltage | 207…253 V |
| Max line current | 20 A |
| Input current limits | 20 A |
| Load capacity | 3700 VA |
| Number of power socket outlets | 8 IEC 60320 C13 10 A 2P + E 1 IEC 60320 C19 16 A 2P + E |
|---|---|
| Number of power socket outlets | 9 |
| Protection type | Without circuit breaker |
| Power cable length | 2.44 m |
| Product certifications | CUL listed CE UL listed |
|---|---|
| Standards | EN 55022 class A FCC part 15 class A |
| Ambient air temperature for operation | -5…45 °C |
|---|---|
| Relative humidity | 5…95 % |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for storage | -25…65 °C |
| Storage Relative Humidity | 5…95 % |
| Storage altitude | 0…15240 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 12.000 cm |
| Package 1 Width | 35.500 cm |
| Package 1 Length | 60.000 cm |
| Package 1 Weight | 5.492 kg |
