Rack Ats G3 230V 16A C20 In (8) C13 (1) C19 Out AP4423A
SKU
395654
Brand
MPN
AP4423A
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$1,828.00
Buy Now And Earn 1828 Reward Points!

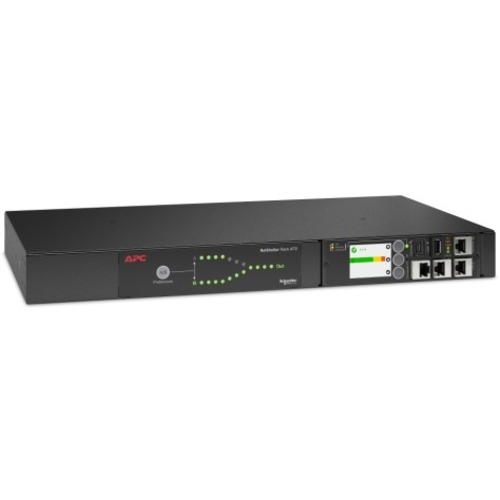

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4423A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4423A is single phase 1U Rack ATS with 16A rated current, 230V rated voltage and 3700VA load capacity. It comes with 2 IEC C20 inlet and 8 IEC C13, 1 IEC C19 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
| Product Type | Automatic Transfer Switch |
| Brand Name | APC |
| Product Color | Black |
| Manufacturer Part Number | AP4423A |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Name | NetShelter Automatic Transfer Switch |
| Product Line | NetShelter |
| For Country/Region | United States |
| SCIP Number | 2596f23e-8f37-45ab-8e70-ca58eb98cd8c |
| Product Take Back Program | No |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP4423A_ROHS_DECLARATION&p_FileName=AP4423AKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://download.schneider-electric.com/files?p_Doc_Ref=AP4423A_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability) |
| EU RoHS Declaration URL | https://download.schneider-electric.com/files?p_Doc_Ref=AP4423A_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability) |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP1712015EN&p_File_name=ENVPEP1712015_EN.pdf |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_Doc_Ref=ENVEOLI1712015_EN&p_File_name=ENVEOLI1712015_EN.pdf |
| REACH free of SVHC | No |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Single-use Plastic (SUP) Free Shipping Packaging | No |
| Sustainable Packaging | No |
| Reach Compliance Date | 12/10/2025 |
| Halogen Content Performance | Product contains halogen above thresholds |
| Product Contributes Saved Avoided Emissions | No |
| Minimum Percentage of Recycled Metal Content | 0 |
| Weight (Approximate) | 3.74 kg |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 44 mm |
| Width | 432 mm |
| Depth | 236 mm |
| Color Family | Black |
| Mounting Location | Front |
| Mounting Preference | No Preference, Horizontal |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Current | 16 A |
| Receptacles | 8 x IEC 60320 C13, 1 x IEC 60320 C19 |
| Shipping Dimensions | Height 11.5, Width 36, Length 60, Shipping Weight 5.54 KG |
Rack ATS G3 230V 16A C20 in (8) C13 (1) C19 out
