APC Netshelter Rack Automatic Transfer Switch, 2U, 32A, 230V, 2 Iec 309 In, 16 C13, 2 C19 Out, 50/60 Hz AP4424A
SKU
395655
Brand
MPN
AP4424A
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$2,102.00
Buy Now And Earn 2102 Reward Points!

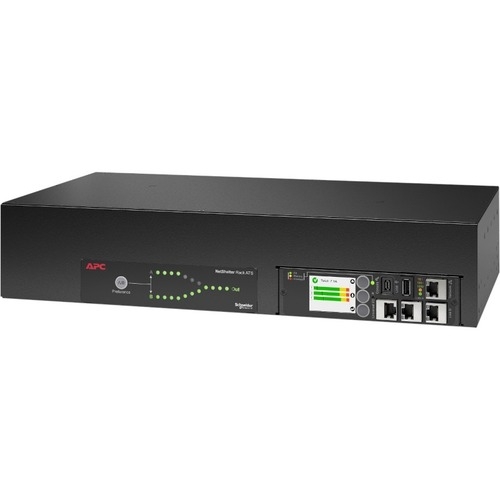

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4424A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4424A is single phase 2U Rack ATS with 32A rated current, 230V rated voltage and 7400VA load capacity. It comes with inbuilt circuit breaker protection, 2 IEC 309 inlet and 16 IEC C13, 2 IEC C19 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
| Product Type | Automatic Transfer Switch |
| Brand Name | APC |
| Product Color | Black |
| Manufacturer Part Number | AP4424A |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Name | NetShelter Automatic Transfer Switch |
| Product Line | NetShelter |
| For Country/Region | United States |
| SCIP Number | 2596f23e-8f37-45ab-8e70-ca58eb98cd8c |
| Product Take Back Program | No |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP4424A_ROHS_DECLARATION&p_FileName=AP4424AKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://download.schneider-electric.com/files?p_Doc_Ref=AP4424A_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability) |
| EU RoHS Declaration URL | https://download.schneider-electric.com/files?p_Doc_Ref=AP4424A_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability) |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP1712015EN&p_File_name=ENVPEP1712015_EN.pdf |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_Doc_Ref=ENVEOLI1712015_EN&p_File_name=ENVEOLI1712015_EN.pdf |
| REACH free of SVHC | No |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Single-use Plastic (SUP) Free Shipping Packaging | No |
| Sustainable Packaging | No |
| Reach Compliance Date | 12/10/2025 |
| Halogen Content Performance | Product contains halogen above thresholds |
| Weight (Approximate) | 6.94 kg |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 88 mm |
| Width | 432 mm |
| Depth | 236 mm |
| Color Family | Black |
| Mounting Location | Front, Rear |
| Mounting Preference | No Preference, Horizontal |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Current | 32 A |
| Receptacles | 2 x IEC 60320 C19, 16 x IEC 60320 C13 |
| Cord Length | 2429.26 mm |
| Shipping Dimensions | Height 21, Width 36, Length 59, Shipping Weight 9.74 KG |
APC Netshelter Rack Automatic Transfer Switch, 2U, 32A, 230V, 2 IEC 309 IN, 16 C13, 2 C19 OUT, 50/60 Hz
