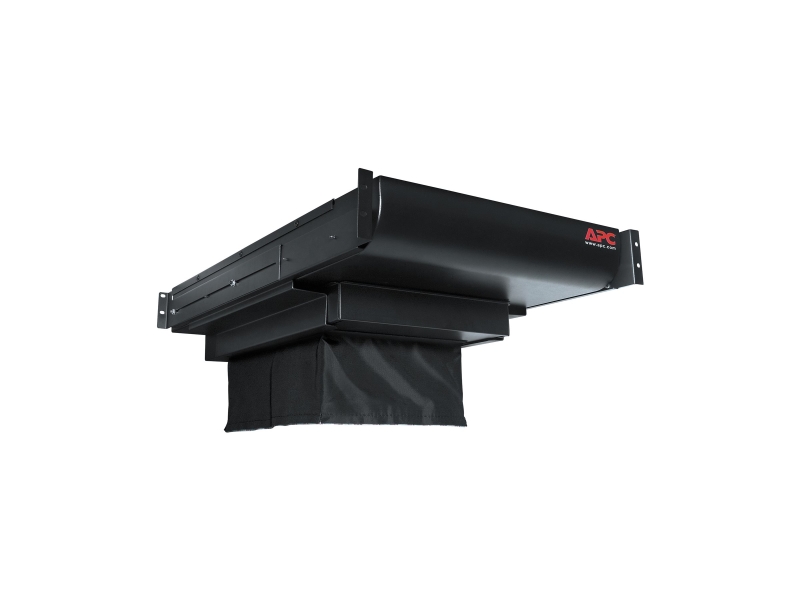

ACF002 Features
Mounting rails Adjustable depth allows the unit to fit APC NetShelter enclosures or other 19" EIA-310-D enclosures.
Fan control switches Users can turn one or both fans on and off depending on the heat load.
Fan guards A safety measure that provides protection from the fan opening by covering the inlet.
Dual fans Provides fault tolerance in the event of a fan failure.
Promotes Proper Airflow Helps to maintain proper rack temperatures within the enclosure by promoting top to bottom airflow movement.
Dual A-B Power Inputs Draws power from the UPS for power protection with dual feeds for redundancy.
Rack Air Distribution Features & Benefits
Availability
Increases Airflow Provides proper intake temperatures, increasing equipment life.
Agility
Easy to install Innovative design allows for fast, easy installation by almost anybody.
General
Air Flow 198.22 lps
Input
Number of Power Cords 2
Nominal Input Voltage 208, 230
Input Power 230 Watts
Input Frequency 50/60 Hz
Rack Height 2U
Input Connections
C-13
IEC-320 C14
Physical
Maximum Height 89.00 mm
Maximum Width 422.00 mm
Maximum Depth 737.00 mm
Net Weight 18.64 KG
Shipping Weight 26.82 KG
Shipping Height 254.00 mm
Shipping Width 838.00 mm
Shipping Depth 838.00 mm
Color Black
Environmental
Audible noise at 1 meter from surface of unit 70.00 dBA
Conformance
Regulatory Approvals CE, UL Recognized
Standard Warranty 2 years repair or replace
Sustainable Offer Status
Other Environmental Compliance China RoHS
