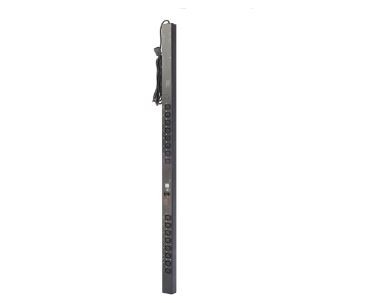

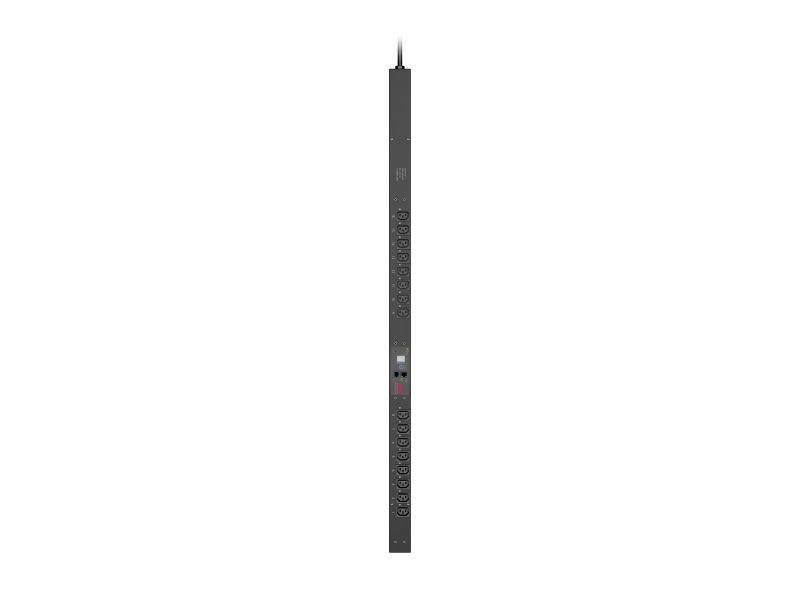

Apc (ap7950b) Rack Pdu, Switched, Zero U, 10a, 230v, (16) C13 Ap7950b
Overview
The APC by Schneider Electric Switched Rack Power Distribution Unit (PDU) distributes power
to devices in the rack. It has a sensor that measures the current used by the PDU and its
attached devices. It can be monitored through Web, Telnet, SNMP, SSH, or StruxureWare Data
Center Expert® interfaces.
Outlets: The outlets connect the Rack PDU to equipment in your rack or enclosure. Each outlet
allows independent control of the connected equipment and the Rack PDU firmware also
provides Outlet User accounts. Sixteen (16) IEC 320 C13 outlets.
Digital display: A digital display shows aggregate current being used by the Rack PDU and its
attached devices.
Power cord: The 10 ft (3.05 m) power cord terminates with a IEC 320-C14 connector.
Specifications
Electrical
Nominal input voltage 230 V
Acceptable input voltage ± 10% Nominal input voltage
Maximum total current
draw
32 A
Input frequency 50 - 60 Hz
Cord length 10 ft (3.05 m)
Input connector IEC-320-C14
Output connectors Sixteen IEC 320 C13 outlets
Physical
Size (H × W × D)
Shipping (H x W x D)
124.46 × 5.56 × 4.39 cm (49.00 × 2.19 × 1.73 in)
213.36 × 15.24 × 12.7 cm (84.00 × 6.00 × 5.00 in)
Weight 9.5 lb (4.3 kg)
Shipping weight 11.5 lb (5.2 kg)
Environmental
Elevation (above MSL)
Operating
Storage
0–15 000 ft (0–4500 m)
0–50 000 ft (0–15 000 m)
Temperature
Operating
Storage
–5 to 45° C (23 to 115° F)
–25 to 65° C (–13 to 149° F)
Humidity
Operating
Storage
5–95% RH, Non-condensing
5–95% RH, Non-condensing
Compliance
Safety VDE, CE, EAC
EMC EN55022, EN55024, AS/NZS CISPR 22
