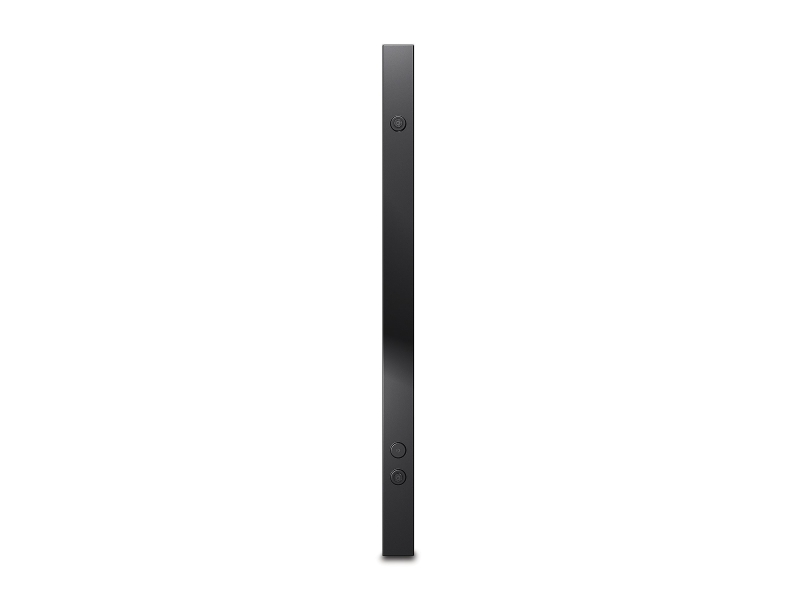

Metered Rack PDU Features & Benefits
Availability
Remote Management Capabilities Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
Local Current Monitoring Display The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)
Alarm Thresholds Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)
Load indicator LED Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
Integrates with StruxureWare Data Center Expert An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
Flash Upgradeable Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)
Agility
Rack-Mountable Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Single input power source Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connections Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Output
Nominal Output Voltage 100V, 200V, 208V, 230V
Maximum Total Current Draw per Phase 16A
Output Connections
(18) IEC 320 C13 IEC 320 C13
(2) IEC 320 C19 IEC 320 C19
Overload Protection No
Input
Nominal Input Voltage 200V, 208V, 230V
Input Frequency 50/60 Hz
Regulatory Derated Input Current (North America) 16A
Input Connections
IEC-320 C20
Acceptable Input Voltage 100-240 VAC
Maximum Input Current per phase 20A
Physical
Net Weight 2.93 KG
Maximum Height 902.00 mm
Maximum Width 56.00 mm
Maximum Depth 44.00 mm
Shipping Weight 4.20 KG
Shipping Height 1124.00 mm
Shipping Width 162.00 mm
Shipping Depth 107.00 mm
Color Black
Environmental
Operating Environment -5 - 45 ?C
Operating Relative Humidity 5 - 95%
Operating Elevation 0-3000 meters
Storage Temperature -25 - 65 ?C
Storage Relative Humidity 5 - 95%
Storage Elevation 0-15000 meters
Conformance
Regulatory Approvals CSA C22.2 No. 60950, IEC 60950, METI Denan, UL 60950-1, VDE
Standard Warranty 2 years repair or replace
Sustainable Offer Status
RoHS Compliant
REACH REACH: Contains No SVHCs
PEP Available in Documentation tab
EOLI Available in Documentation tab
Battery Directive Compliant
Battery Notes Contains Lithium Coin Cell
