Apc (ar8207blk) Wall Mount Fan Tray (wx Only) 230v Ar8207blk

SKU
229304
Brand
MPN
AR8207BLK
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$493.00
Buy Now And Earn 493 Reward Points!

AR8207BLKFeatures

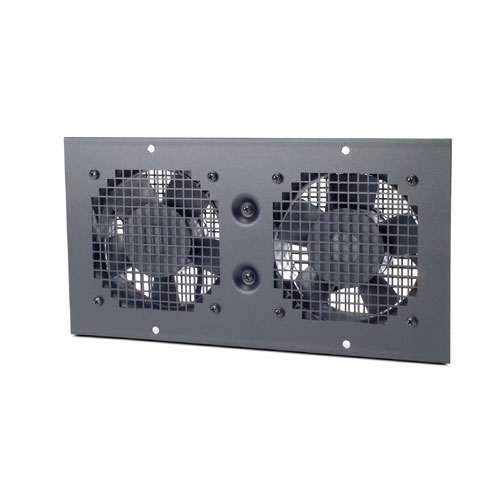

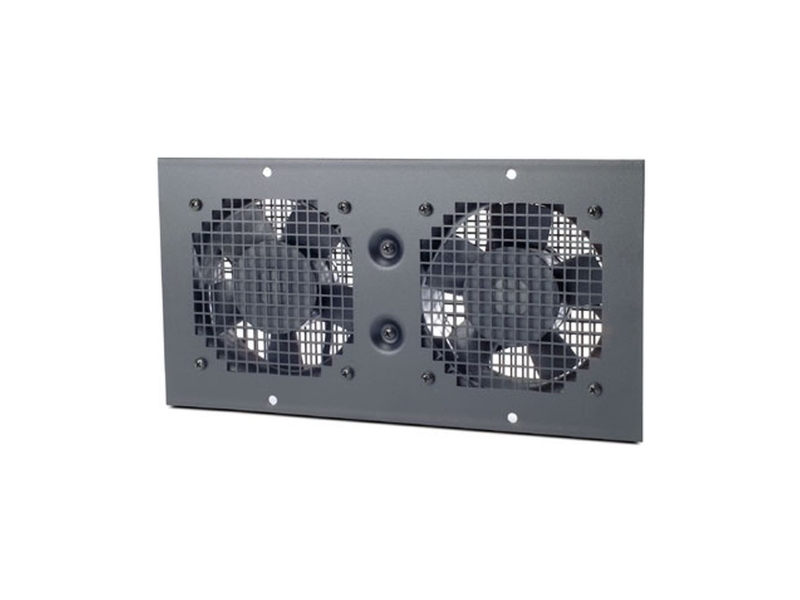

Roof Fan Tray 208/230V 50/60HZ for NetShelter WX Enclosures

The Rack Fan Tray is a low cost solution that aids in heat removal from a Netshelter Enclosure. The system easily installs into the top of the enclosure and expels heat from the roof of the rack. Wall-mounted enclosures have the additional option of installing the rack fan tray systems in the base of the rack as well. The fan trays are designed to promote bottom to top airflow within the enclosure.

Includes : Installation Guide , Qty 1 - IEC to IEC 320 Power Cord

  • Fan guards
    A safety measure that provides protection from the fan opening by covering the inlet.
  • Occupies 1U of rack space
    Conserve valuable rack space in the data center.

Rack Air DistributionFeatures & Benefits

Agility
  • Easy to install
    Innovative design allows for fast, easy installation by almost anybody.
Availability
  • Increases Airflow
    Provides proper intake temperatures, increasing equipment life.
Product Distribution

Andorra , United Arab Emirates , Afghanistan , Antigua and Barbuda , Anguilla , Albania , Armenia , Netherlands Antilles , Angola , Argentina , Austria , Australia , Aruba , Azerbaijan , Bosnia and Herzegovina , Barbados , Bangladesh , Belgium , Burkina Faso , Bulgaria , Bahrain , Burundi , Benin , Brunei , Bolivia , Brazil , Bhutan , Botswana , Belarus , Belize , Canada , The Democratic Republic Of Congo , Central African Republic , Congo , Switzerland , Côte d'Ivoire , Cook Islands , Chile , Cameroon , China , Colombia , Costa Rica , Serbia and Montenegro , Cuba , Cyprus , Czech Republic , Germany , Djibouti , Denmark , Dominican Republic , Algeria , Ecuador , Estonia , Egypt , Western Sahara , Eritrea , Spain , Ethiopia , Finland , Fiji , Falkland Islands , France , Gabon , United Kingdom , Georgia , Ghana , Gibraltar , Gambia , Guinea , Equatorial Guinea , Greece , Guatemala , Guyana , Hong Kong , Honduras , Croatia , Hungary , Indonesia , Ireland , Israel , India , Iraq , Iran , Iceland , Italy , Jamaica , Jordan , Kenya , Cambodia , South Korea , Kuwait , Cayman Islands , Kazakhstan , Lebanon , Liechtenstein , Sri Lanka , Liberia , Lesotho , Lithuania , Luxembourg , Latvia , Morocco , Moldova , Macedonia , Mali , Myanmar , Mongolia , Mauritania , Malta , Malawi , Mexico , Malaysia , Mozambique , Namibia , Niger , Nigeria , Nicaragua , Netherlands , Norway , Nepal , New Zealand , Oman , Panama , Peru , Papua New Guinea , Philippines , Pakistan , Poland , Puerto Rico , Portugal , Paraguay , Romania , Russia , Rwanda , Saudi Arabia , Sudan , Sweden , Singapore , Slovenia , Slovakia , Sierra Leone , Senegal , Somalia , Suriname , El Salvador , Chad , Togo , Thailand , Tajikistan , Turkmenistan , Tunisia , TP , Turkey , Trinidad and Tobago , Taiwan , Tanzania , Ukraine , Uganda , United States , Uruguay , Uzbekistan , Venezuela , U.S. Virgin Islands , Vietnam , Yemen , South Africa , Zambia , Zimbabwe

Input

  • Nominal Input Voltage
    208V , 230V
  • Input frequency
    50/60 Hz
  • Input Connections
    British BS1363A, IEC-320 C14, Schuko CEE 7/7P
  • Number of Power Cords
    3

Physical

  • Maximum Height
    54mm , 5.4cm
  • Maximum Width
    318mm , 31.8cm
  • Maximum Depth
    175mm , 17.5cm
  • Net Weight
    1.82kg
  • Shipping weight
    2.73kg
  • Shipping Height
    58mm , 5.8cm
  • Shipping Width
    320mm , 32.0cm
  • Shipping Depth
    234mm , 23.4cm
  • Color
    Black

Conformance

  • Approvals
    CSA, UL Listed
  • Standard warranty
    2 years repair or replace

Sustainable Offer Status

  • PEP
    Available in Documentation tab
  • EOLI
    Available in Documentation tab
