Output
Output Power Capacity 210 Watts / 350 VA
Max Configurable Power 210 Watts / 350 VA
Nominal Output Voltage 230V
Output Frequency (sync to mains) 47 - 63 Hz
Topology Standby

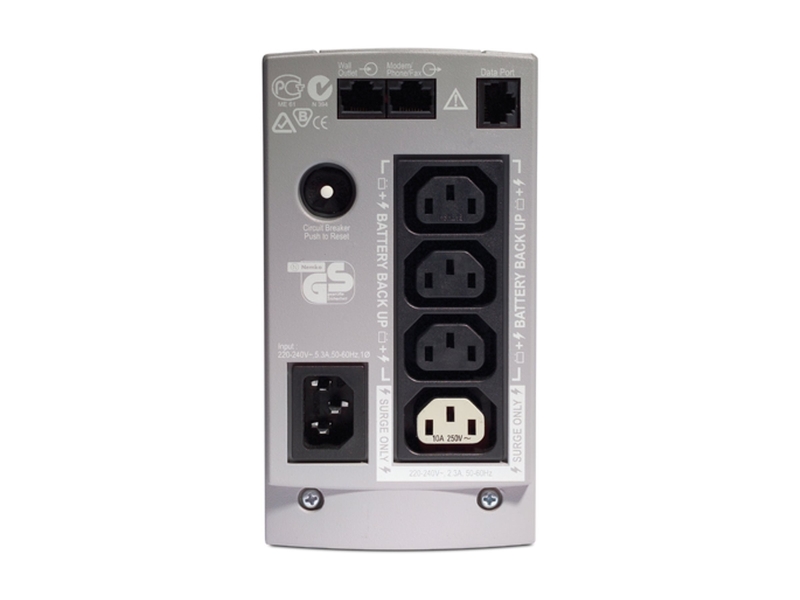

Output Connections
(1) IEC 320 C13 (Surge Protection)
(3) IEC 320 C13 (Battery Backup)
(2) IEC Jumpers (Battery Backup)
Input
Nominal Input Voltage 230V
Input Frequency 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
IEC-320-C14 inlet
Cord Length 1.83 meters
Input voltage range for main operations 180 - 266V
Maximum Input Current 7A
Input Breaker Capacity 7.0 A
Communications & Management
Interface Port(s) USB
Control panel LED status display with On Line : On Battery : Replace Battery and Overload indicators
Audible Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating 310 Joules
Filtering Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Data Line Protection Analog phone line for phone/fax/modem/DSL (RJ-45 connector)
Physical
Maximum Height 165.00 mm
Maximum Width 91.00 mm
Maximum Depth 284.00 mm
Net Weight 6.32 KG
Shipping Weight 7.05 KG
Shipping Height 178.00 mm
Shipping Width 241.00 mm
Shipping Depth 368.00 mm
Master Carton Units 2.00
Color Beige
SCC Codes 1073130401634 9
Units per Pallet 48.00
Environmental
Operating Environment 0 - 40 ?C
Operating Relative Humidity 0 - 95%
Operating Elevation 0-3000 meters
Storage Temperature -15 - 45 ?C
Storage Relative Humidity 0 - 95%
Storage Elevation 0-15000 meters
Online Thermal Dissipation 19.00 BTU/hr
Conformance
Regulatory Approvals C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE
Standard Warranty 2 years repair or replace
Sustainable Offer Status
RoHS Compliant
