Output
Output Power Capacity 400 Watts / 650 VA
Max Configurable Power 400 Watts / 650 VA
Nominal Output Voltage 230V
Topology Standby

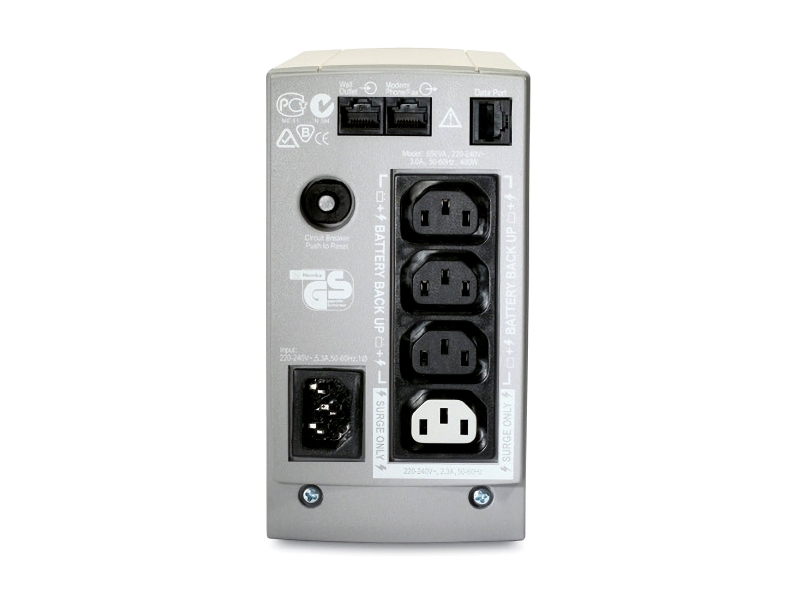

Output Connections
(1) IEC 320 C13 (Surge Protection)
(3) IEC 320 C13 (Battery Backup)
Input
Nominal Input Voltage 230V
Input Frequency 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
IEC-320 C14
Cord Length 1.83 meters
Input voltage range for main operations 180 - 260V
Input voltage adjustable range for mains operation 160 - 282V
Communications & Management
Interface Port(s) USB
Control panel LED status display with On Line : On Battery : Replace Battery and Overload indicators
Audible Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating 320 Joules
Data Line Protection Analog phone line for phone/fax/modem/DSL (RJ-45 connector)
Physical
Maximum Height 165.00 mm
Maximum Width 91.00 mm
Maximum Depth 284.00 mm
Net Weight 6.04 KG
Shipping Weight 7.32 KG
Shipping Height 494.00 mm
Shipping Width 185.00 mm
Shipping Depth 415.00 mm
Master Carton Units 2.00
Master Carton Weight 16.09 lbs.
Color Beige
SCC Codes 1073130422443 0
Units per Pallet 48.00
Environmental
Operating Environment 0 - 40 ?C
Operating Relative Humidity 5 - 95%
Operating Elevation 0-9000 meters
Storage Temperature -15 - 45 ?C
Storage Relative Humidity 5 - 95%
Storage Elevation 0-4500 meters
Audible noise at 1 meter from surface of unit 45.00 dBA
Conformance
Regulatory Approvals A-tick, C-tick, CE, GOST, NEMKO
Standard Warranty 2 years repair or replace
