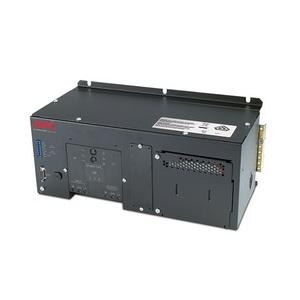

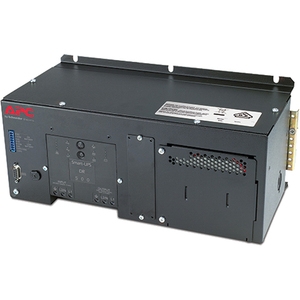

APC DIN Rail - Panel Mount UPS with High Temp Battery 500VA 230V Sua500Pdri-H

Rated /5 based on customer reviews

SKU: 284618

Brand: APC

Manufacturer Link

MPN: SUA500PDRI-H

Manufacturer Product Link

Warranty: 1 Year Manufacturer's return to base

Availability: Preorder 2-3 weeks

Freight Estimate:

$1,064.00
Buy Now And Earn Reward Points!
Qty:
Untitled 1

SUA500PDRI-H Features

APC DIN Rail - Panel Mount UPS with High Temp Battery 500VA 230V
Proven Industrial UPS power protection for control applications and harsh environments.
Includes: CD with software, Documentation CD, Installation guide, Smart UPS signalling RS-232 cable
  • User-replaceable batteries
    Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Industrial UPS Features & Benefits

Availability

Wide input voltage range
Designed for harsh electrical environments to save battery life.
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Cold-start capable
Provides temporary battery power when the utility power is out.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.

Manageability

Optional Dry Contact I/O Accessory
Each Dry Contact I/O Accessory increases the number of input contacts by 2 and output relays by 1
SmartSlot
Customize UPS capabilities with management cards.
LED Indicators
Provide easy-to-read status of the unit and utility power conditions.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

Serviceability

User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Technical support
Our experienced technical support engineers are available to answer your questions, giving you peace of mind knowing the help you need is there when you need it.

Adaptability

Plug-and-Play external batteries
Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
Multiple mounting methods
Allows for standardization on one product for use in different environments.
Flexible Design
Available in a wide range of configurations to suit any operating environment

Product Distribution

Andorra, Antigua and Barbuda, Anguilla, Albania, Armenia, Netherlands Antilles, Argentina, Austria, Australia, Aruba, Azerbaijan, Bosnia and Herzegovina, Barbados, Belgium, Bulgaria, Bermuda, Bolivia, Brazil, Bahamas, Belarus, Belize, Canada, Switzerland, Chile, Colombia, Costa Rica, Serbia and Montenegro, Cuba, Cyprus, Czech Republic, Germany, Denmark, Dominica, Dominican Republic, Ecuador, Estonia, Spain, Finland, Falkland Islands, France, United Kingdom, Grenada, Georgia, Greece, Guatemala, Guyana, Honduras, Croatia, Haiti, Hungary, Indonesia, Ireland, Iceland, Italy, Jamaica, Cambodia, Saint Kitts And Nevis, Cayman Islands, Saint Lucia, Liechtenstein, Lithuania, Luxembourg, Latvia, Moldova, Macedonia, Myanmar, Malta, Mexico, Malaysia, Nicaragua, Netherlands, Norway, Nepal, New Zealand, Panama, Peru, Philippines, Poland, Puerto Rico, Portugal, Paraguay, Romania, Russia, Sweden, Singapore, Slovenia, Slovakia, El Salvador, Turks And Caicos Islands, Thailand, Turkey, Trinidad and Tobago, Ukraine, United States, Uruguay, Saint Vincent And The Grenadines, Venezuela, U.S. Virgin Islands, Vietnam
Untitled 1
Basic
Backup/Run Time (Full Load): 8 Minute
Backup/Run Time (Half Load): 24 Minute
Brand Name: APC by Schneider Electric
Form Factor: Panel Mount
Wall Mountable
Hot Swappable: Yes
Load Capacity (VA): 500 VA
Load Capacity (Watt): 325 W
Product Type: Line-interactive UPS
Battery Information
Backup/Run Time (Full Load): 8 Minute
Backup/Run Time (Half Load): 24 Minute
Battery Characteristics: Spill-proof, Maintenance-free
Battery Chemistry: Sealed Lead Acid (SLA)
Hot Swappable: Yes
Number of Batteries: 1
Typical Battery Recharge Time: 2.50 Hour
Controls/Indicators
Status Indicators:
  • On Line
  • On Battery
  • Replace Battery
  • Overload
Environmental Conditions
Maximum Operating Temperature: 40°C
Sound Emission: 55 dB(A)
Thermal Dissipation: 90 BTU/h
General Information
Brand Name: APC by Schneider Electric
Manufacturer Part Number: SUA500PDRI-H
Manufacturer Website Address: http://www.schneider-electric.com.au
Manufacturer: Schneider Electric SA
Product Name: DIN Rail - Panel Mount UPS with High Temp Battery 500VA 230V
Product Type: Line-interactive UPS
Interfaces/Ports
Serial Port: Yes
Total Number of Expansion Slots: 1
Management
Alarm: Low Battery
On Battery
Overload
Physical Characteristics
Depth: 171 mm
Form Factor: Panel Mount
Wall Mountable
Height: 148 mm
Weight (Approximate): 12.86 kg
Width: 362 mm
Power Description
Load Capacity: 500 VA/325 W
Output Voltage: 230 V AC
Technical Information
Dataline Protection: DB-9
RS-232
Emergency Power OFF: Yes
Marketing TextDuring a power event, whether the requirement is safe shutdown or maintaining data integrity, the APC solution provides reliable protection.
PI DateMar 2014
Brand NameAPC
Manufacturer Web Sitehttp://www.apc.com
Product TypeUninterruptible Power Supply
TypeSealed Lead Acid
Input Connection1 x Hard Wire 3-Wire
Output Connection1 x Hard Wire 3-Wire
SmartSlotYes
Input Voltage230Volt
Output Power325Watt
Output Voltage230Volt
Surge Energy Rating540Joules
Depth (mm)171.0
Height (mm)148.0
Width (mm)362.0
Weight (Kg)12.9
Other Features* Plug-and-Play external batteries
* Power conditioning
* Automatic self-test
* LED Indicators
Control Panel* LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
Audible Alarm* Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Operating Temperature0 - 40°C
Environmental ComplianceRoHS
